Transmission

Crites engine mounts come with these trans. crossmember extend brackets. But I don’t think I need them. I believe I can’t just flip the factory crossmember around

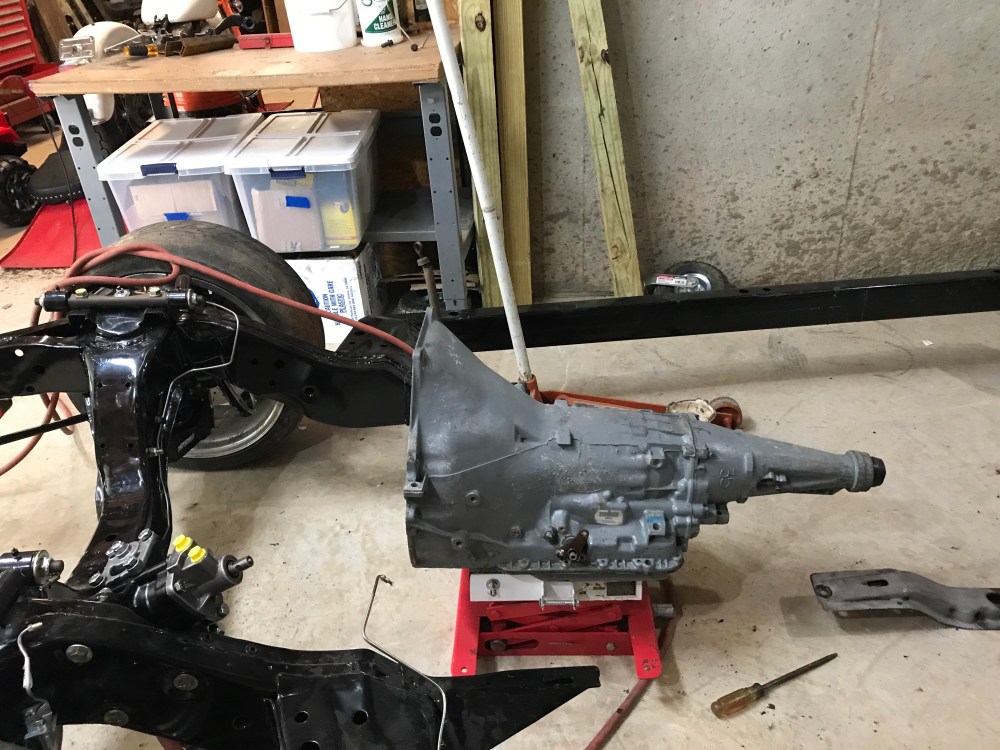

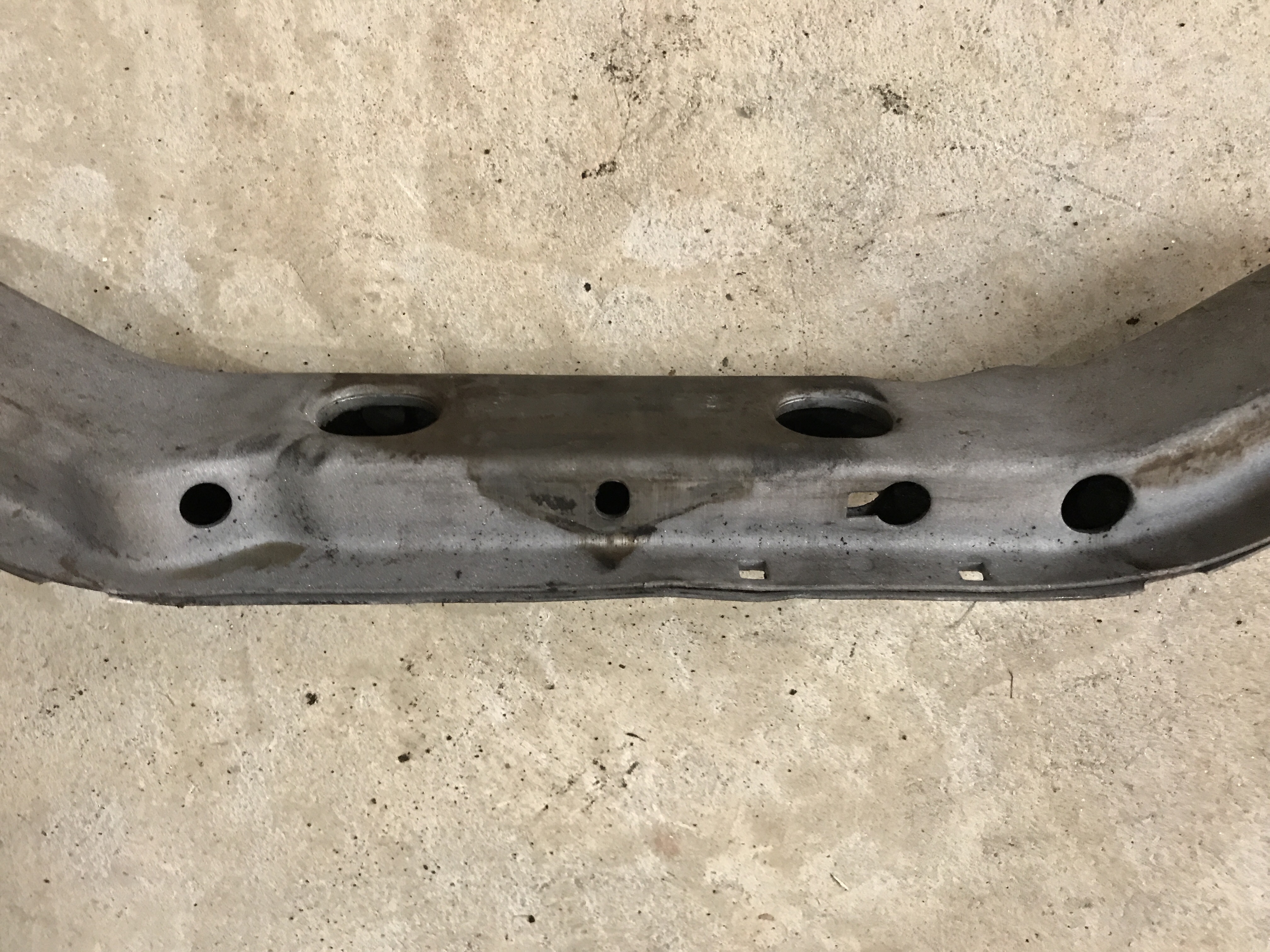

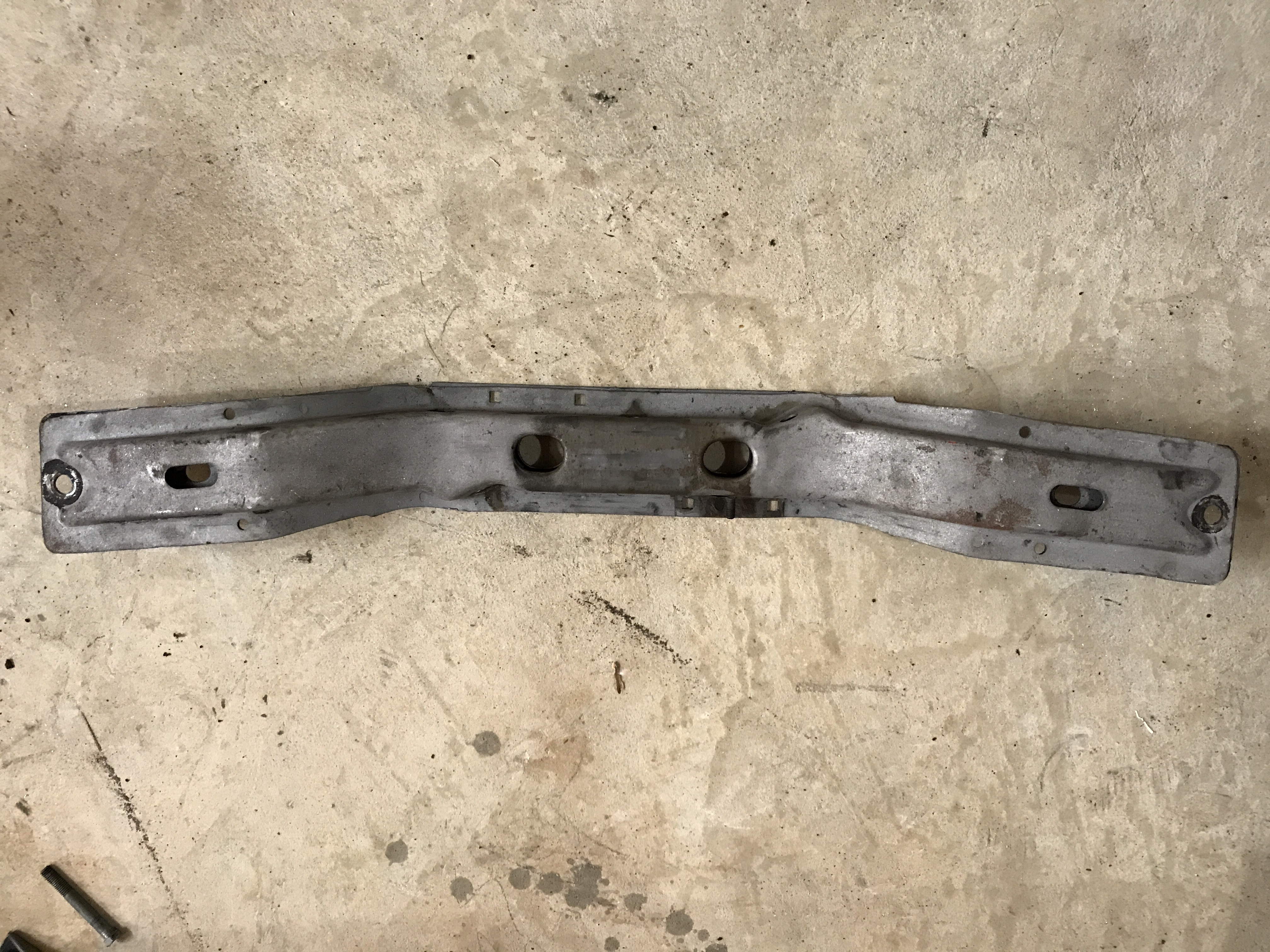

The factory trans. crossmember is arched so flipping it gives you a few more inches which you need (the 460 & c6 trans sets back further)

There’s identical holes on each side to support using the the parking brake cable when flipped either direction

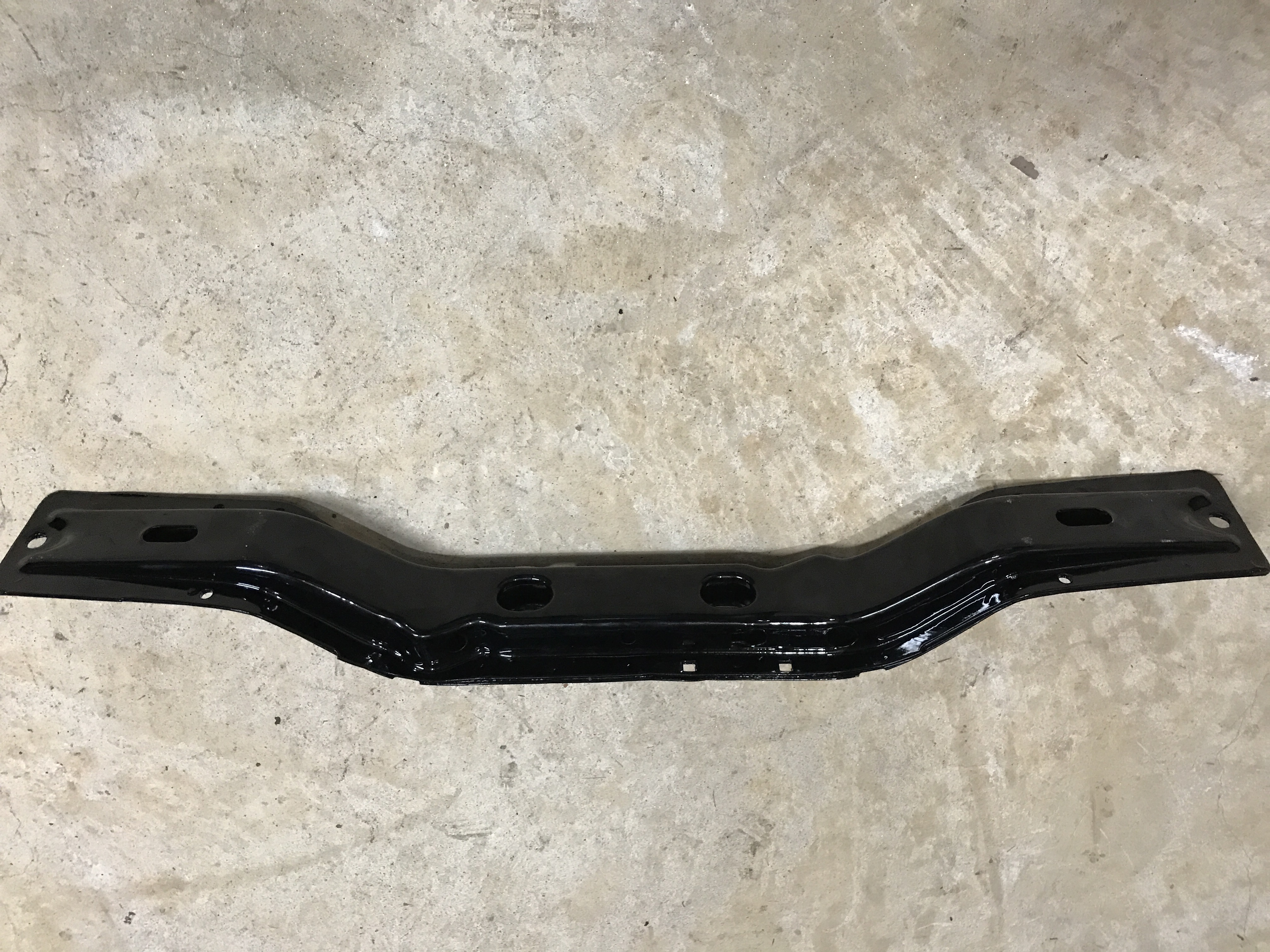

Powder coated now

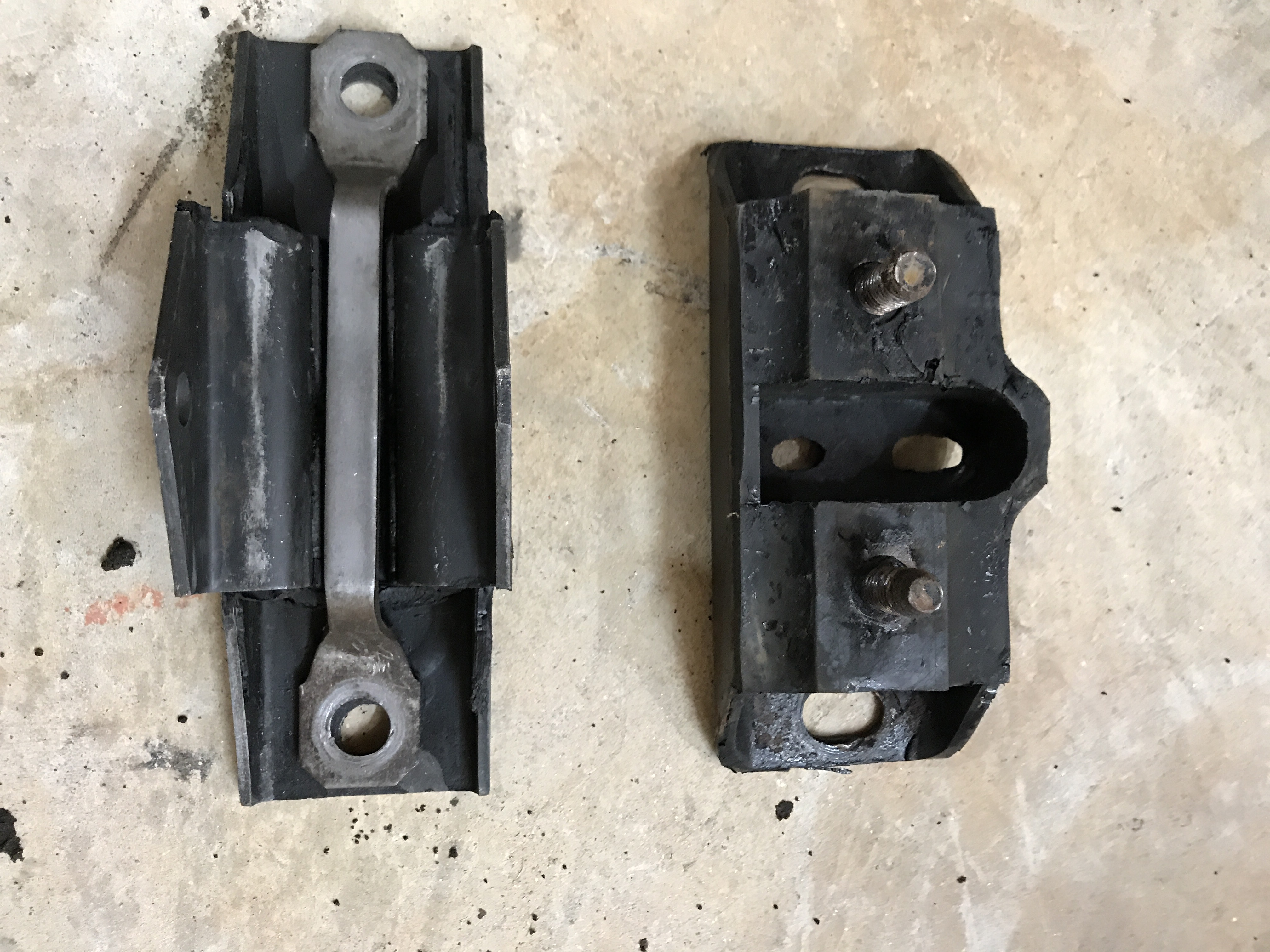

Cruise-O-Matic mount on left & C6 on right

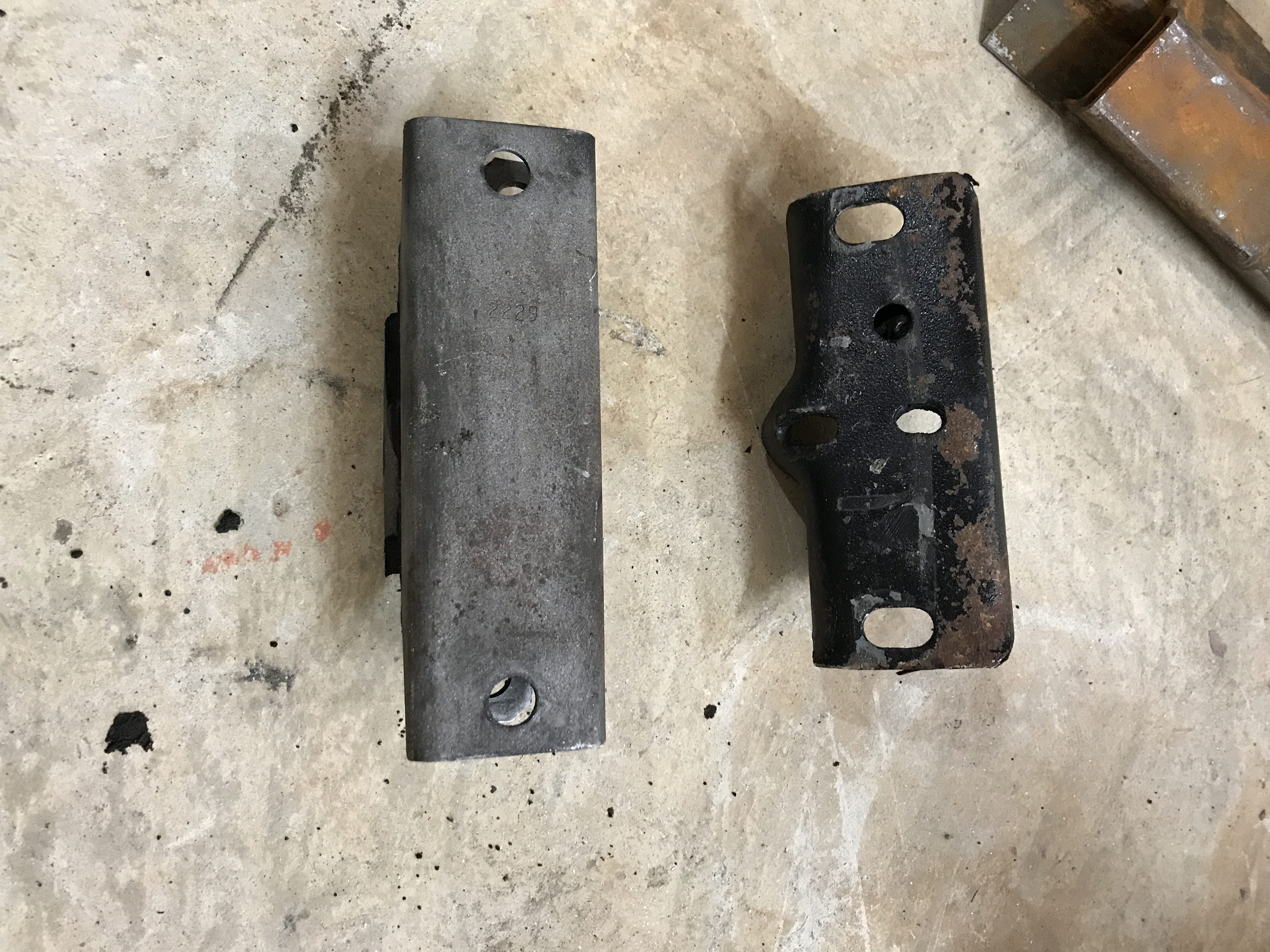

C6 holes are closer together

Will use Cruise-O-Matic mount & drill new narrower holes

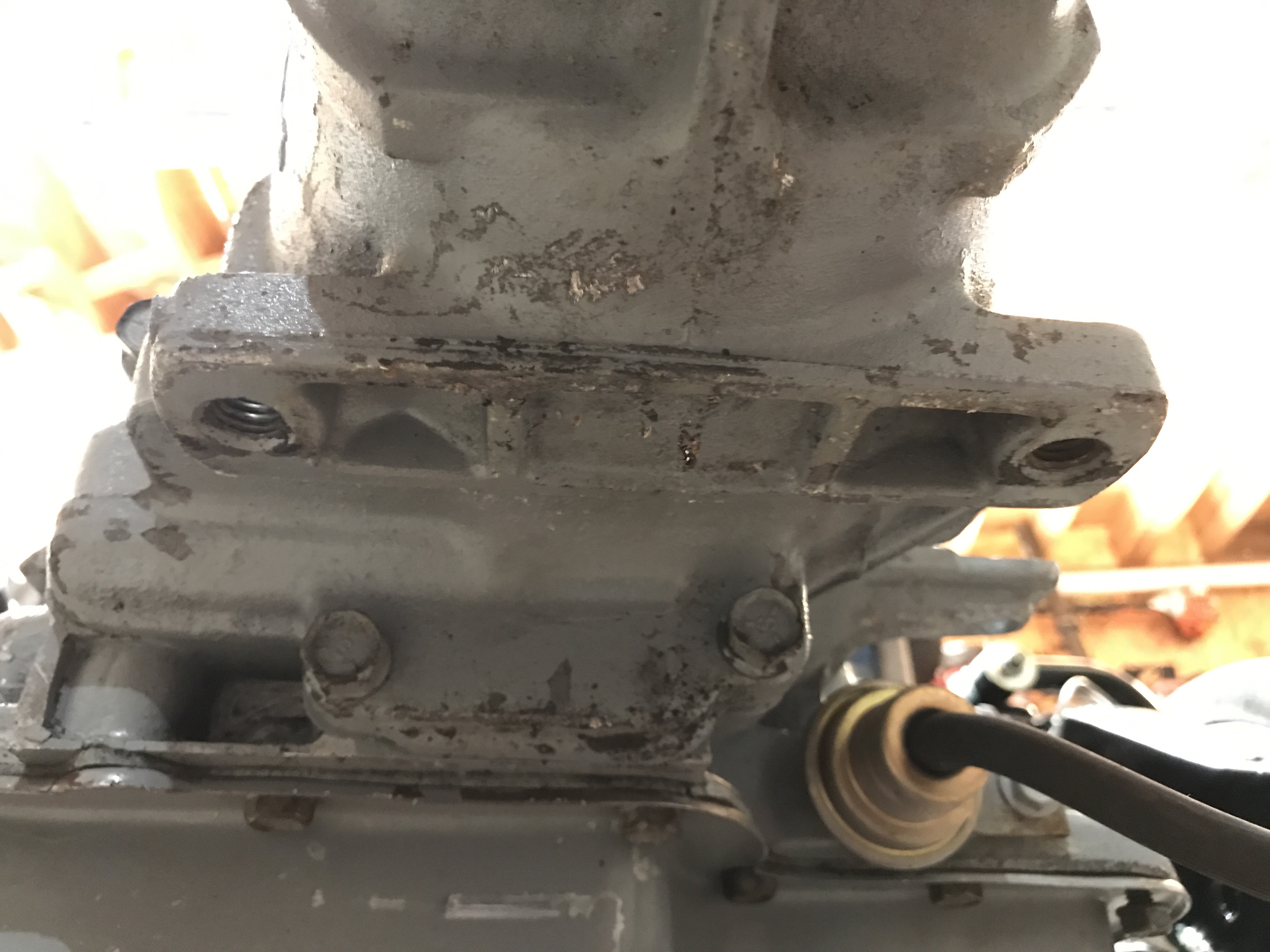

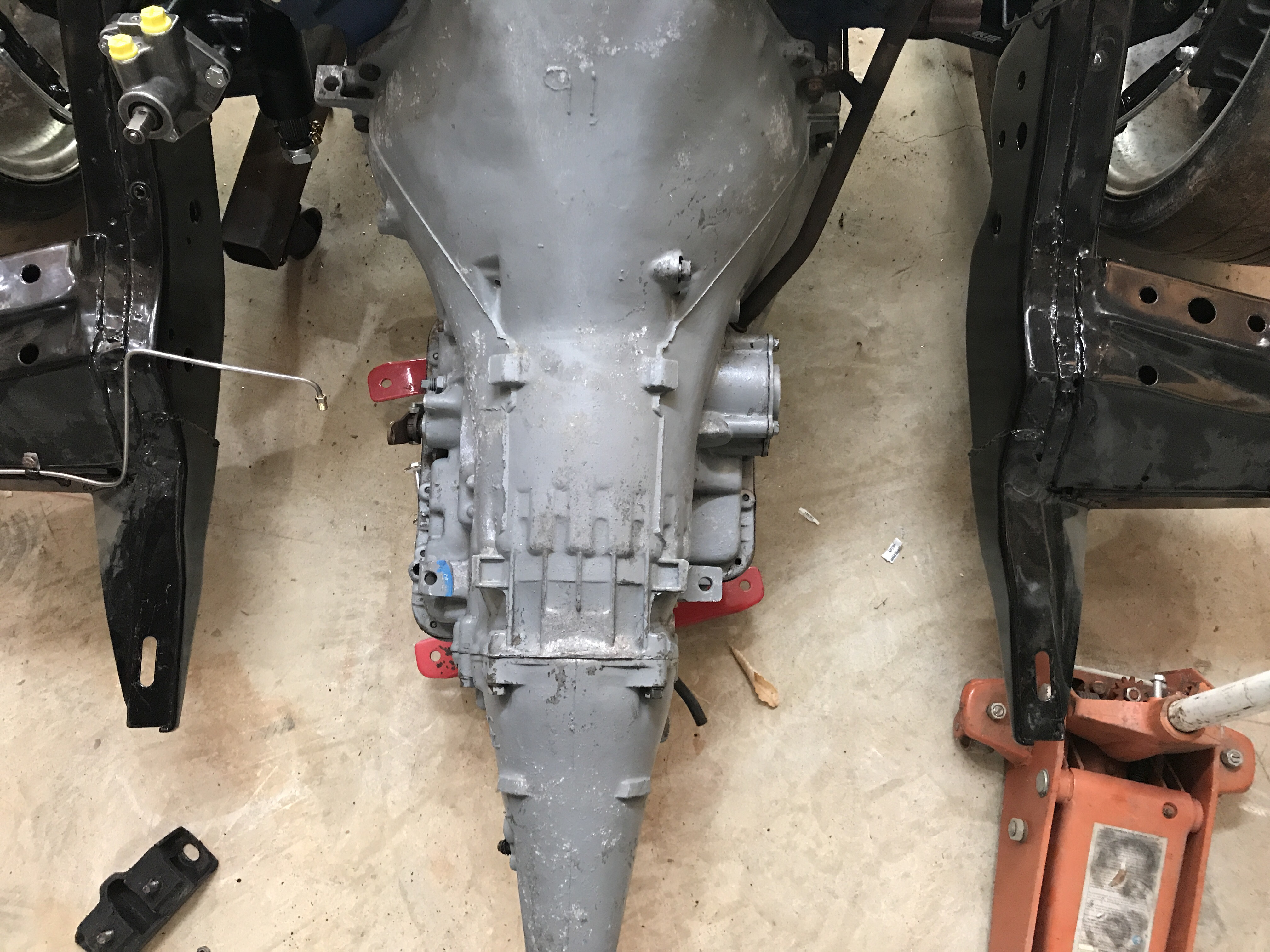

Underside of the C6 trans where the mount bolts

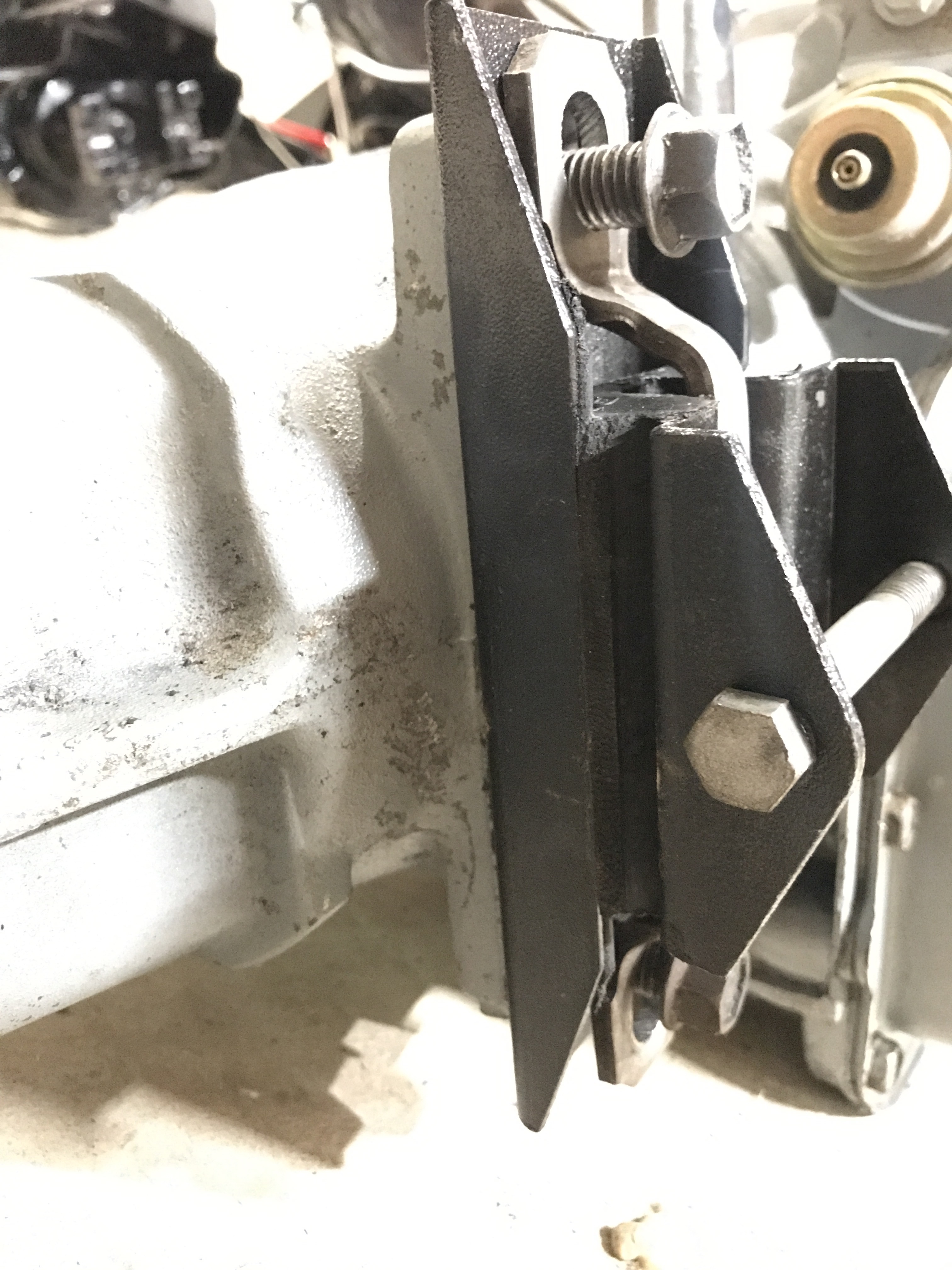

I was able to oblong the C4 mount holes to fit the C6

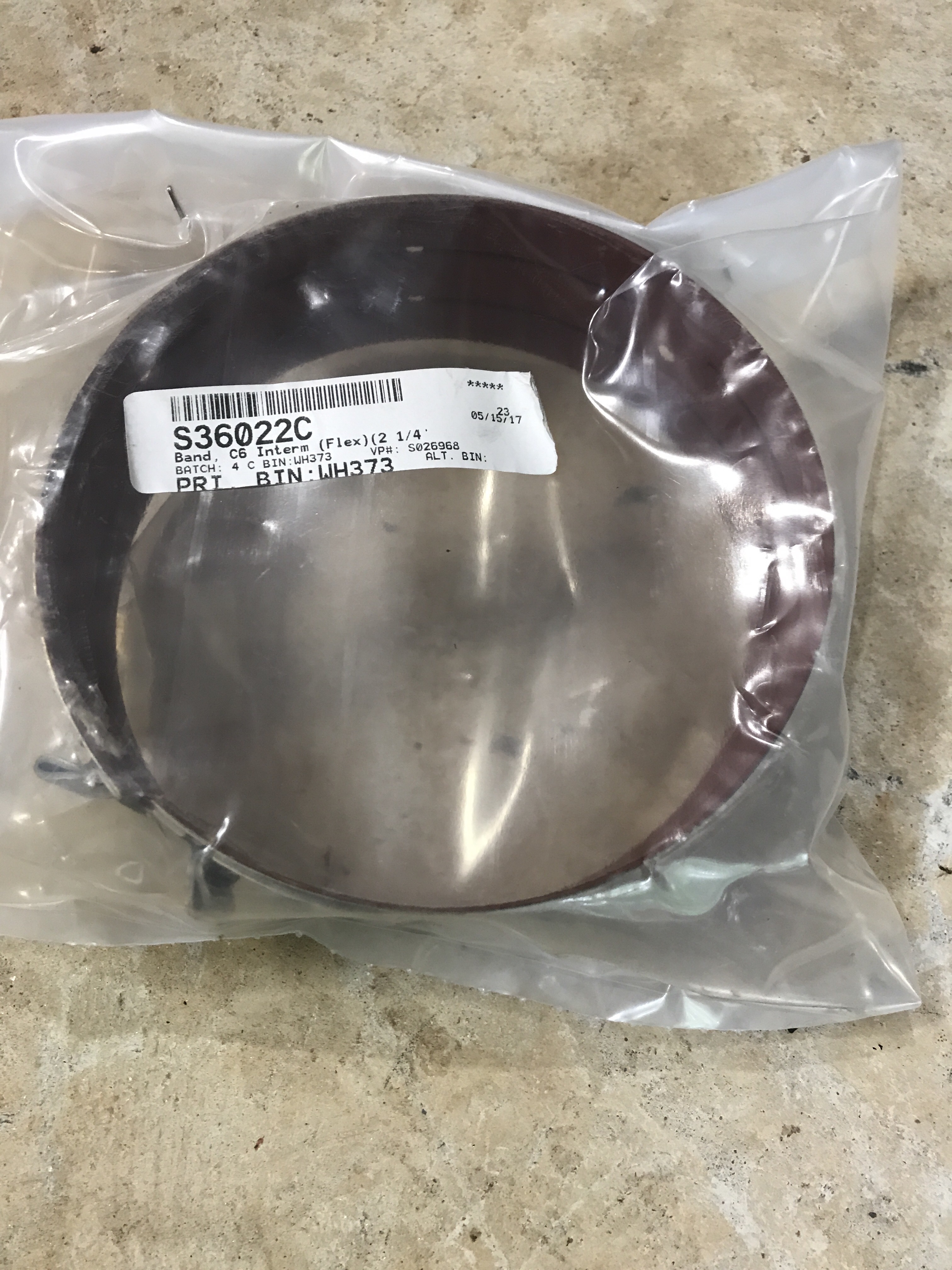

C6 trans heavy duty red friction band

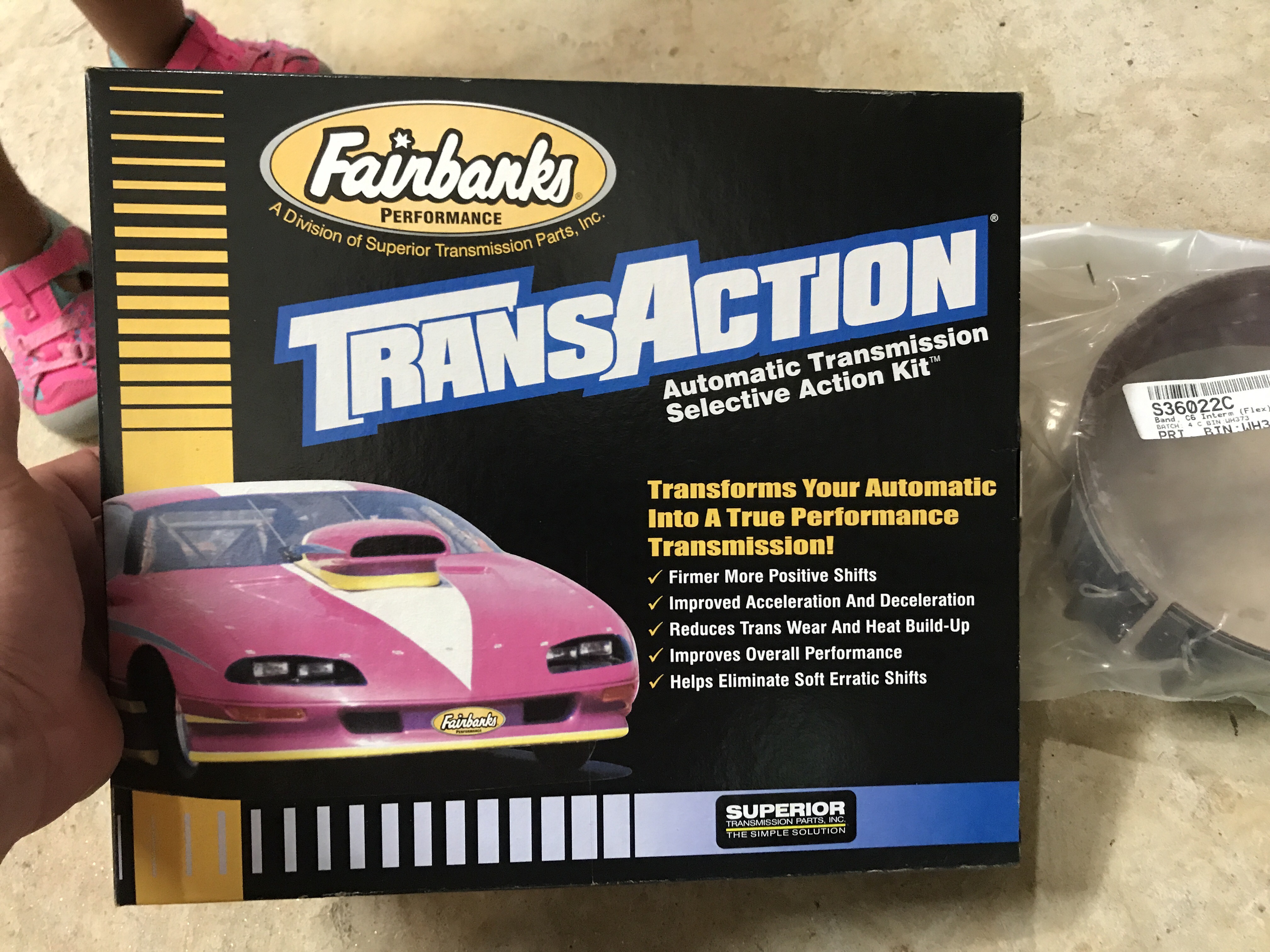

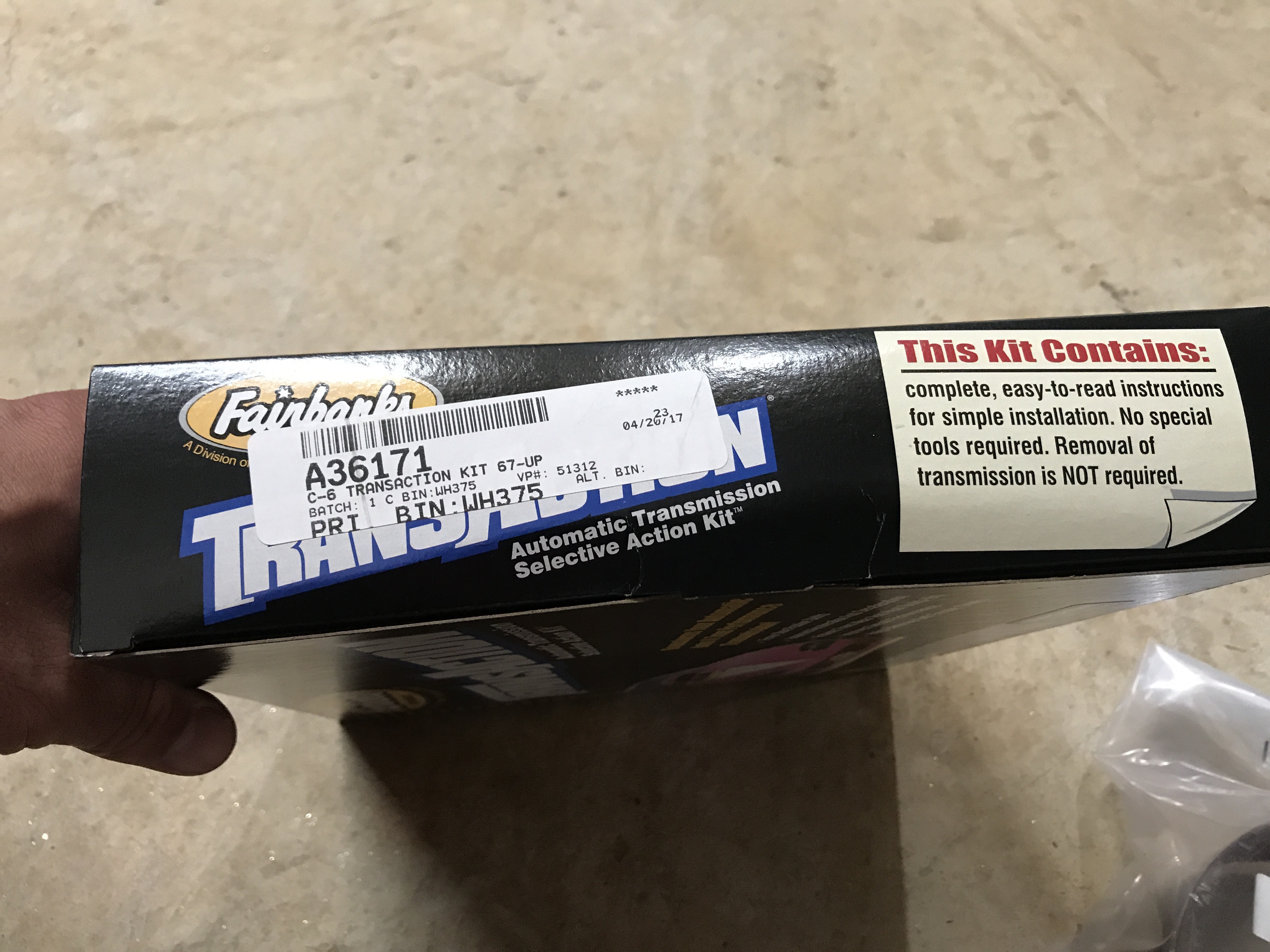

Shift kit

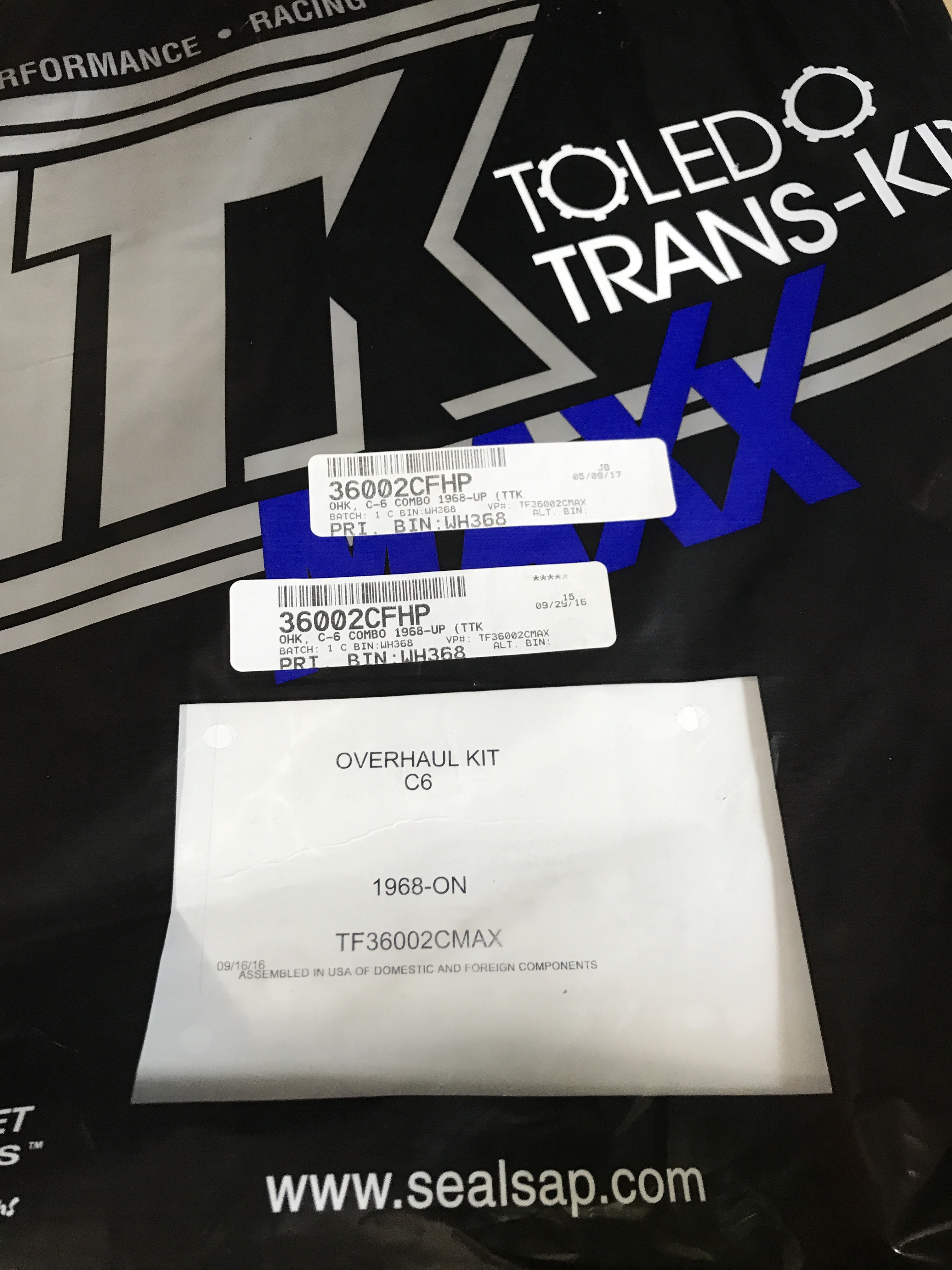

Overhaul kit

Seal/gasket kit

high performance friction / steel clutches

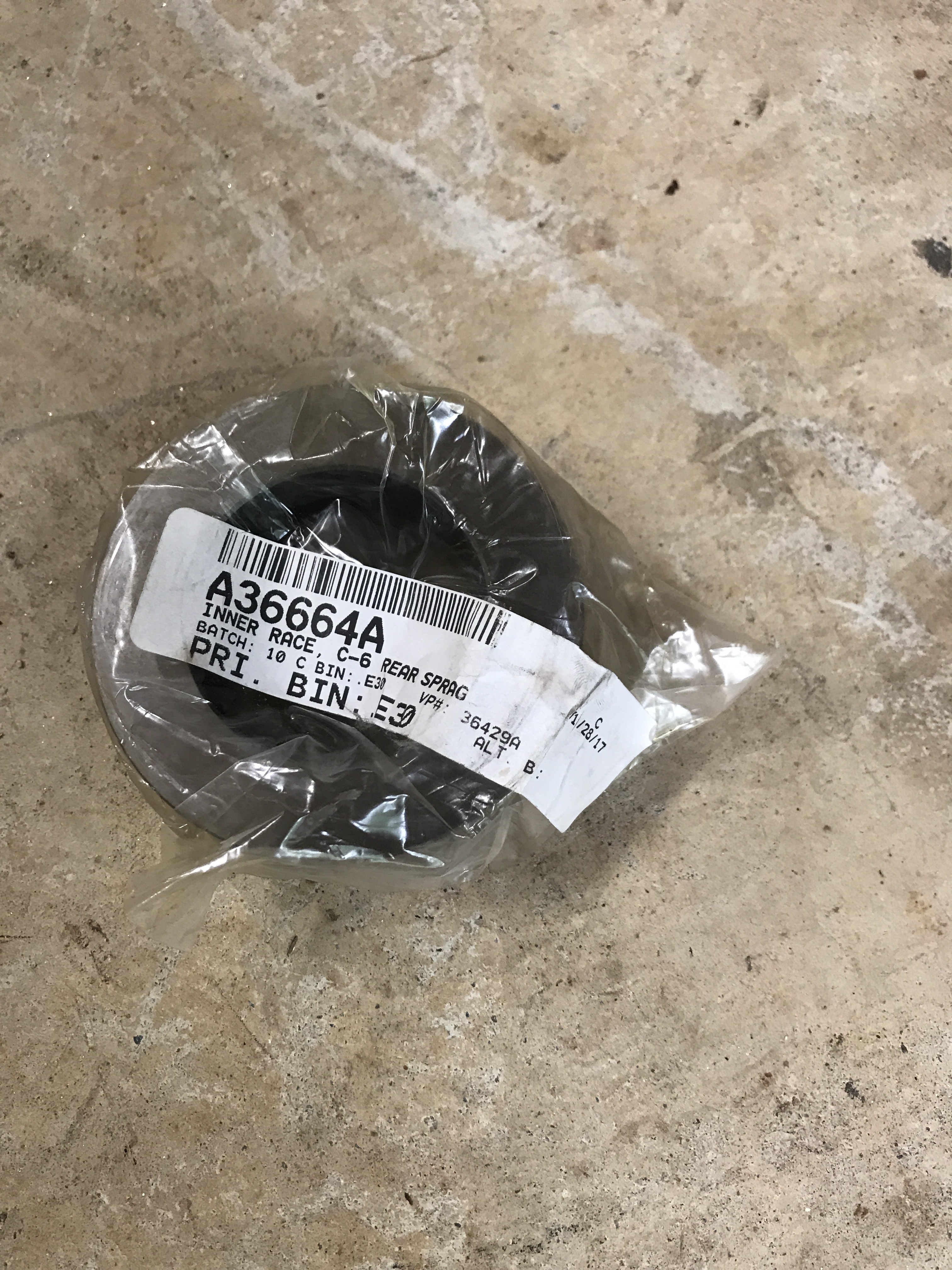

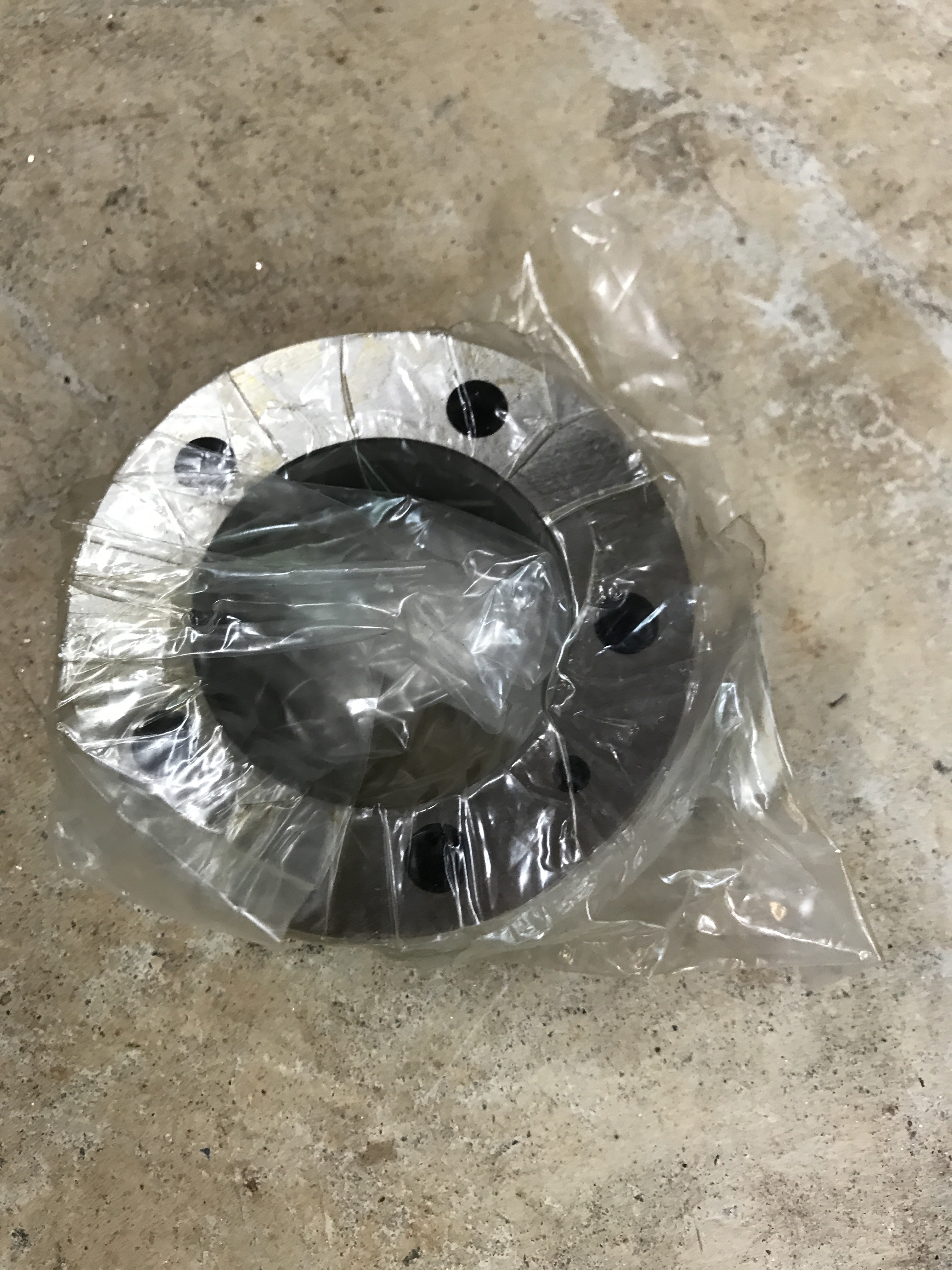

inner race low roller clutch

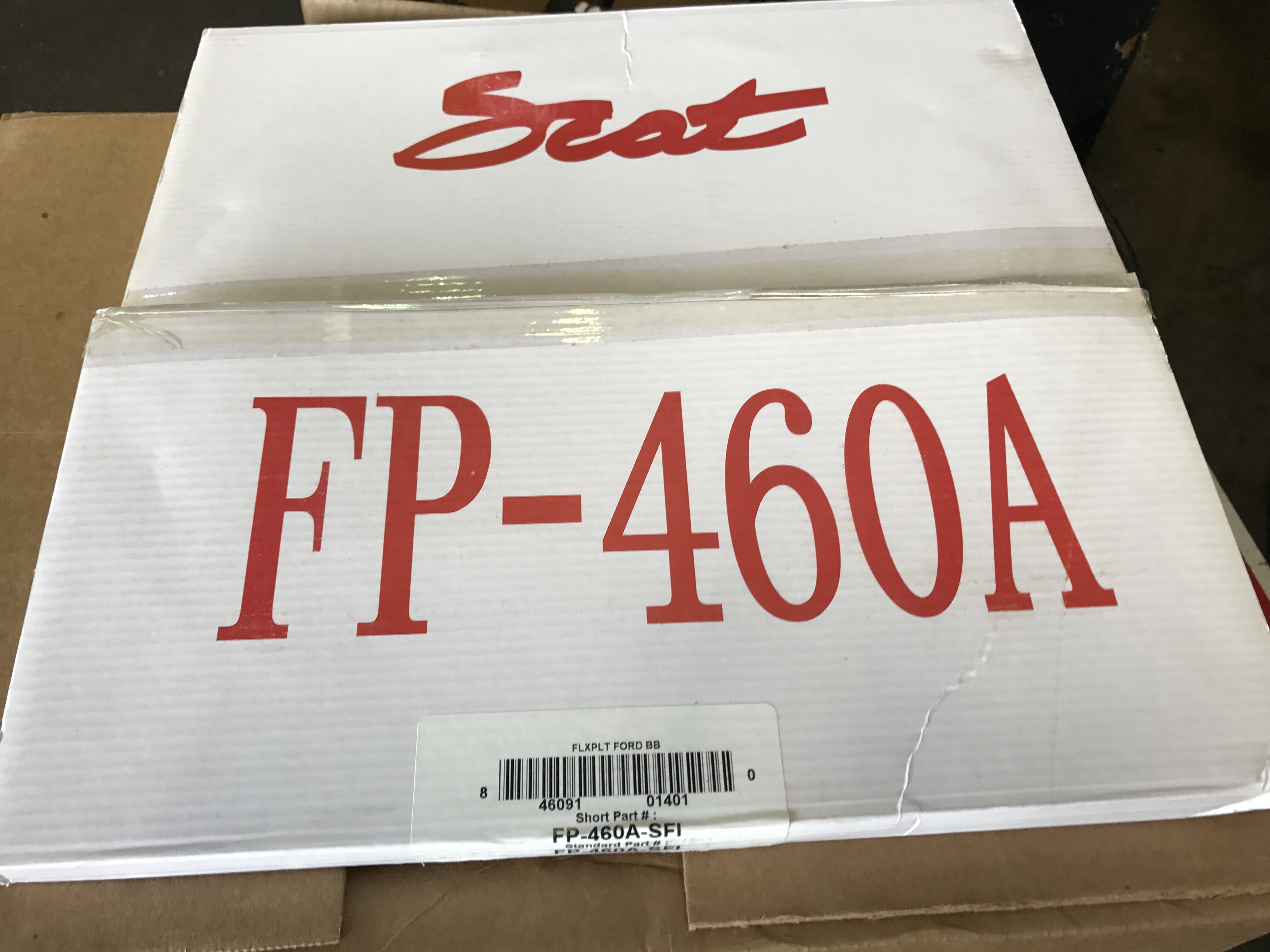

Scat flywheel (the old flywheel had damaged teeth) – part # FP-460A

ARP flywheel bolts – part # 100-2901

Torque converter – 2300-2500 stall – Consolidated Vehicle Converters FM6-25L

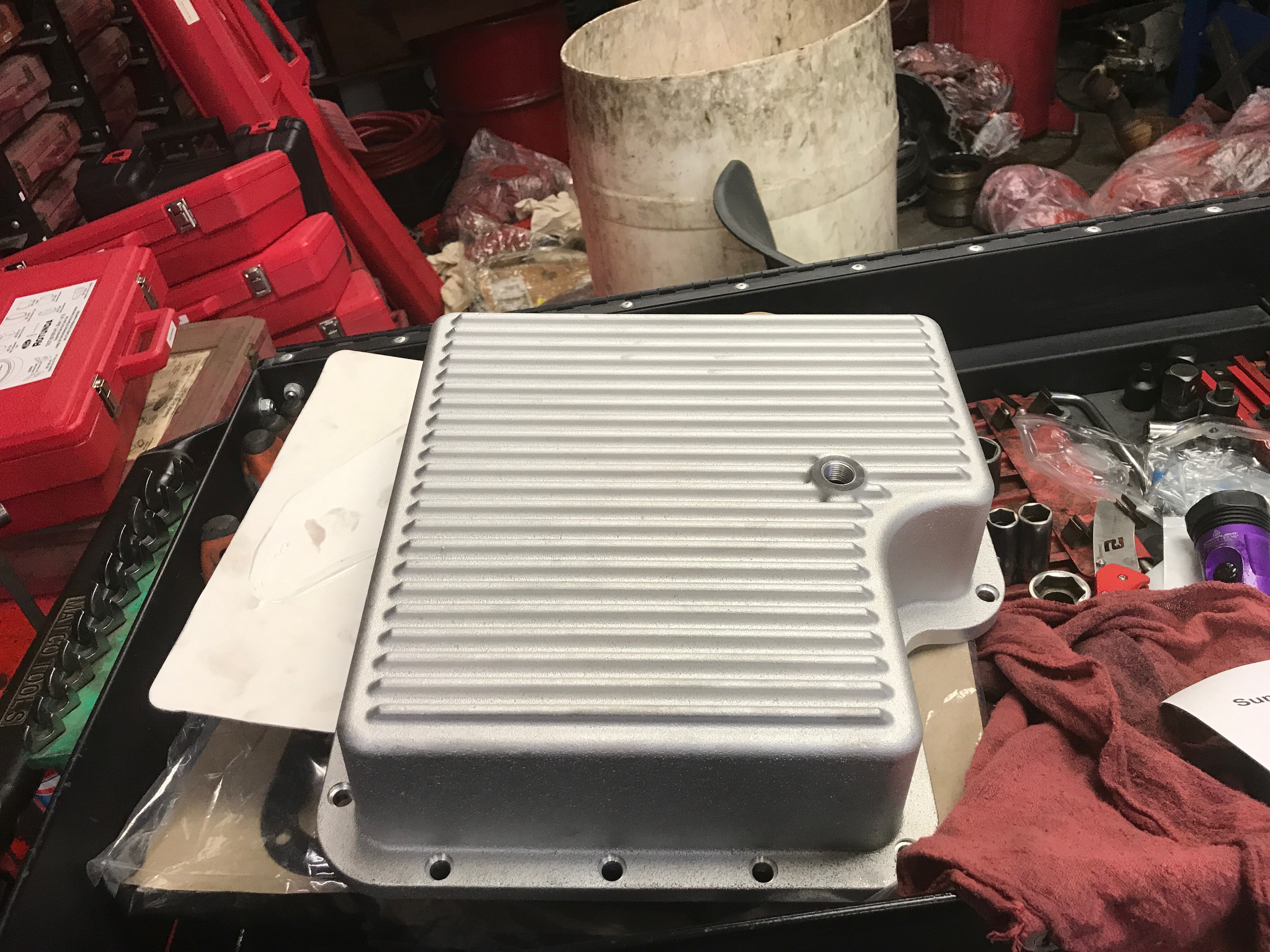

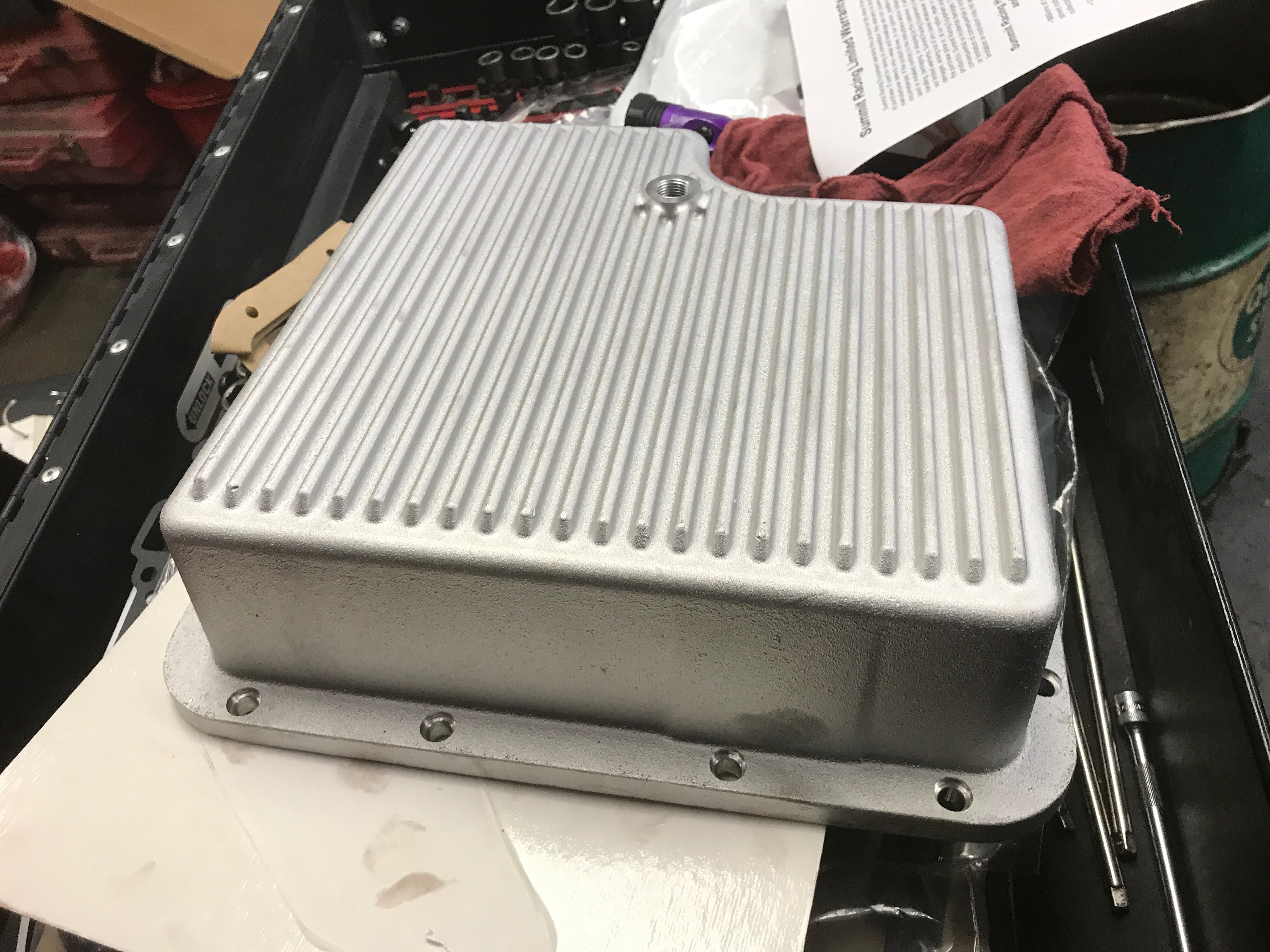

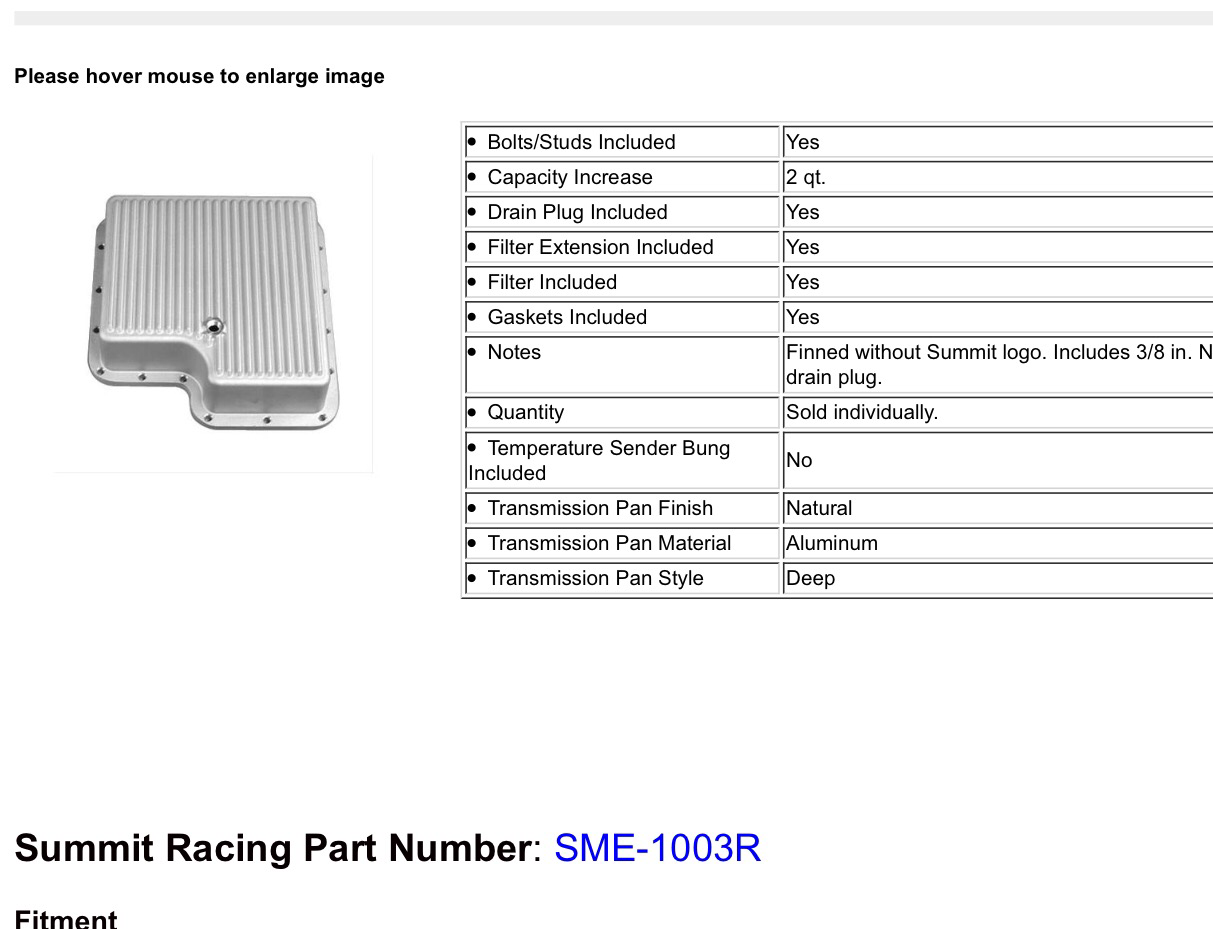

Aluminum deep pan – Summit brand p/n SME-1003R – 2qt. fluid capacity increase

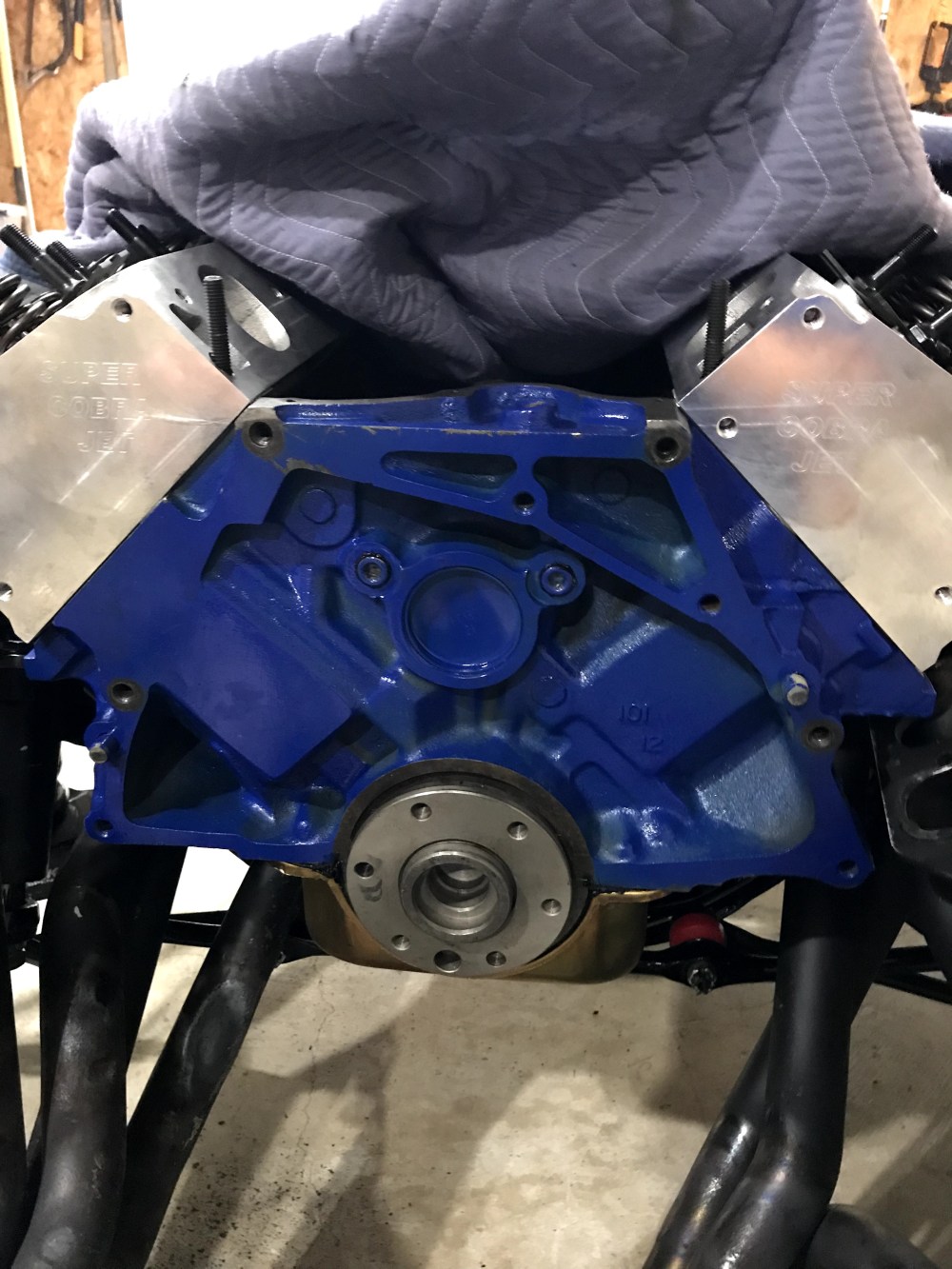

back side of engine

trans. bell housing dust shield

dust shield installed

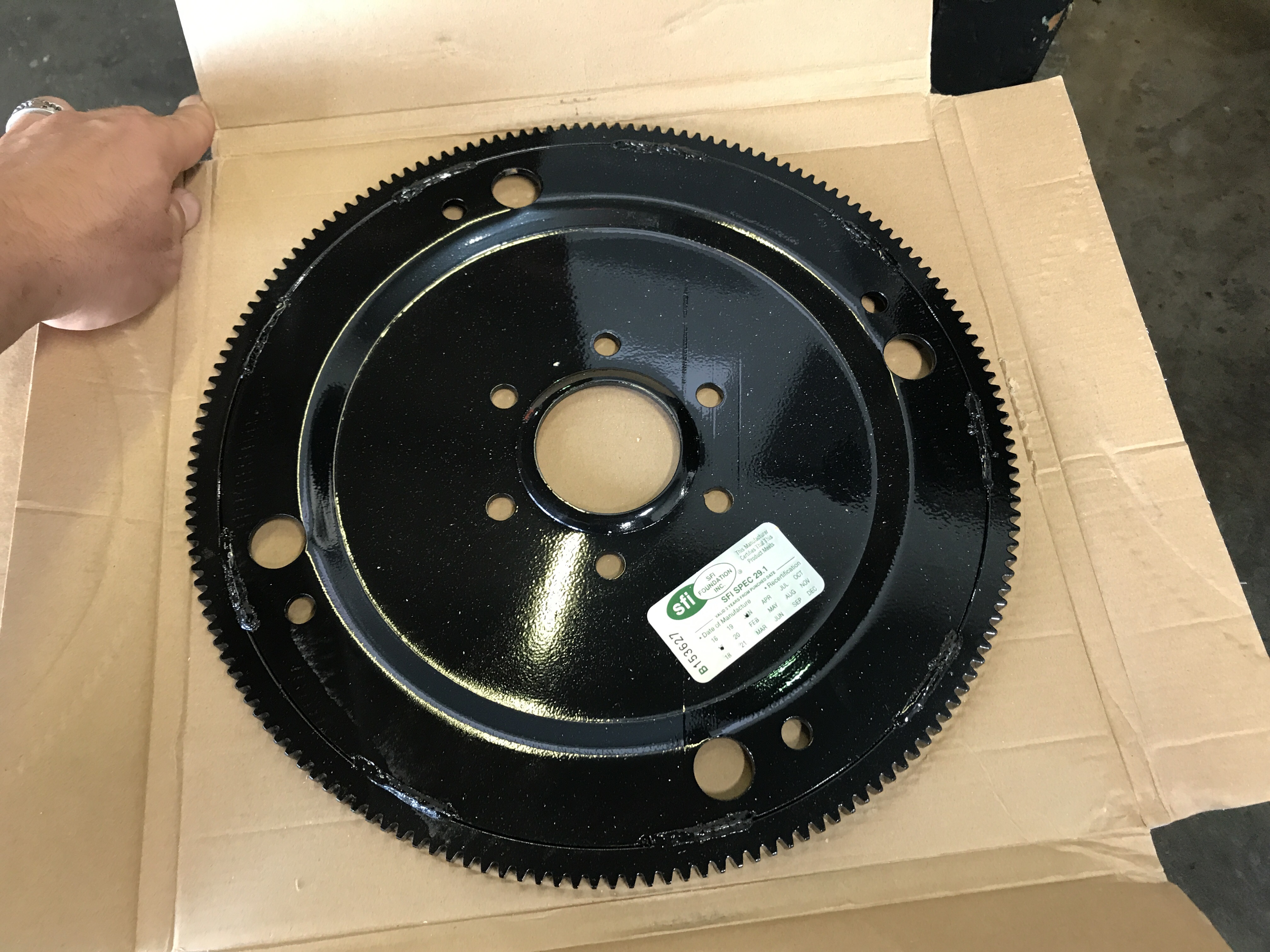

flywheel

flywheel in place

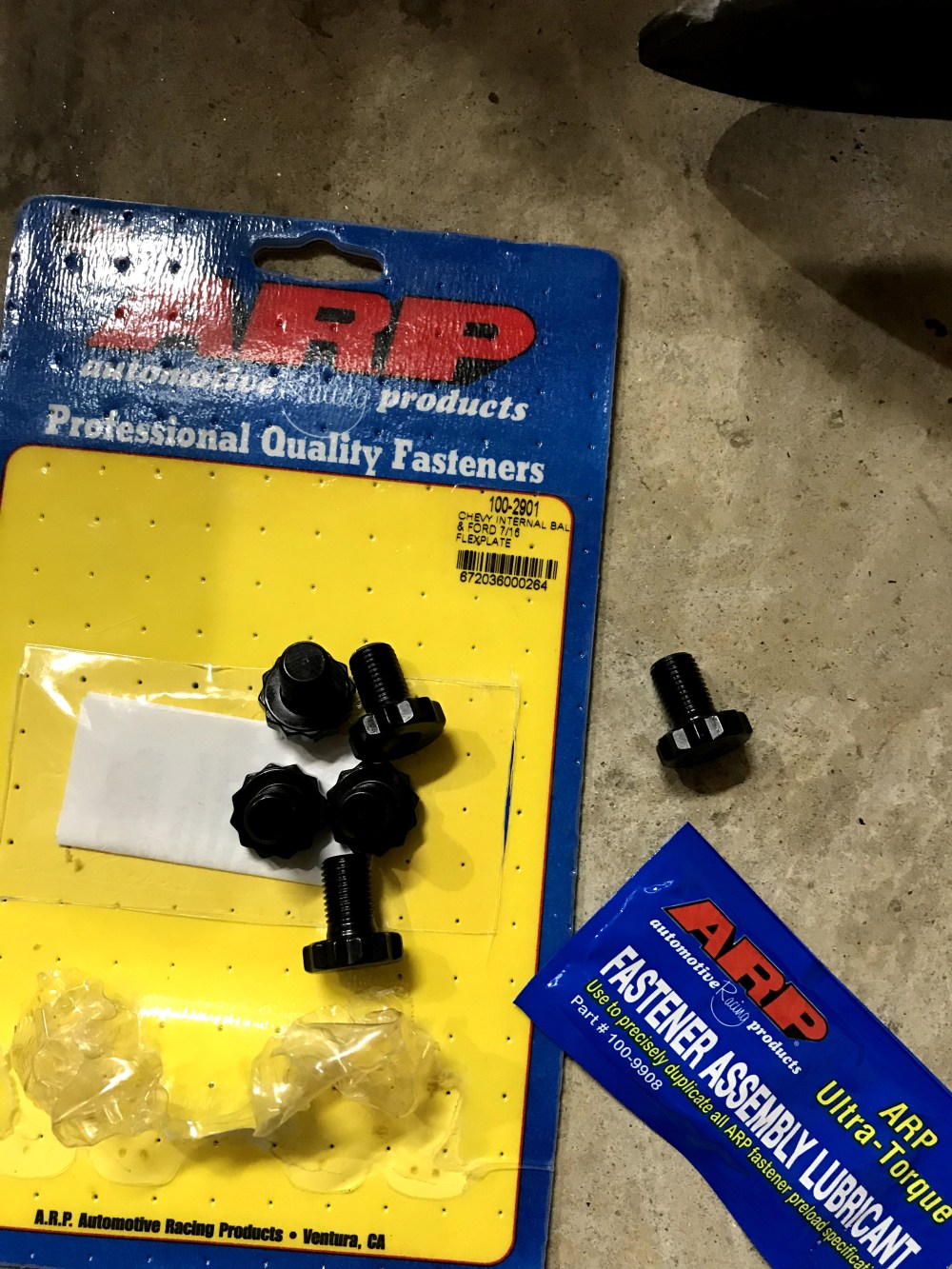

flywheel ARP 100-2901 bolts

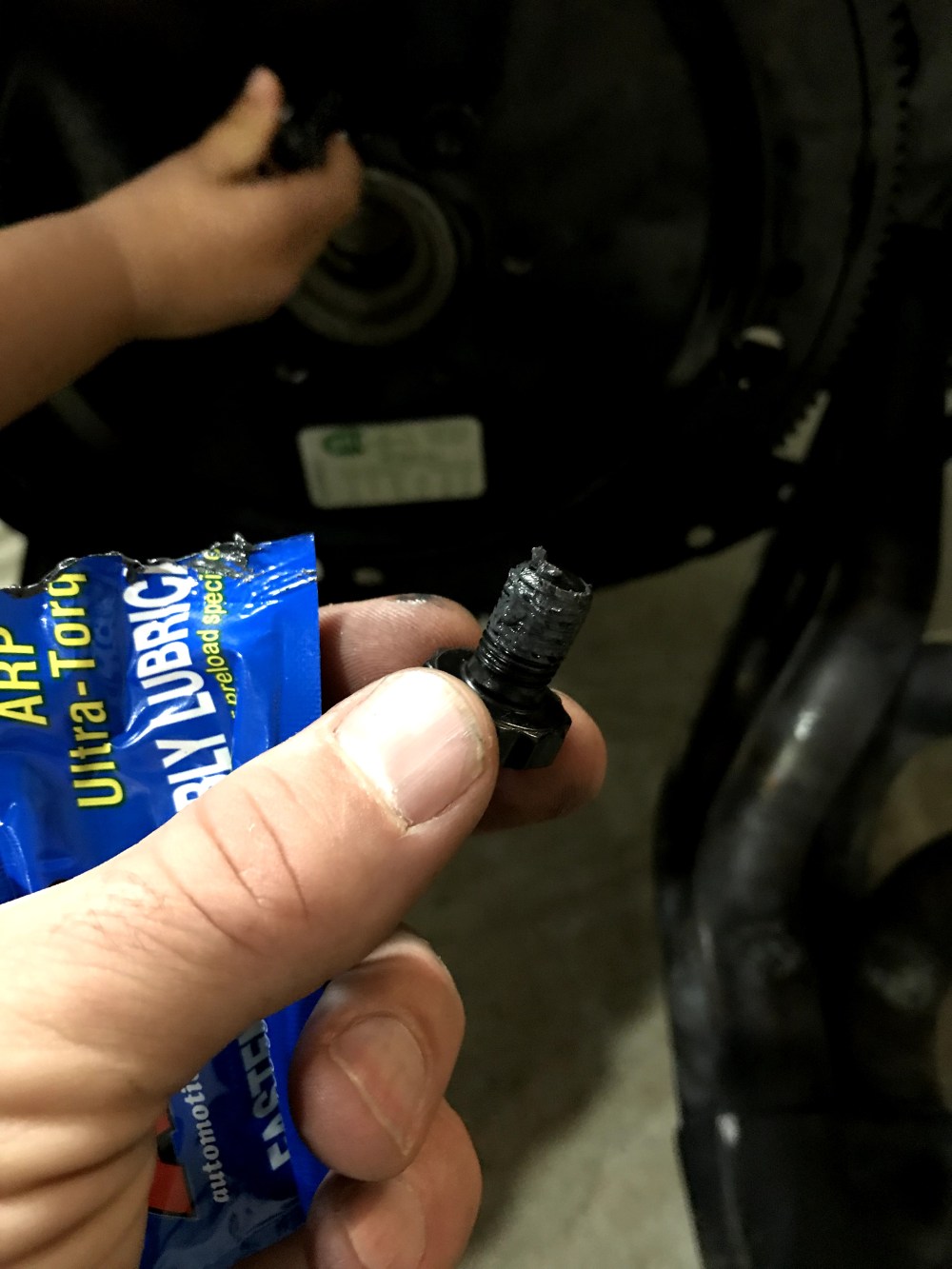

ARP thread lubricant

flywheel installed

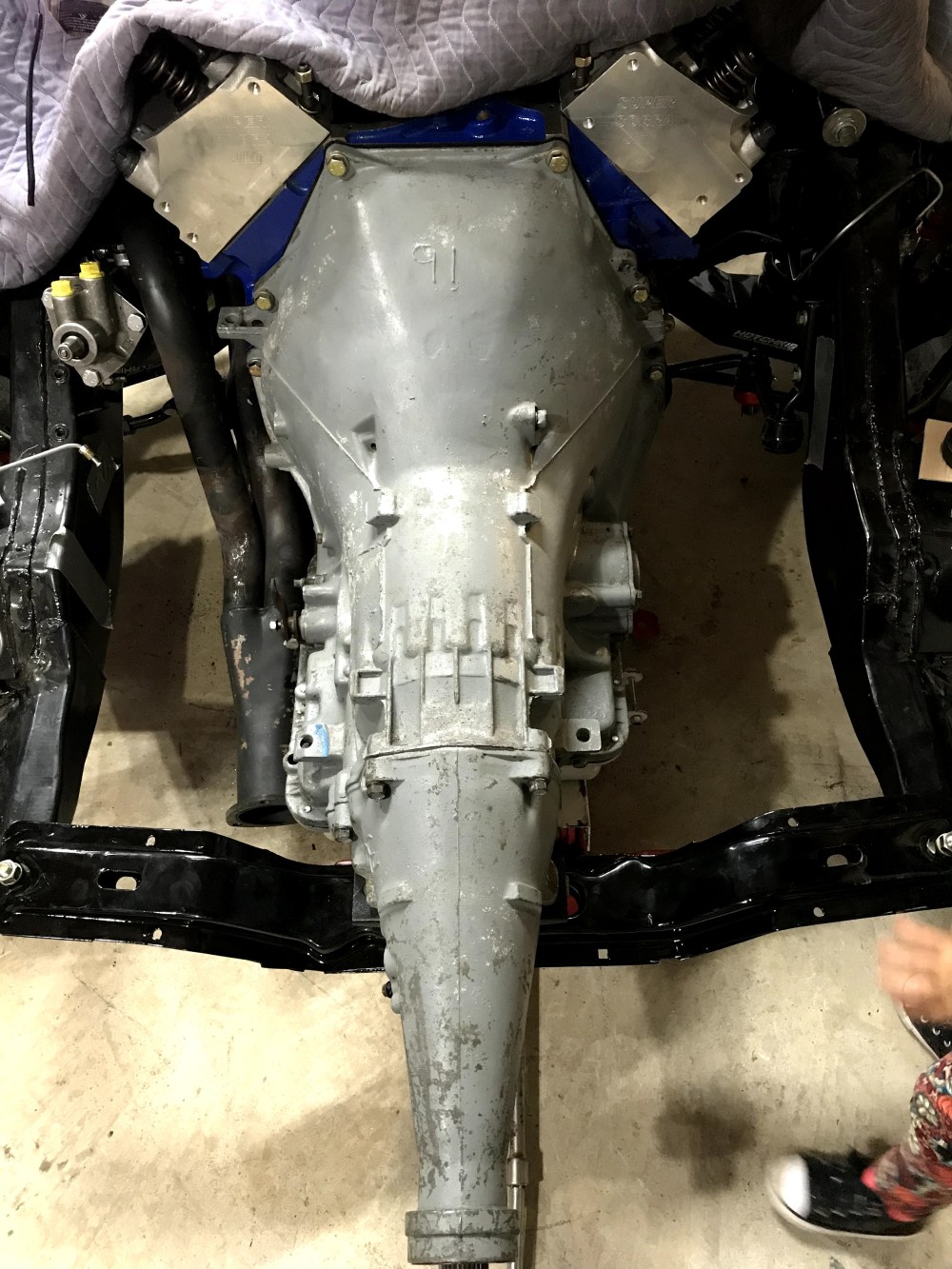

torque converter installed & trans. bolted up

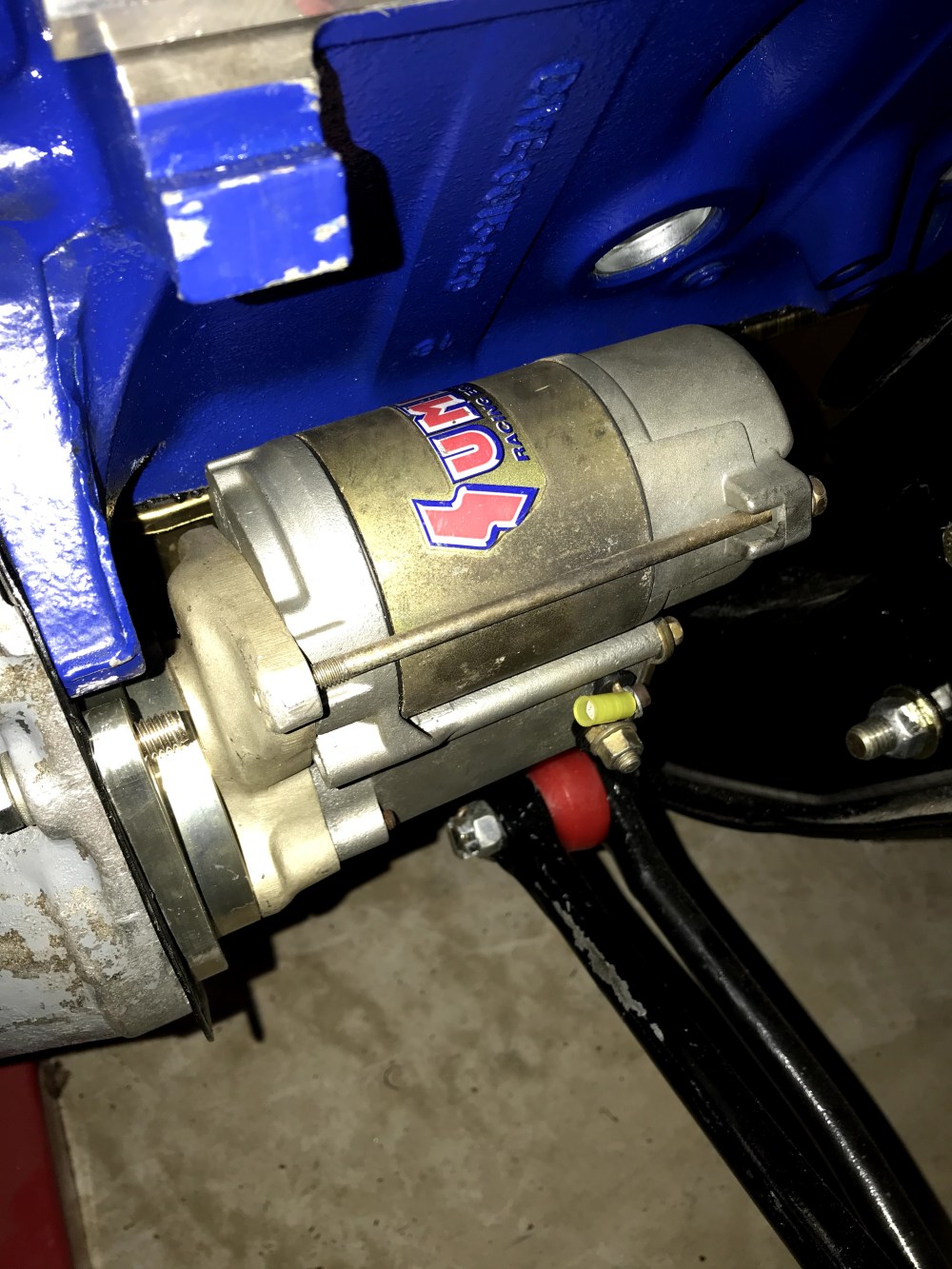

using the summit racing starter that came on the old 460 – had a local re-builder freshen up the insides

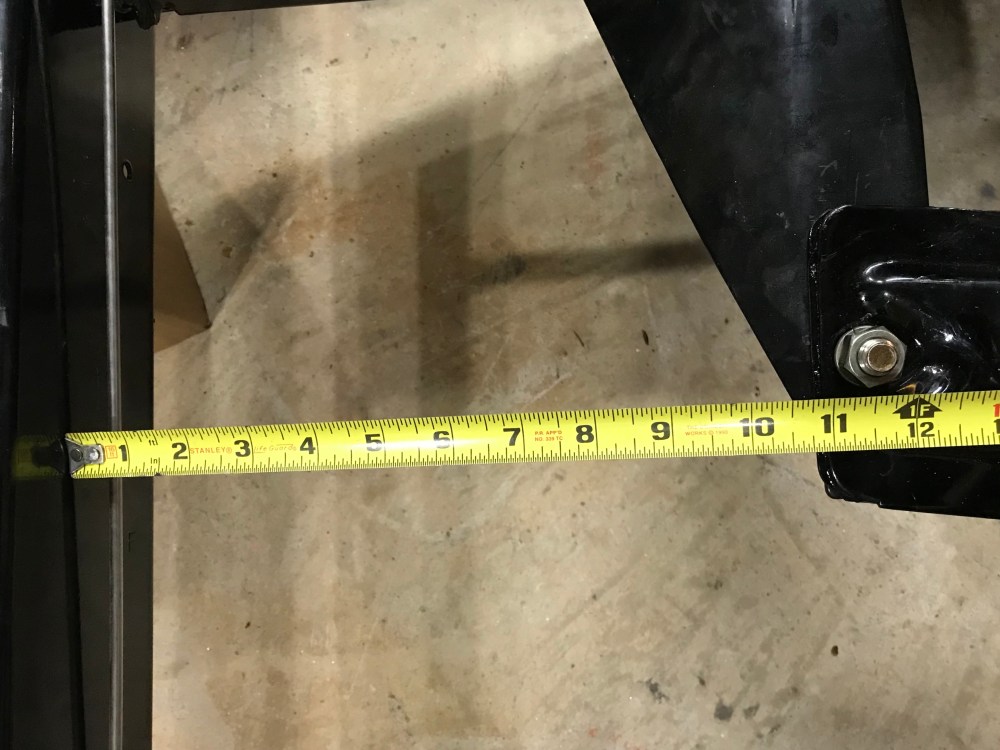

for some reason the mount bolt hole didn’t line up with the cross-member hole – After taking some measurement found out the trans. cross-member frame brackets aren’t centered
