Frame & Mounts

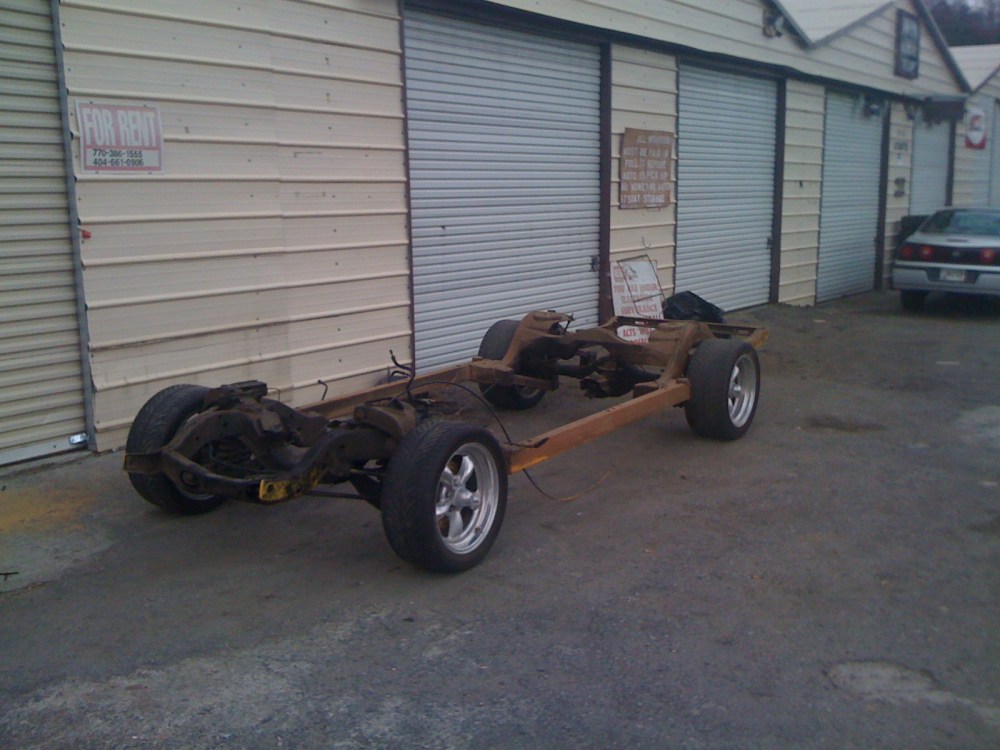

Frame 1
the body is now off
Frame 2

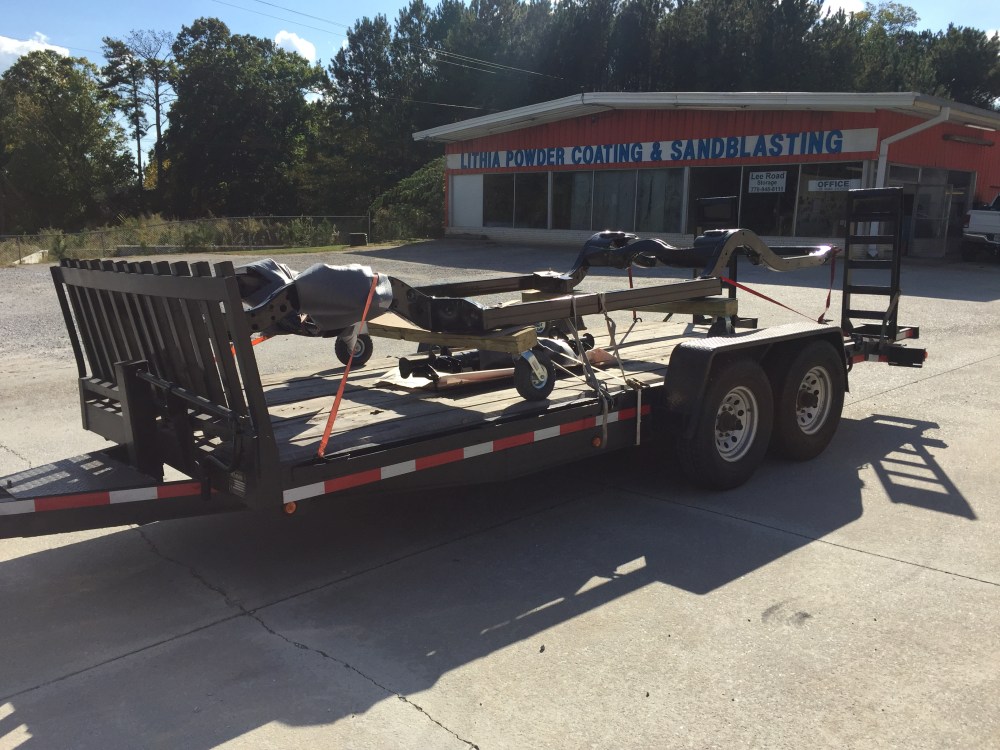

heading to the sandblaster

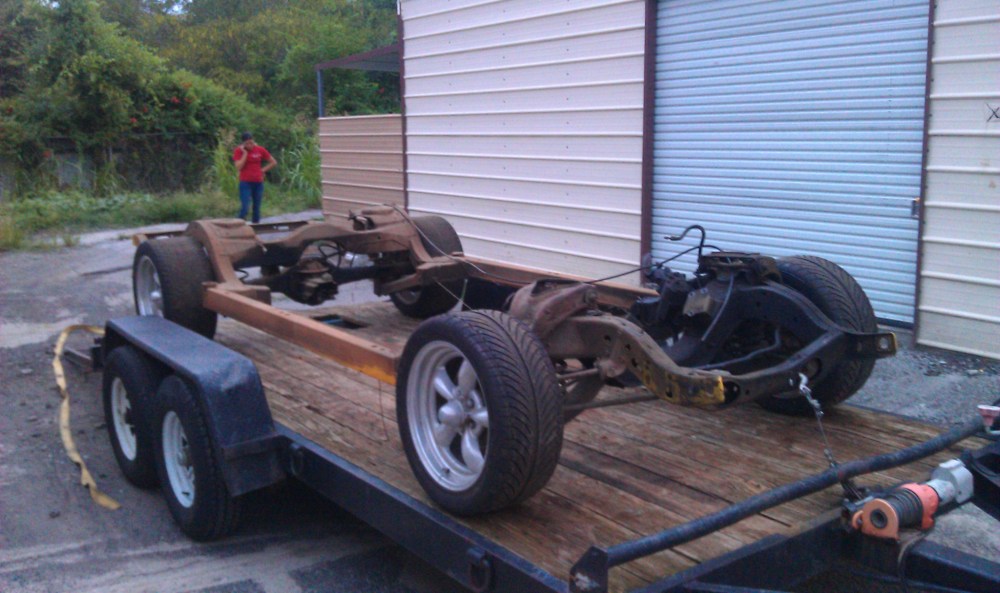

Frame 3
heading to the sandblaster

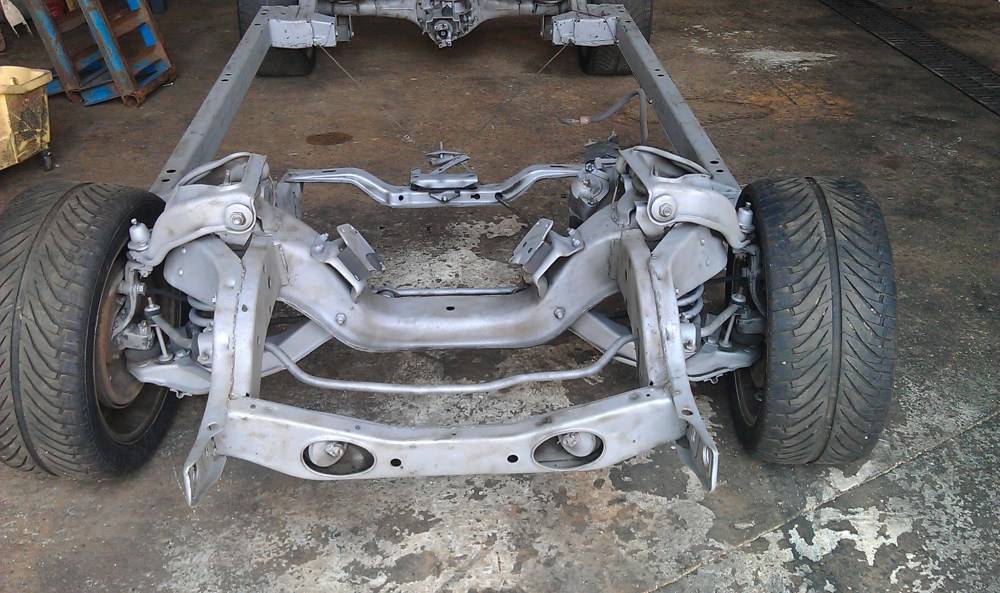

Frame 4
back from the sandblaster

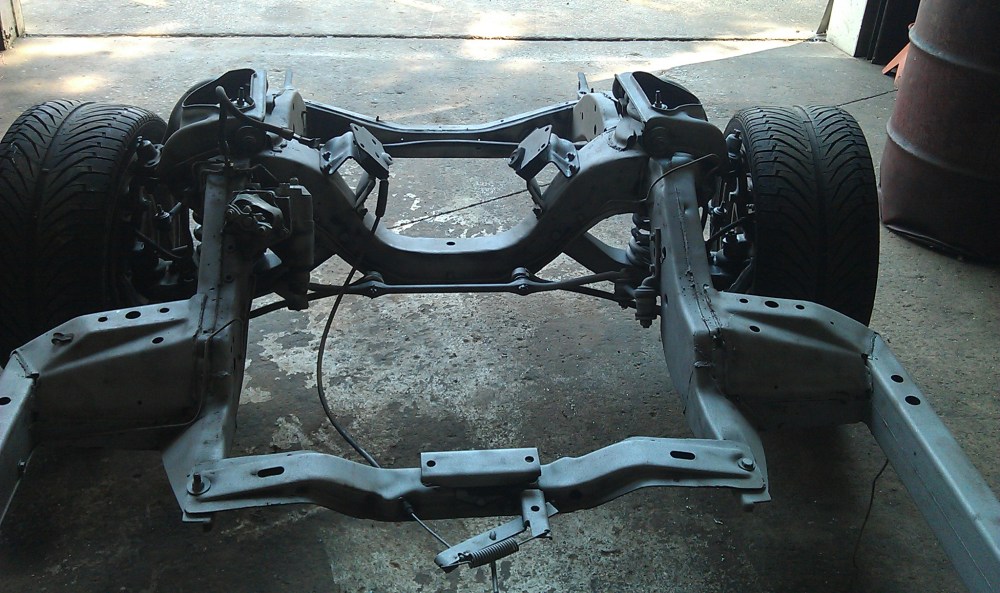

Frame 6
back from the sandblaster

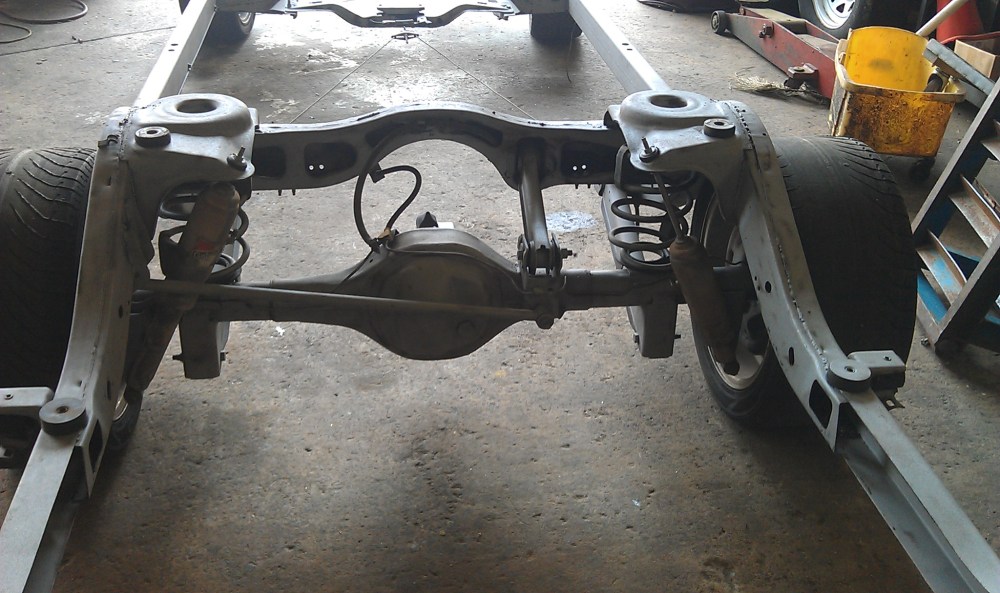

Frame 5
back from the sandblaster

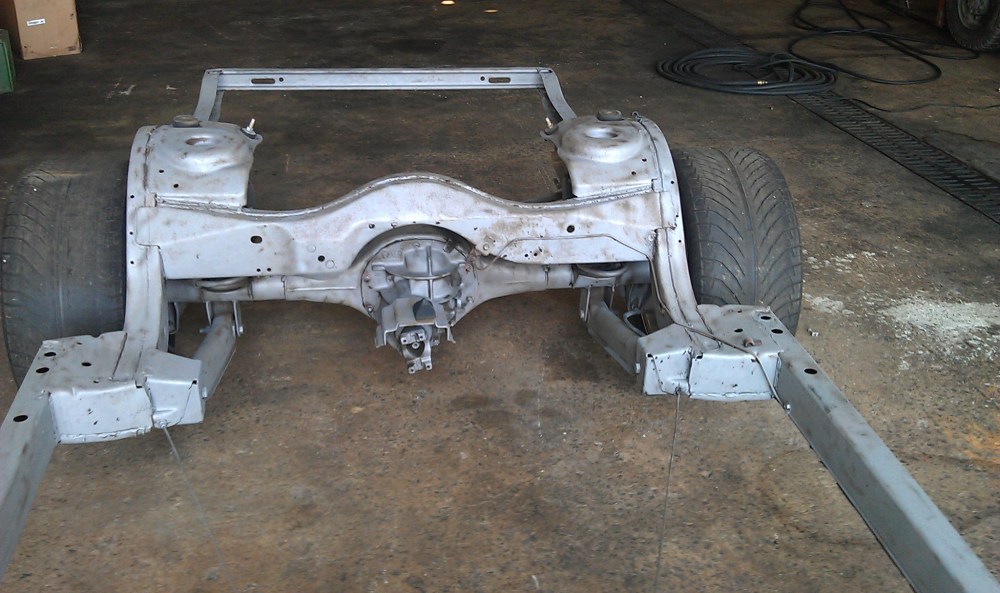

Frame 7
back from the sandblaster

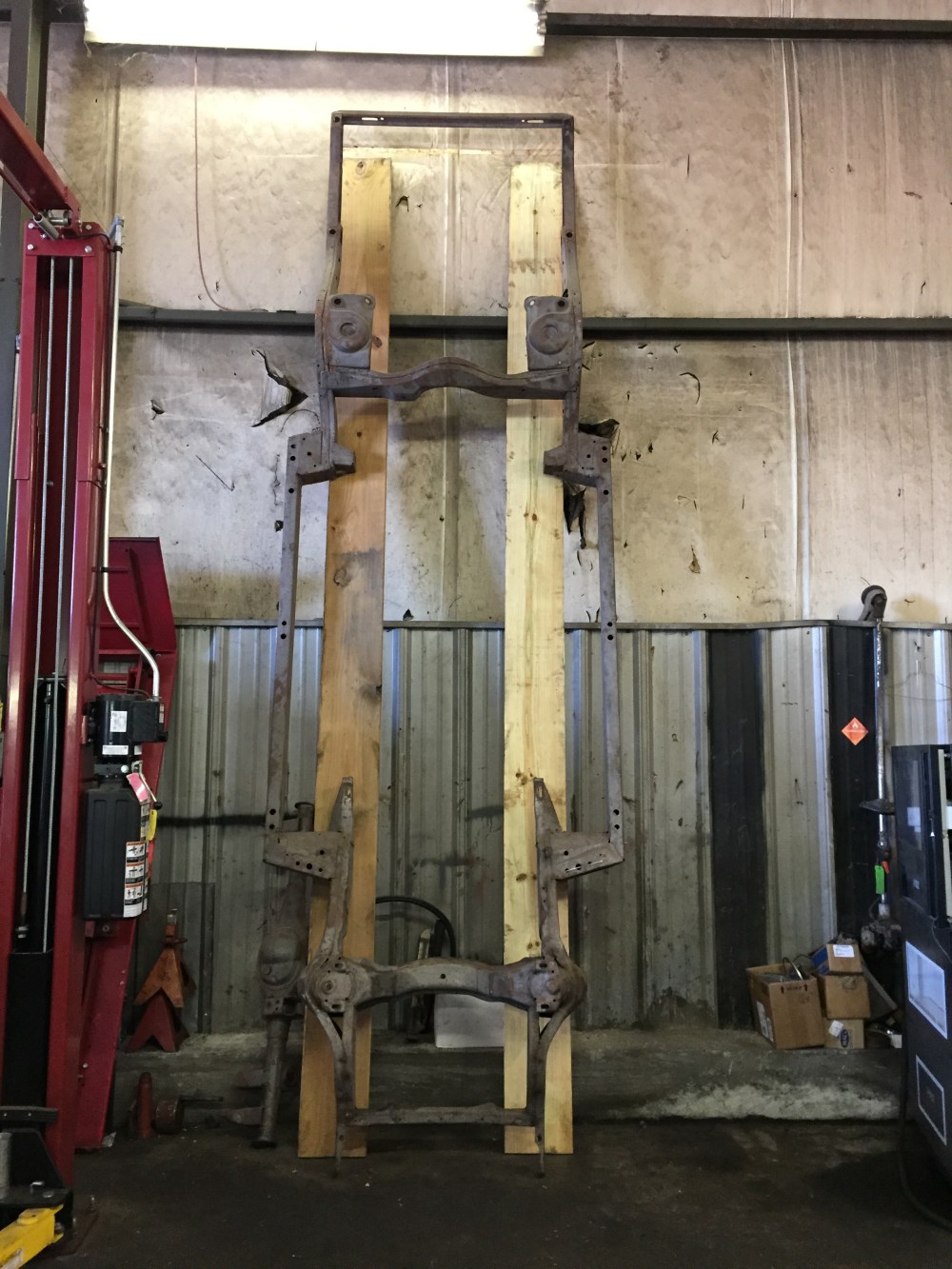

Frame stripped down completely & was stored this way for serveral years. About to finally pull it back down for powder coating

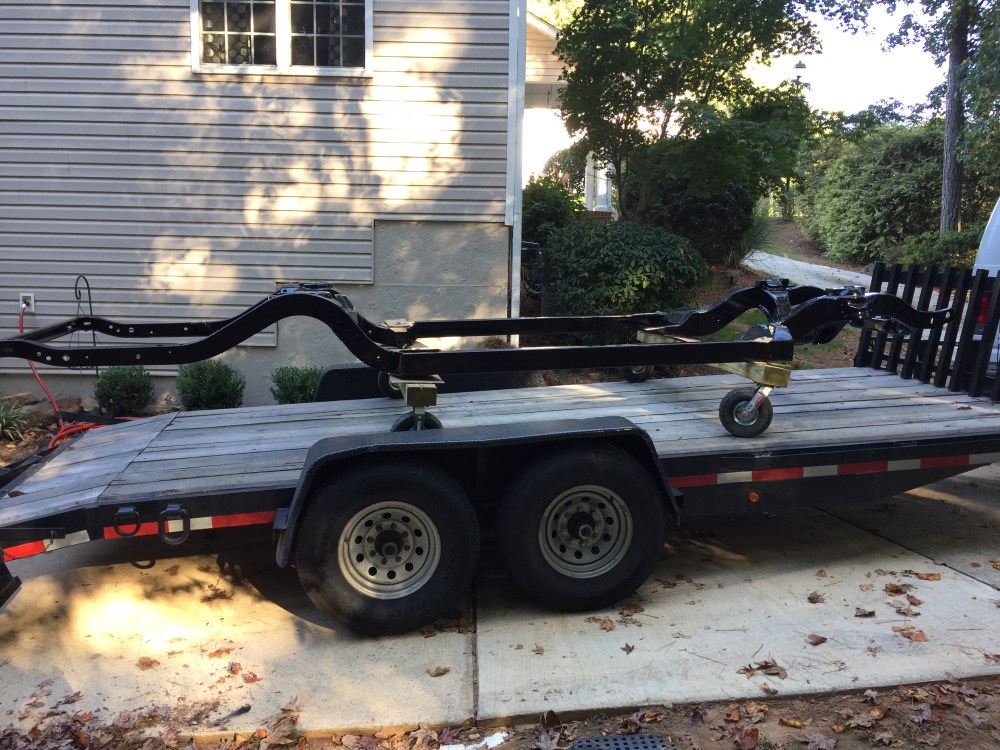

Just picked up from powder coating
Brought freshly powder coated frame home


Finally got the frame in the basement

At this point is has been about 9 years since I last removed the body – So I didn’t know exactly how the mounts should go back – Some mounts I knew for sure about – others I kind of guessed but still should work fine – It also doesn’t help that the only mounts sold is more of a universal kit – So they really aren’t the same – I reused some of the original mounts – Nobody sells the nuts or bolts for this – So you will need to reuse all your old ones, buy old ones from someone else or try to fabricate some


The hardtop has a total of 12 mounts (not counting core support) – 8 of those mounts bolt directly to the body & frame – 4 of those mounts only sit on top of frame & act as a spacer / isolator




Sandblasted the rubber mount that goes @ the firewall – The rubber mount kit they sell does not include this one – May be able to use one out of the kit but it doesn’t have that upward section that goes thought the body

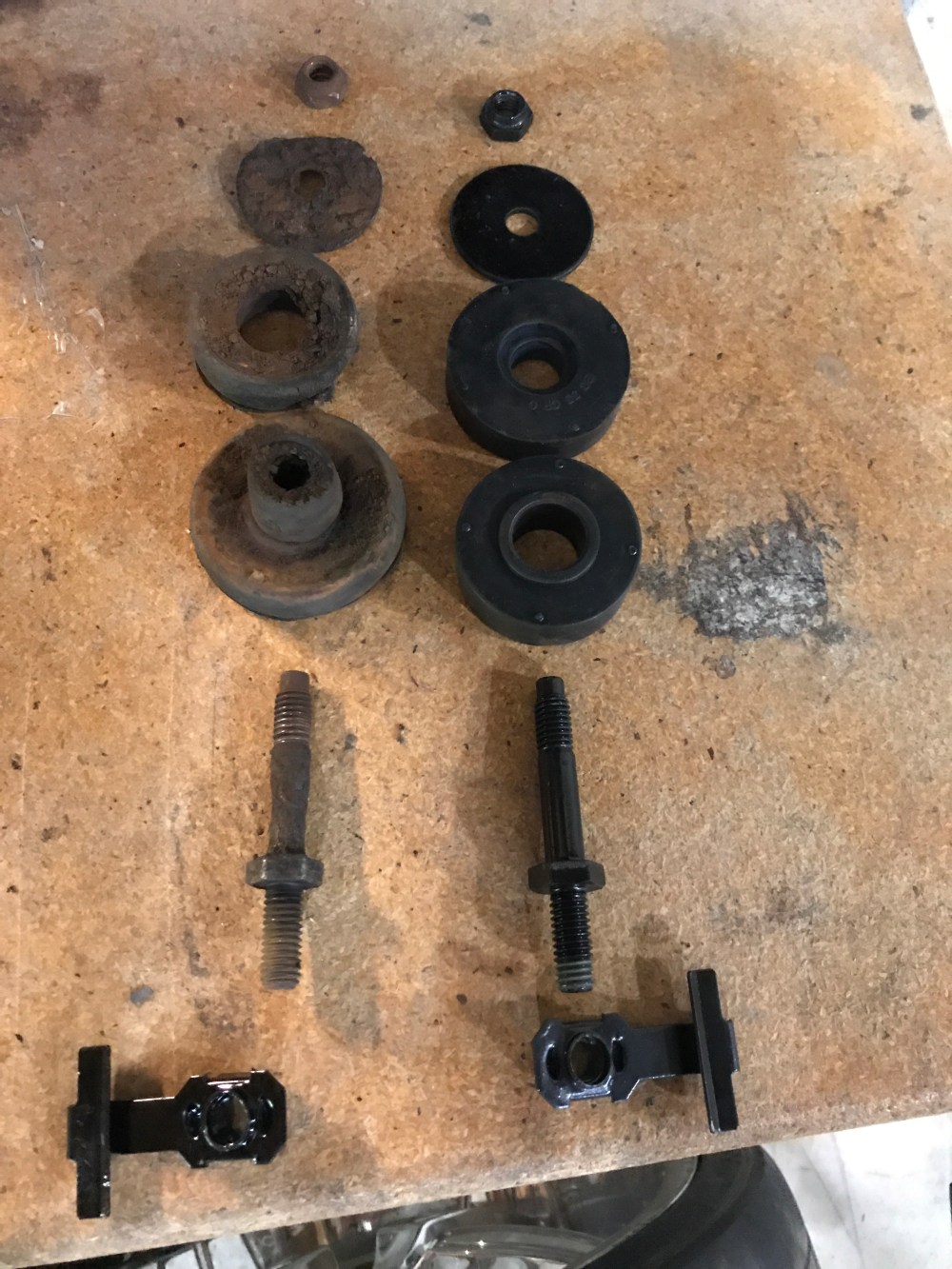

This is showing the new mounts I was going to use compared to the old ones – But I decided against this option – However, I left it on here to because it is still a option for someone else – All the metal parts (cage nut, bolt, washer & nut were all sandblasted, painted and reused)

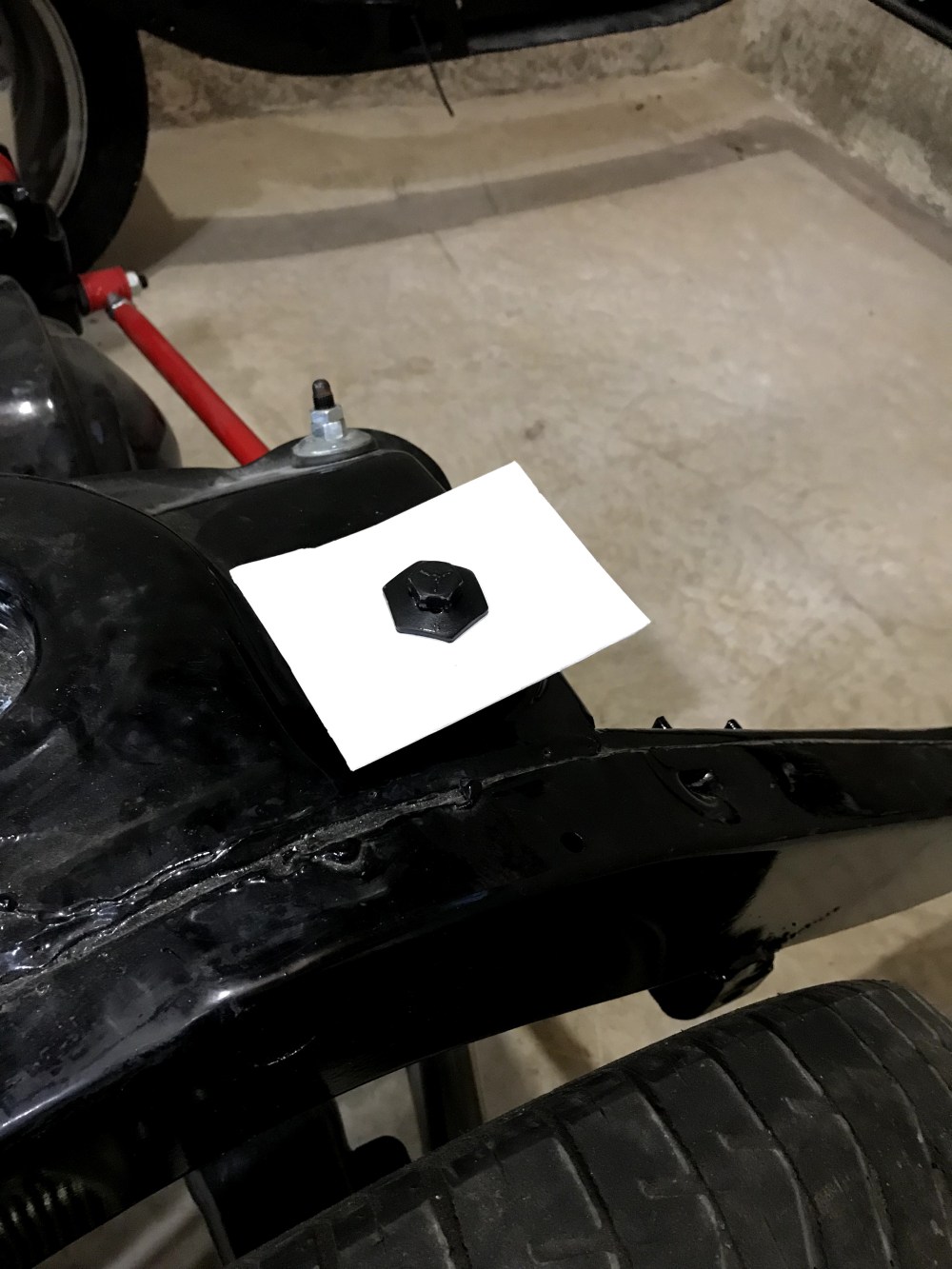

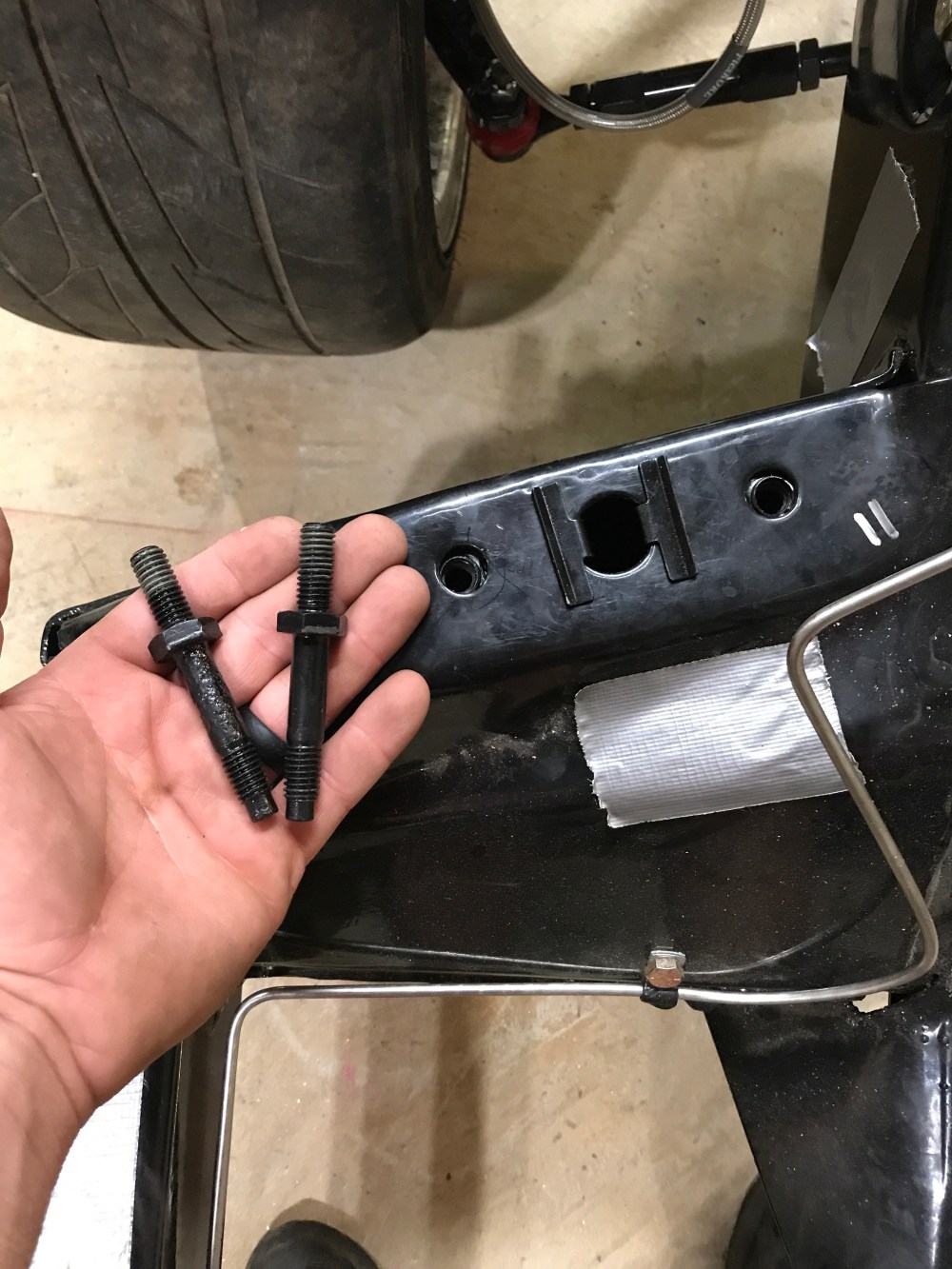

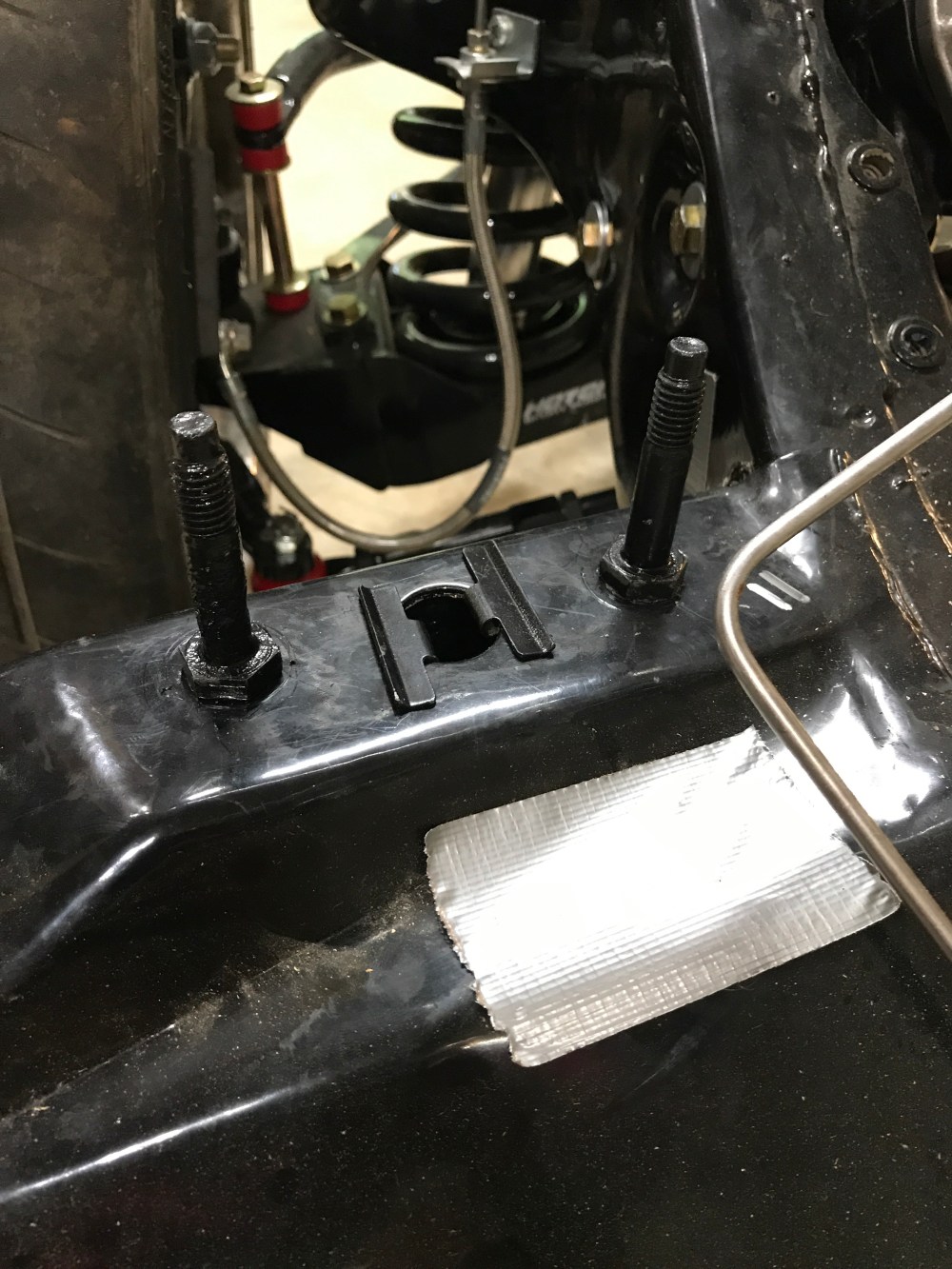

Front body mount cage nuts for firewall mounts – behind front tire



Sandblasted the rubber mount that goes @ the firewall – The rubber mount kit they sell does not include this one – May be able to use one out of the kit but it doesn’t have that upward section that goes thought the body

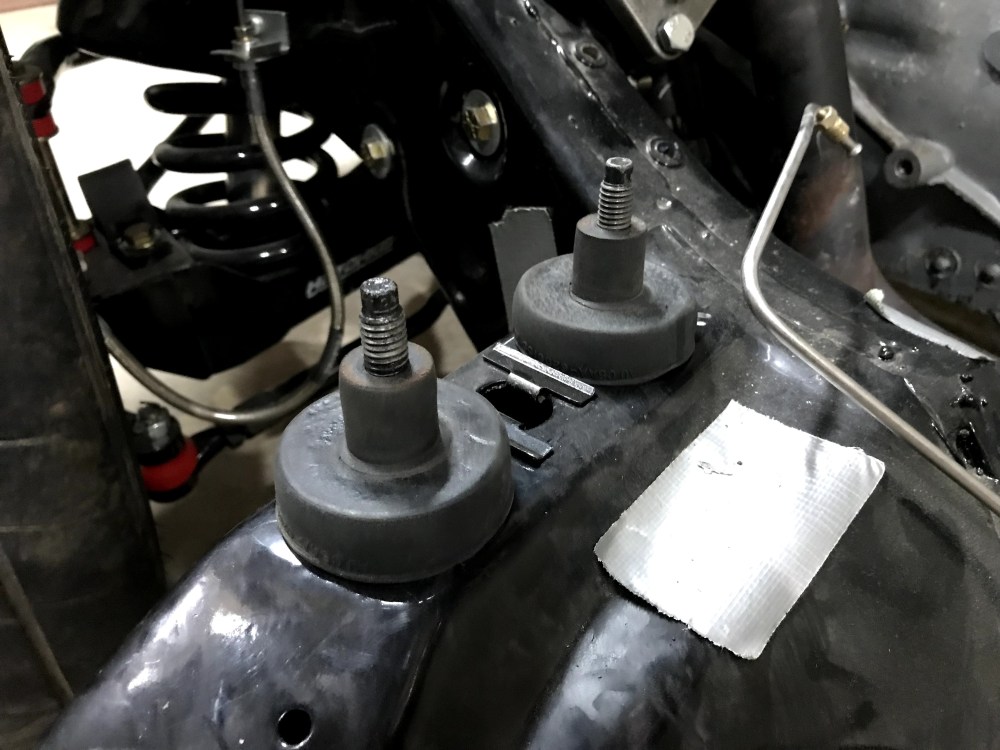

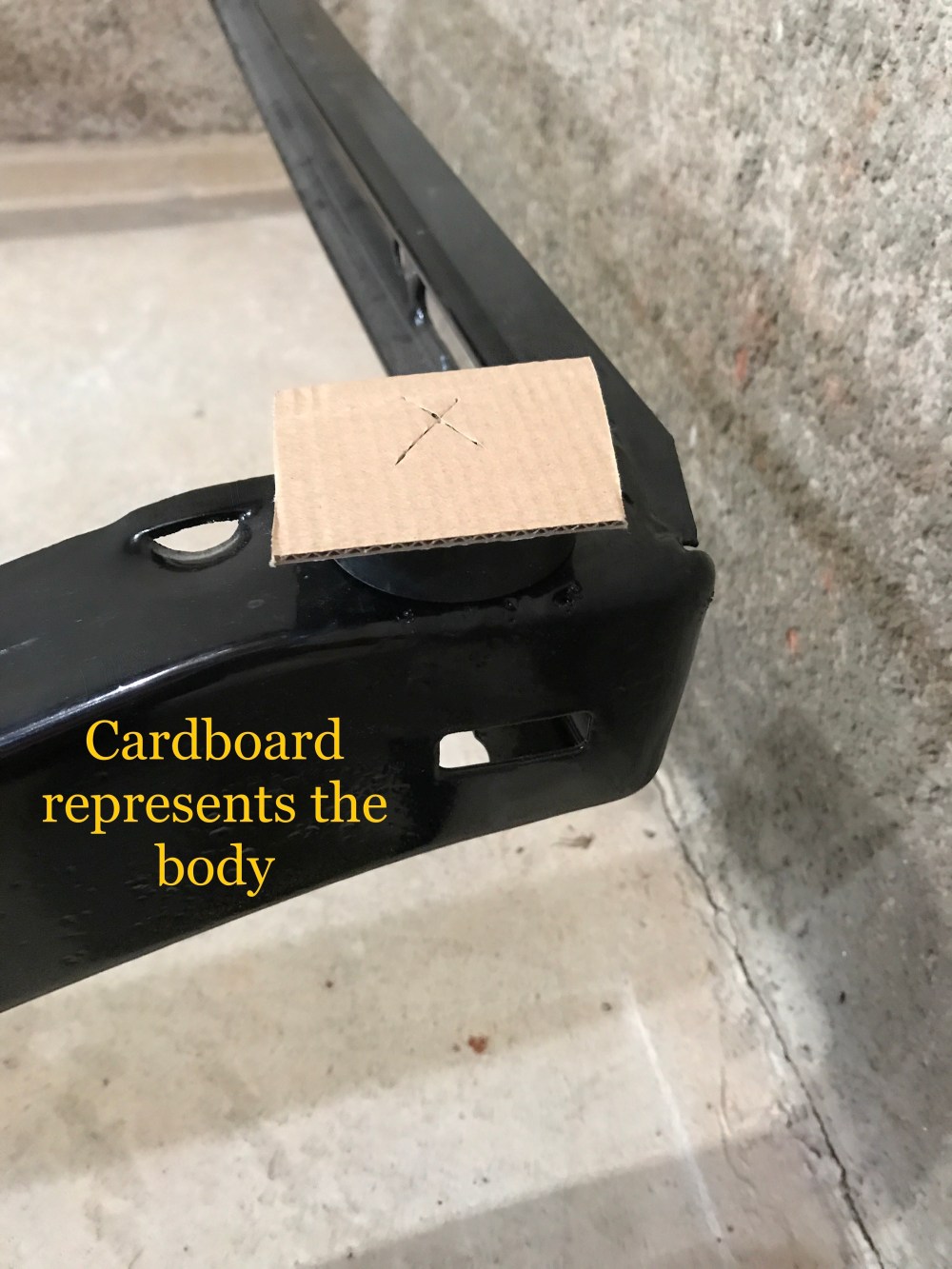

IMG_2003.jpgcardboard represents the body – and the rubber coming up through it

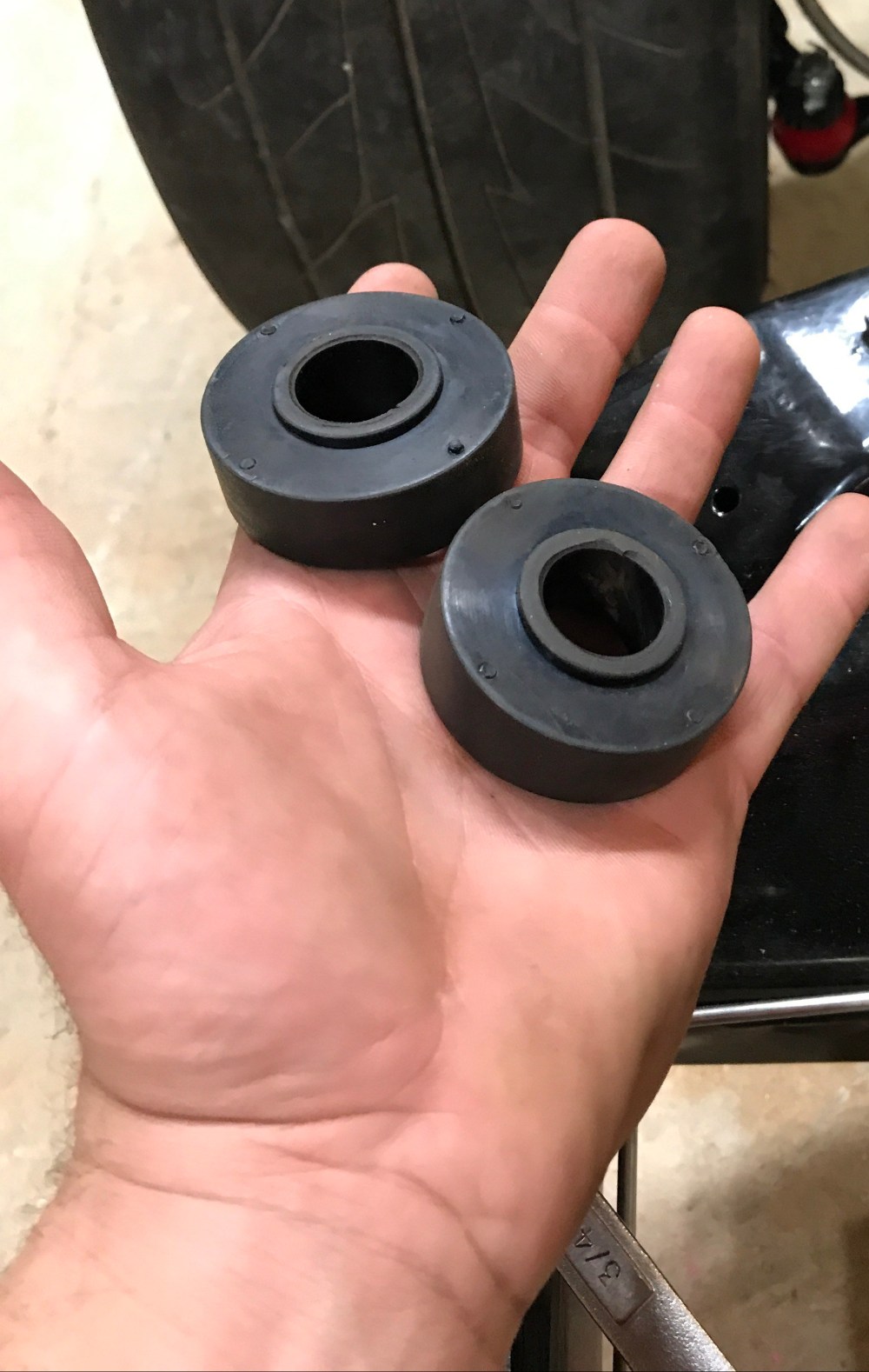

img_7228these are the upper mounts – see the lip around the center hole? That will be faced downward on install

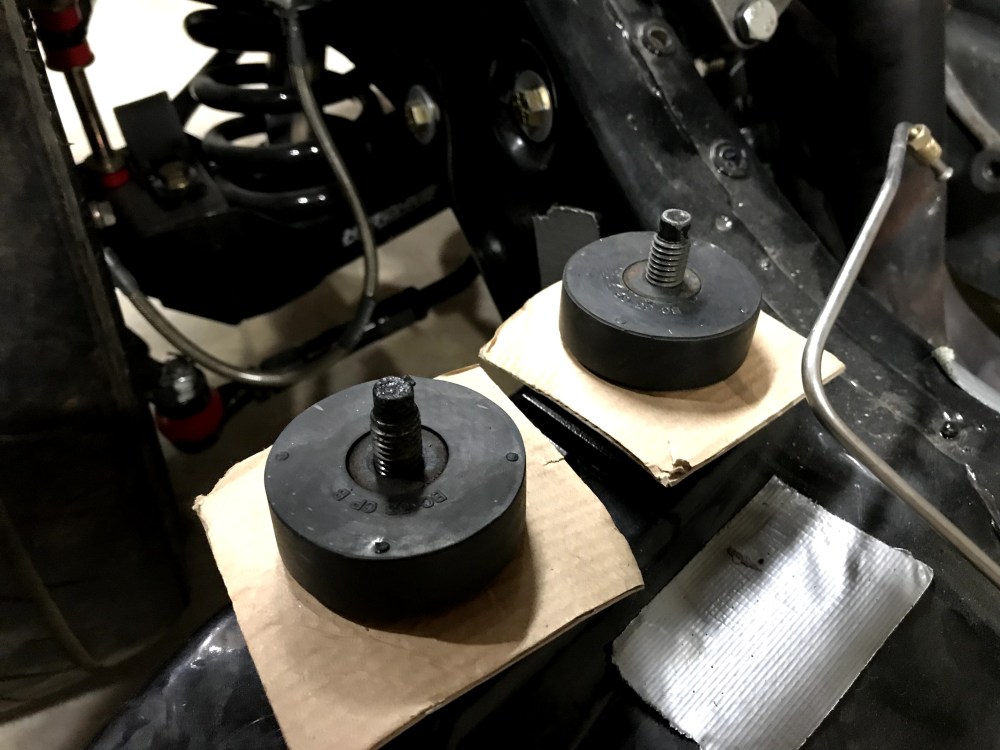

IMG_2004.jpgnew upper rubbers mounts on – see how the fit over the lower rubber mount

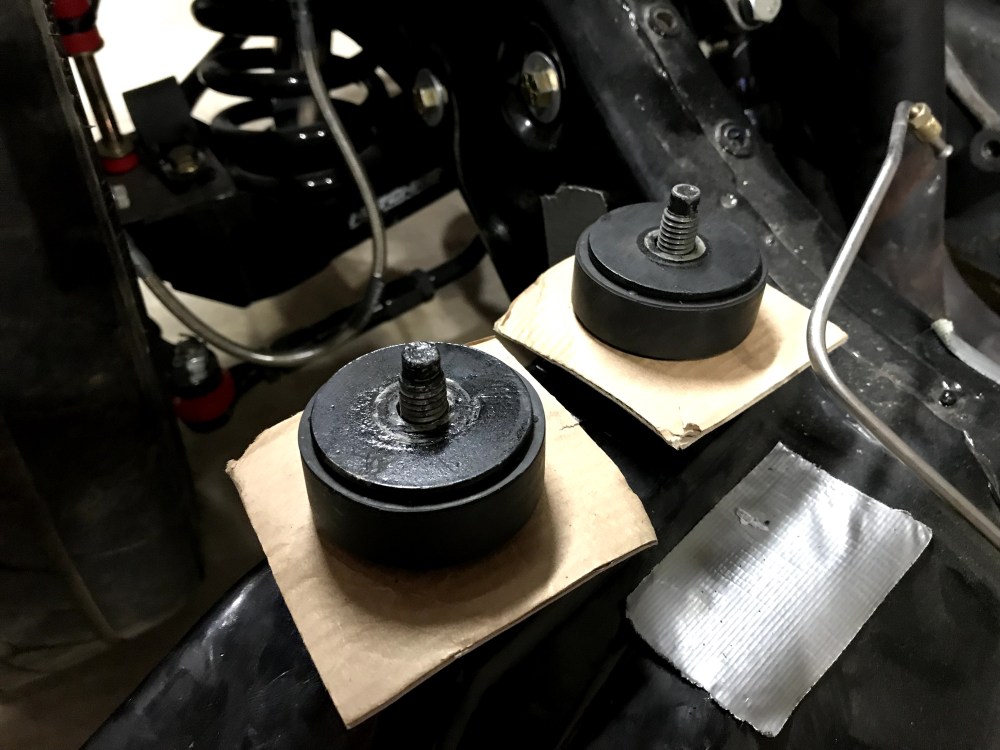

IMG_2005.jpgwasher installed

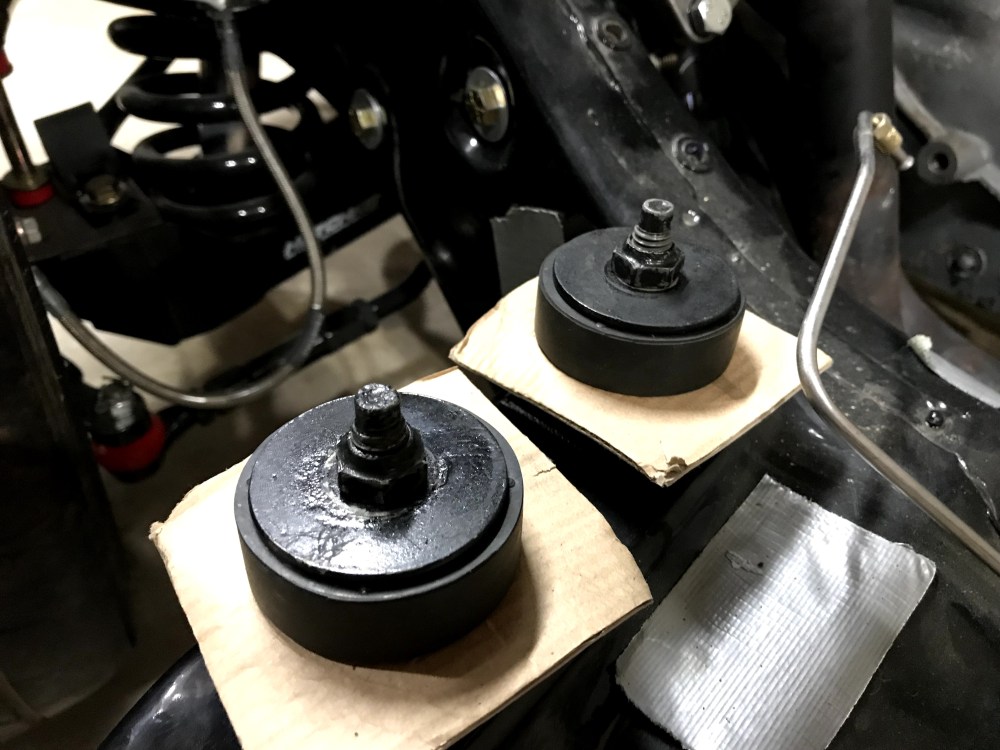

IMG_2007.jpgnut intalled

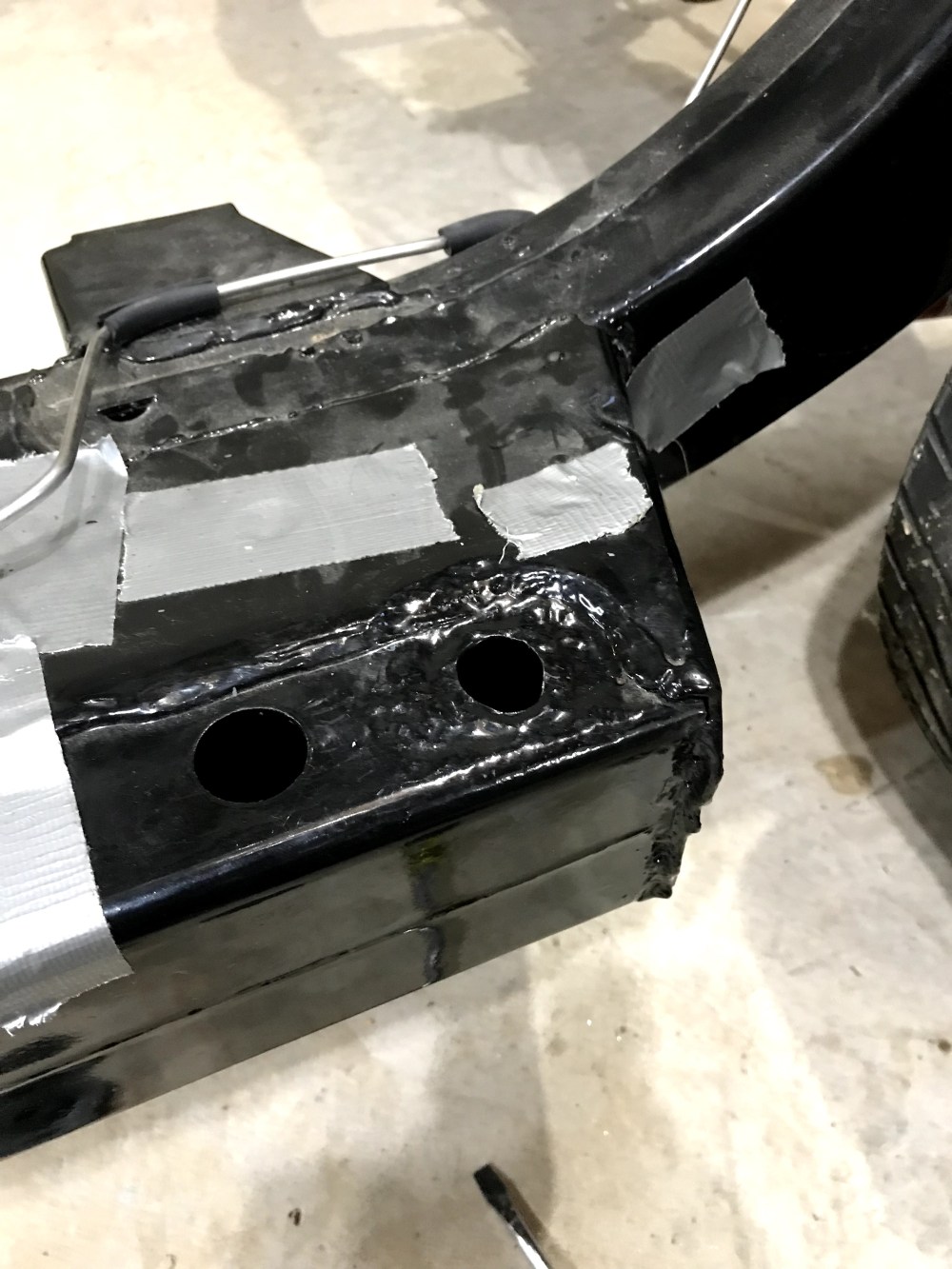

IMG_2010.jpgnext mount will be in front of the rear tire where the frame turns 90 degrees inward

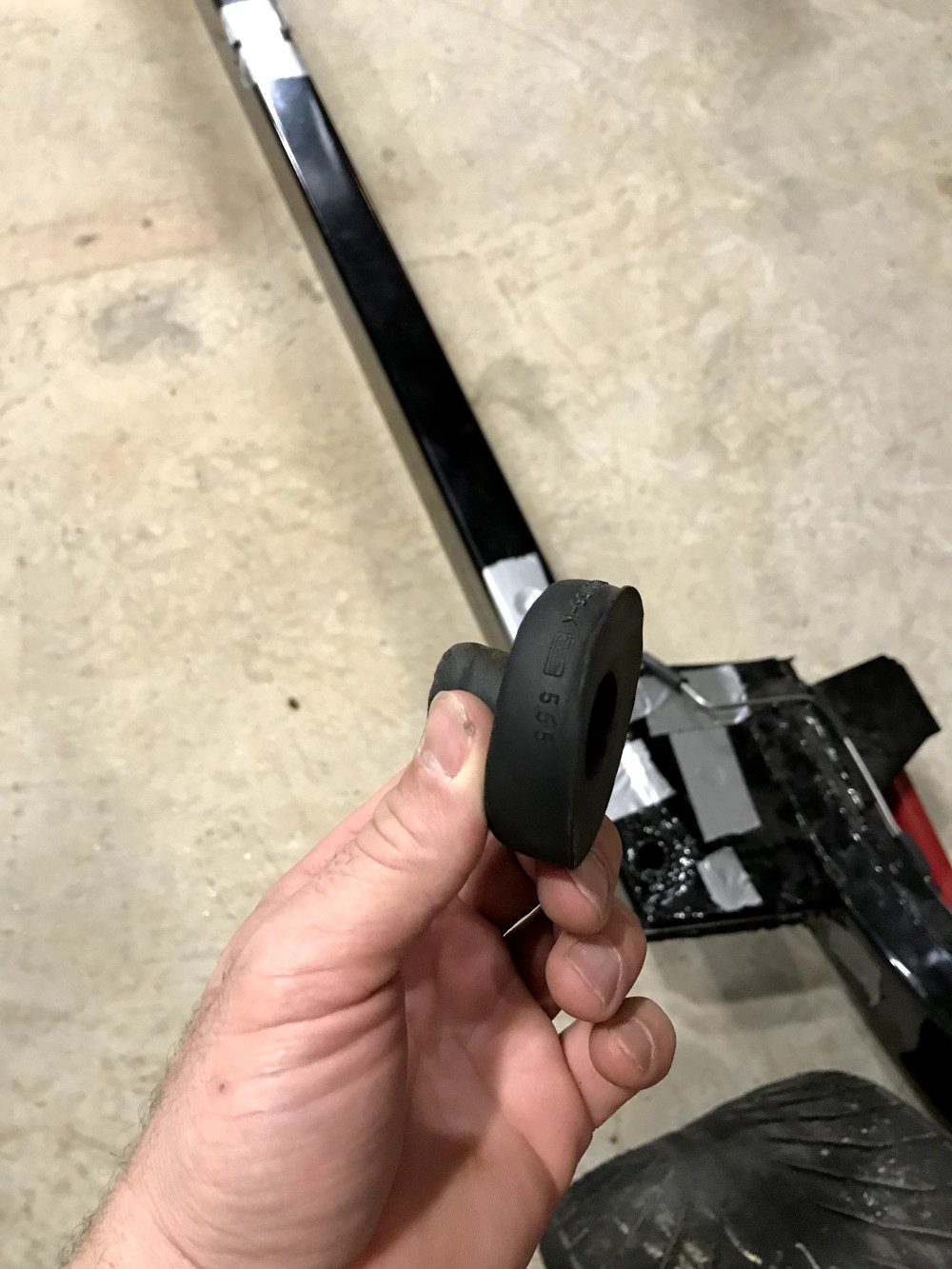

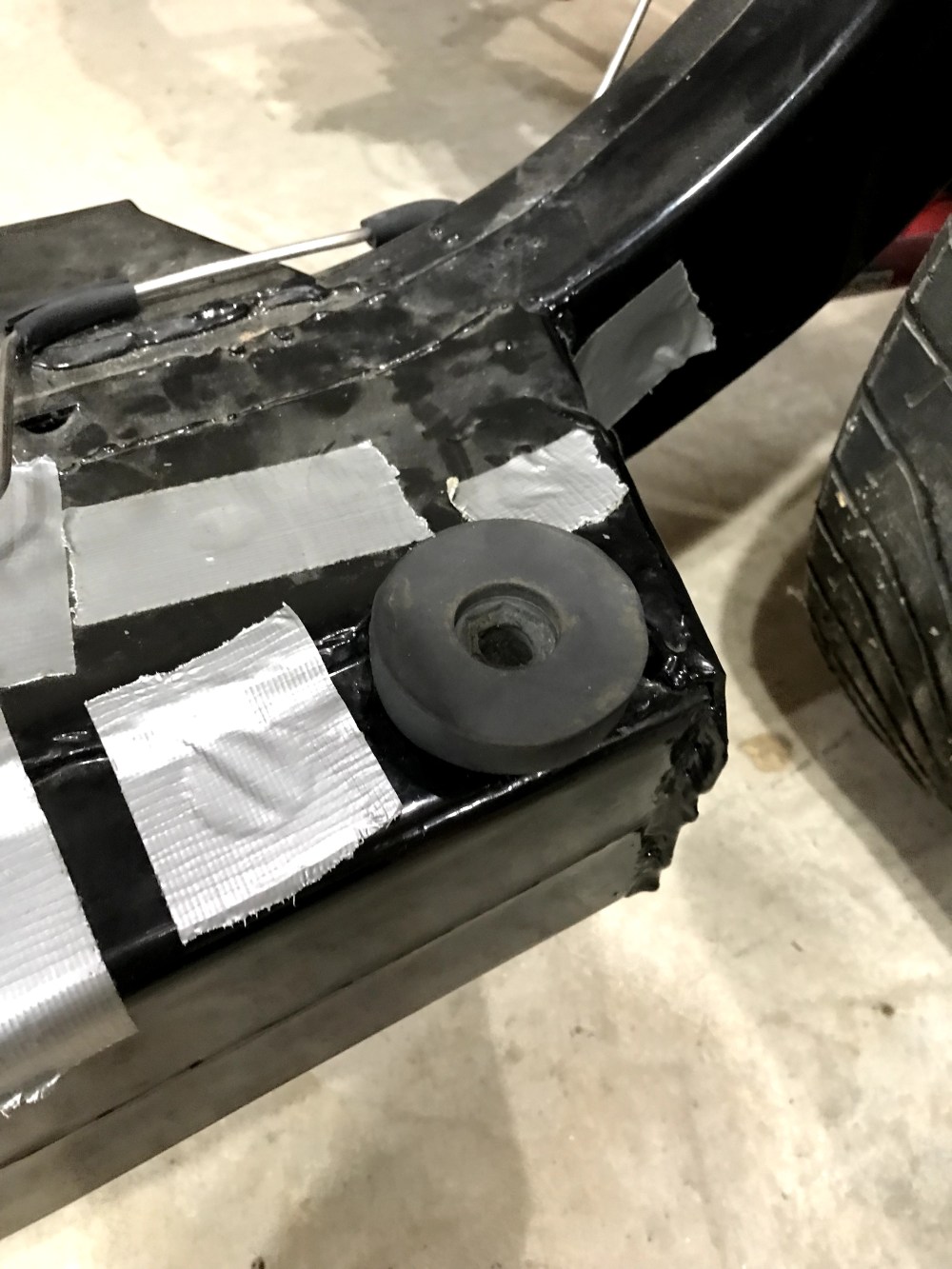

IMG_2034.jpgThis rubber was not used on this area – But the one that I think goes here would not fit – This rubber is another original that came from the firewall mount on a parts car I have

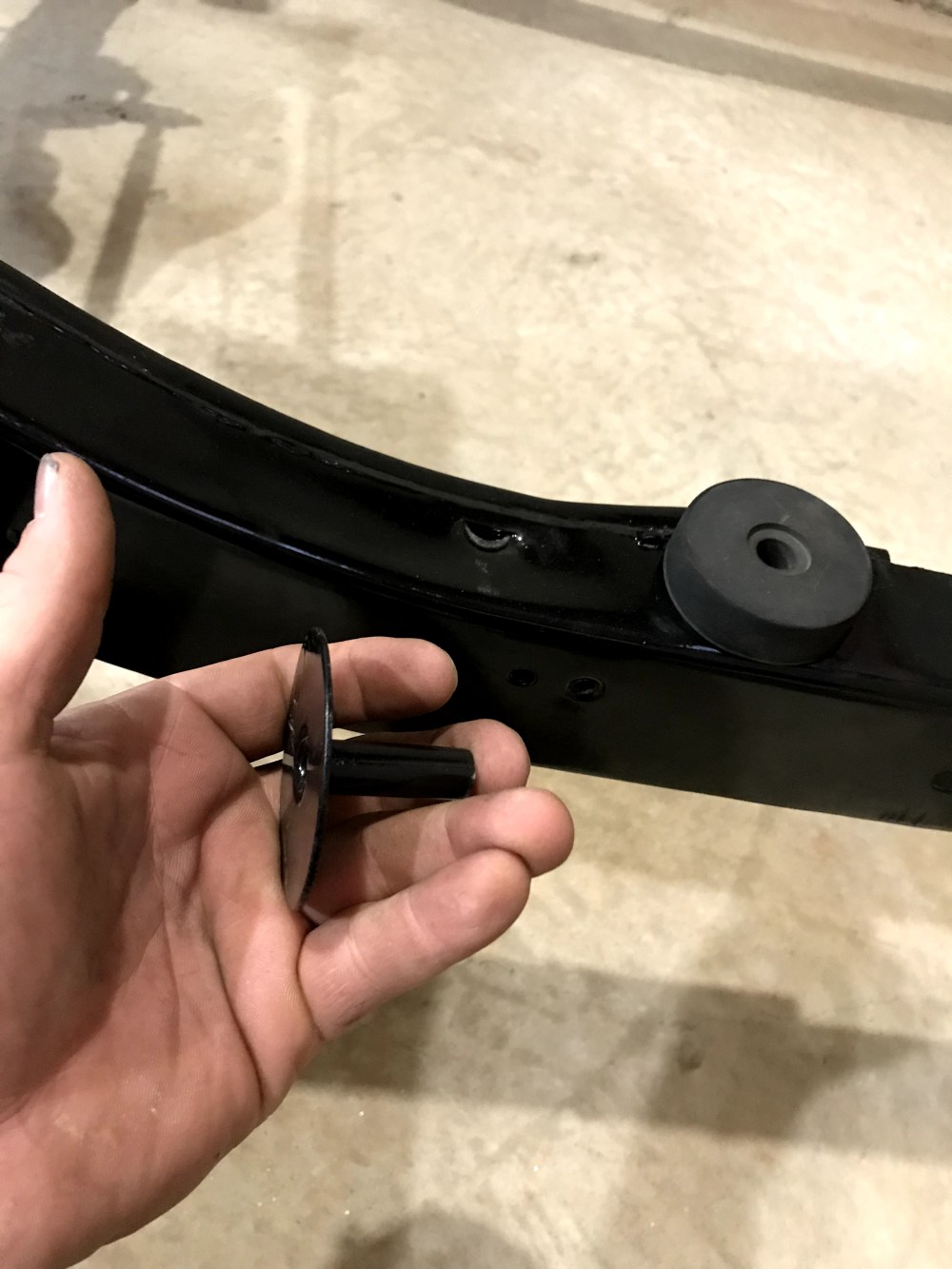

Something I made with a washer & bolt – It will serve as a insert and metal pad on top of the rubber mount

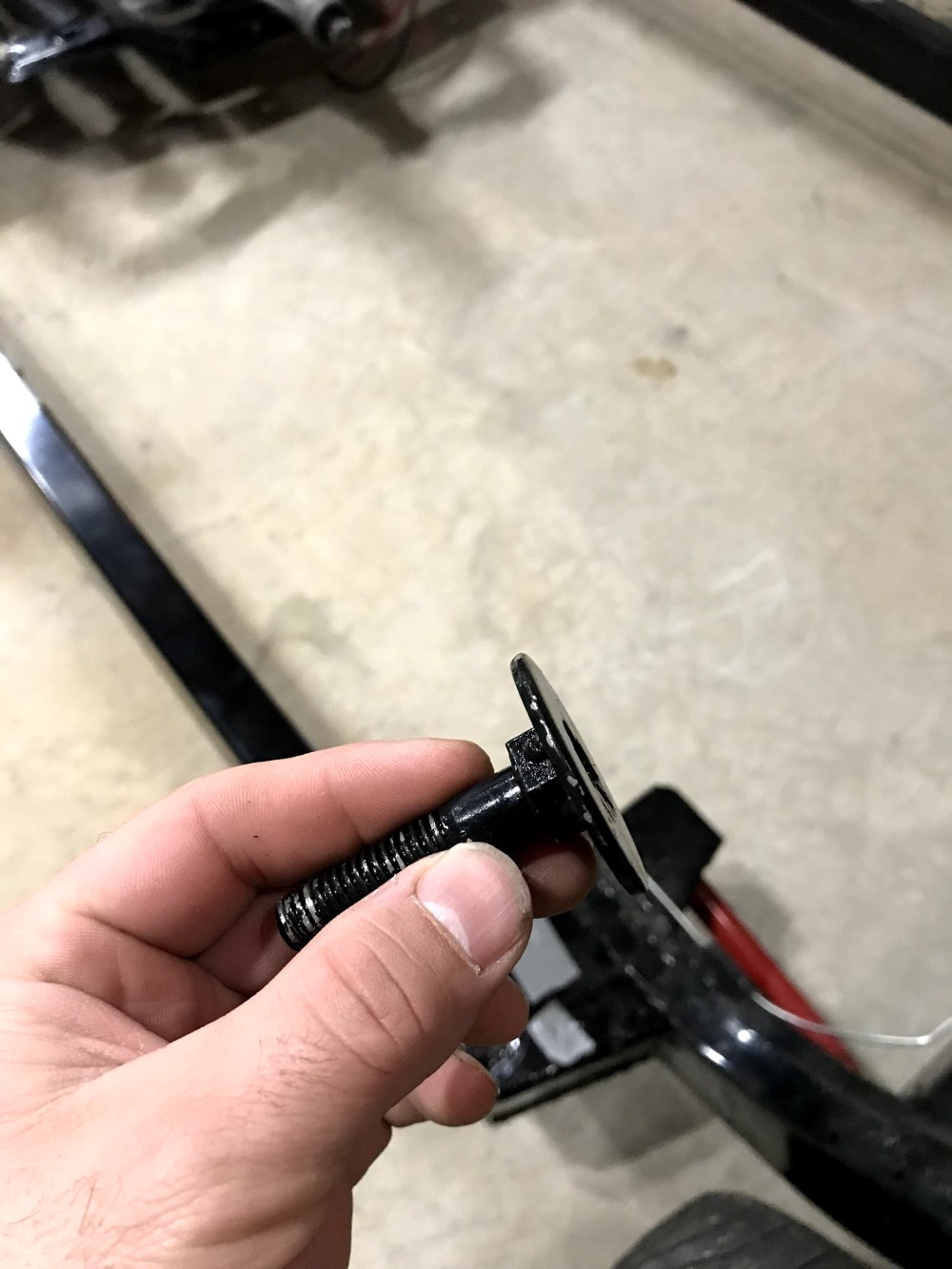

IMG_2033.jpgprimed & painted black

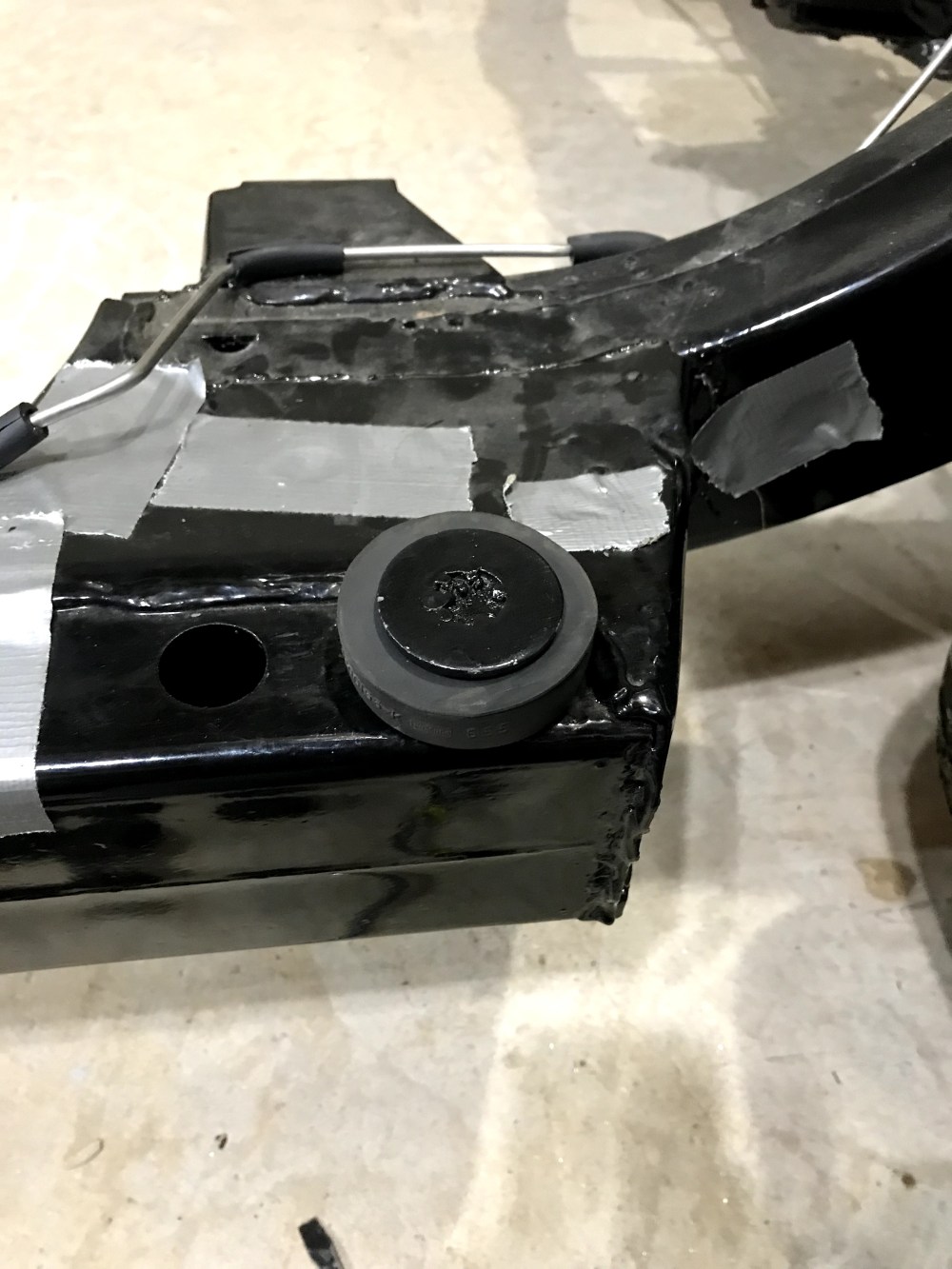

IMG_2012.jpgThis mount does not directly bolt to the body – it just sits on top of the frame (1 of 4 like this – 2 on each side)

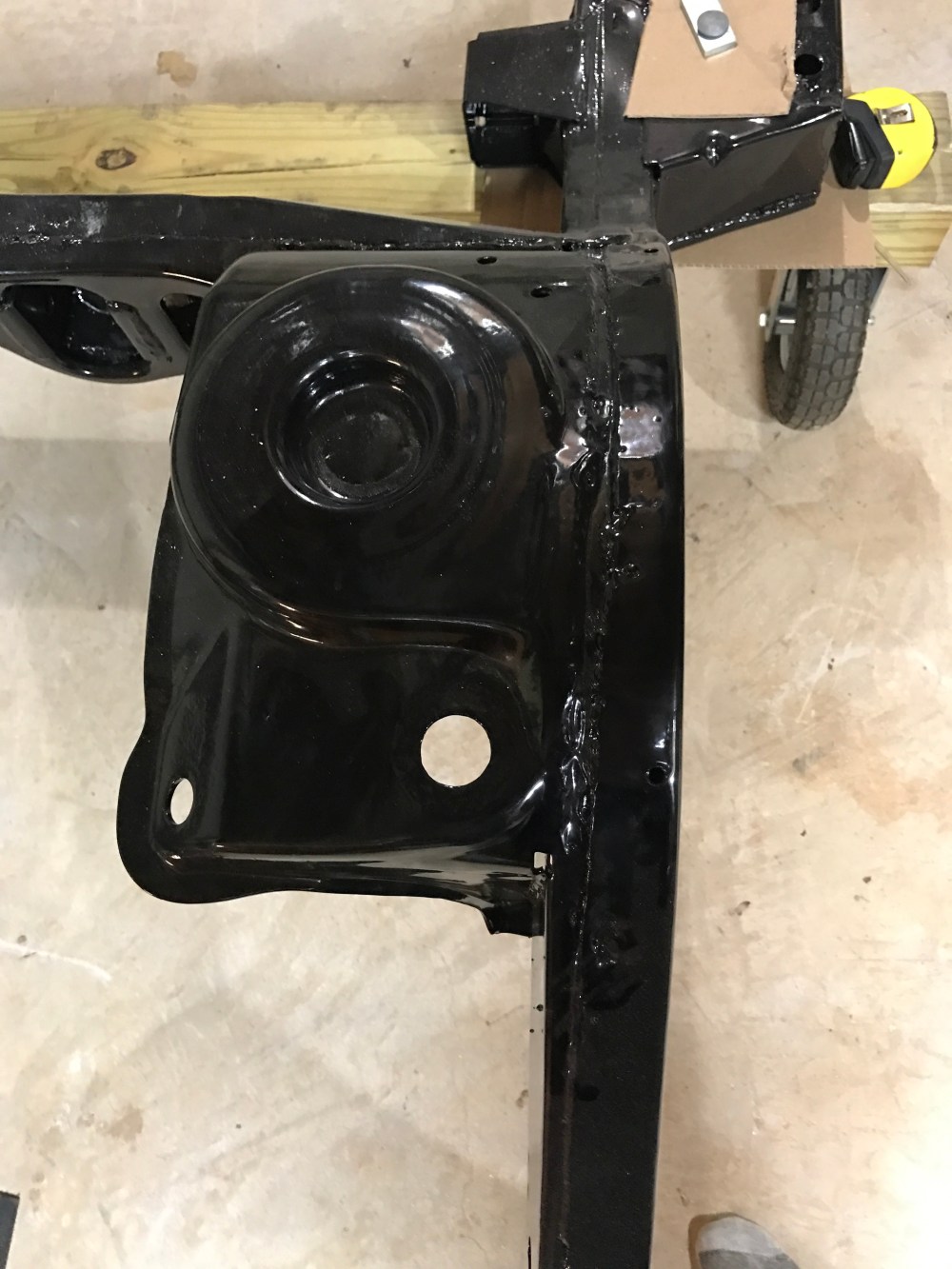

IMG_1352.jpgnext mount will be the one above the axle – Right beside the shock mount



IMG_2023.jpgtop mount & metal insert / pad installed – it goes inside & on top of rubber mount

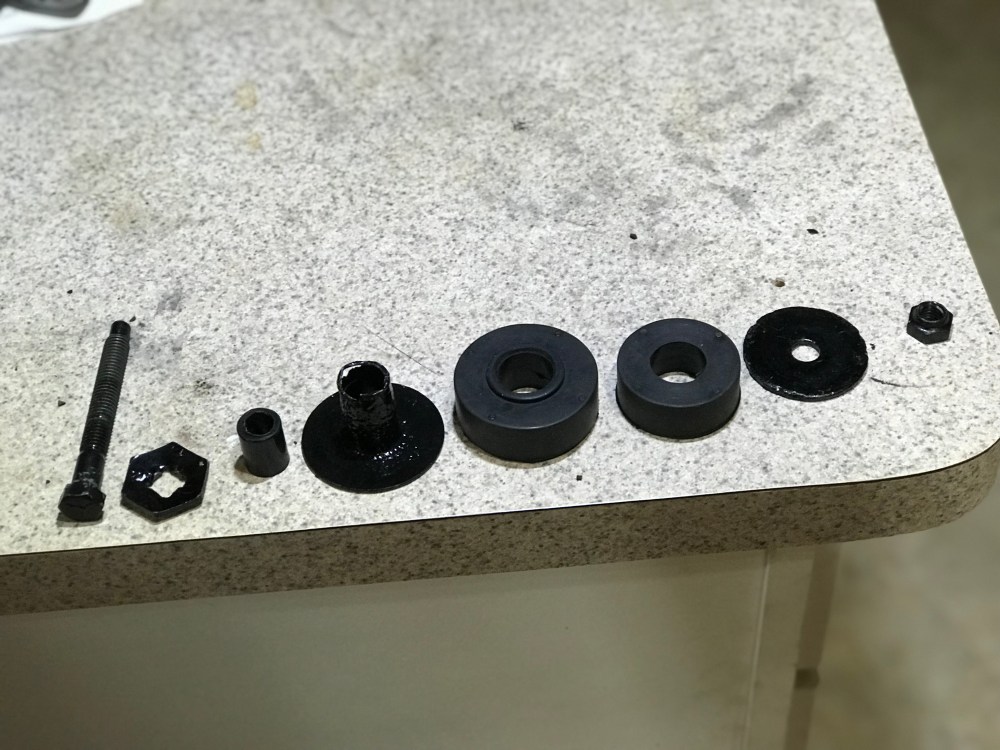

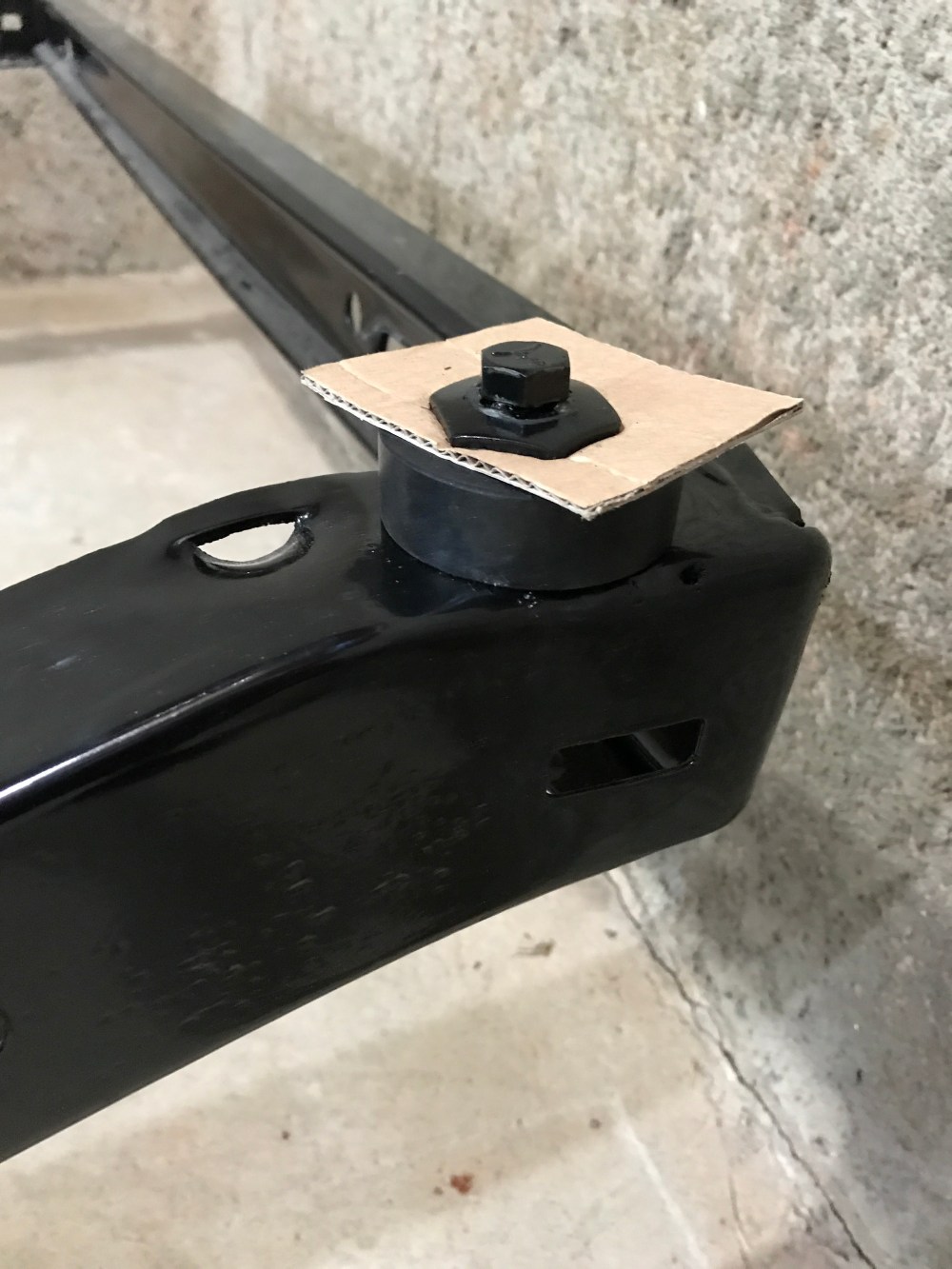

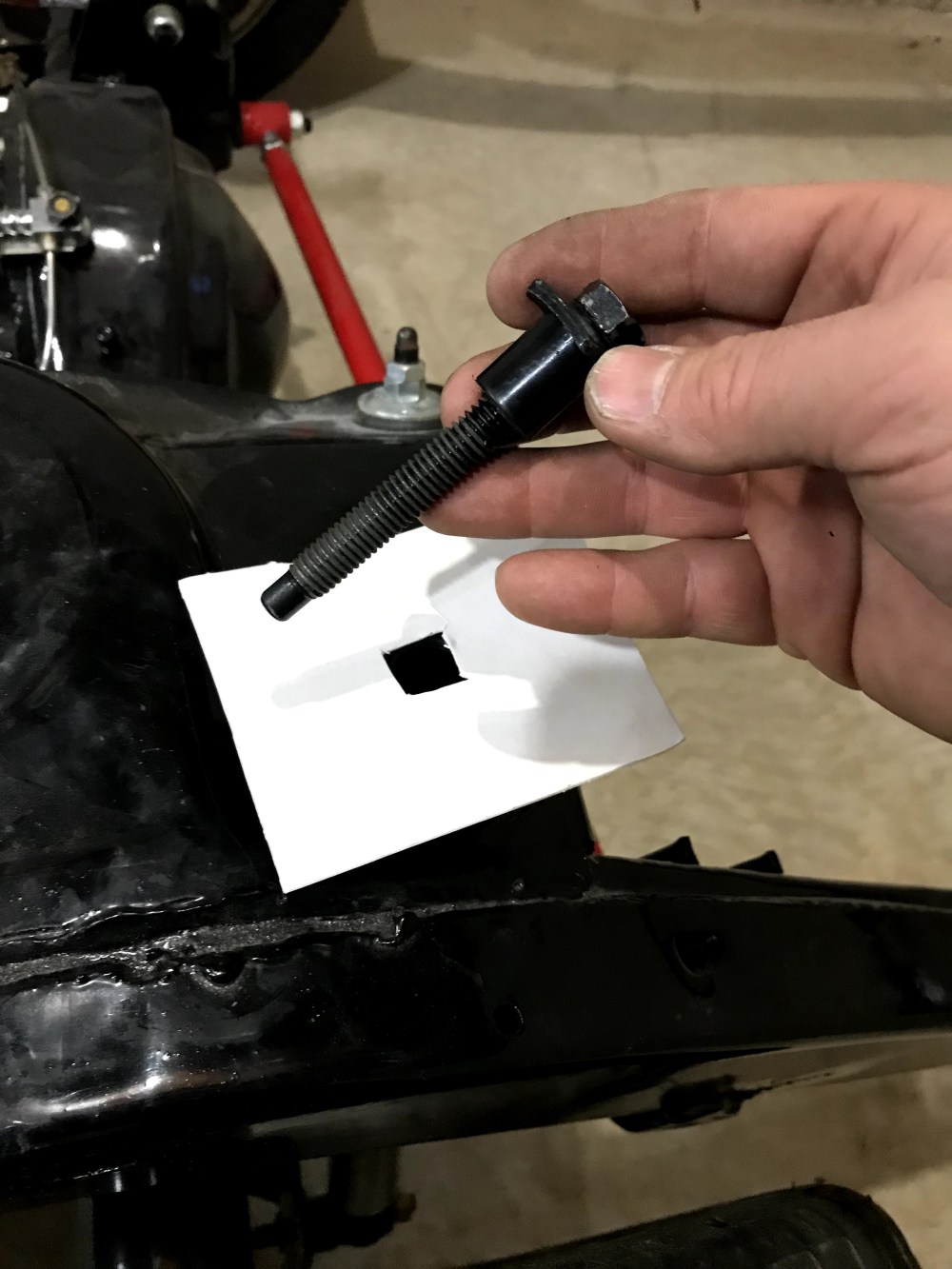

IMG_2025.jpgThe cardboard once again represents the body – The diameter inside of the mount is larger than the diameter of the bolt – So I found a rubber piece to go over the bolt that worked perfect to work as a bushing and fill the area

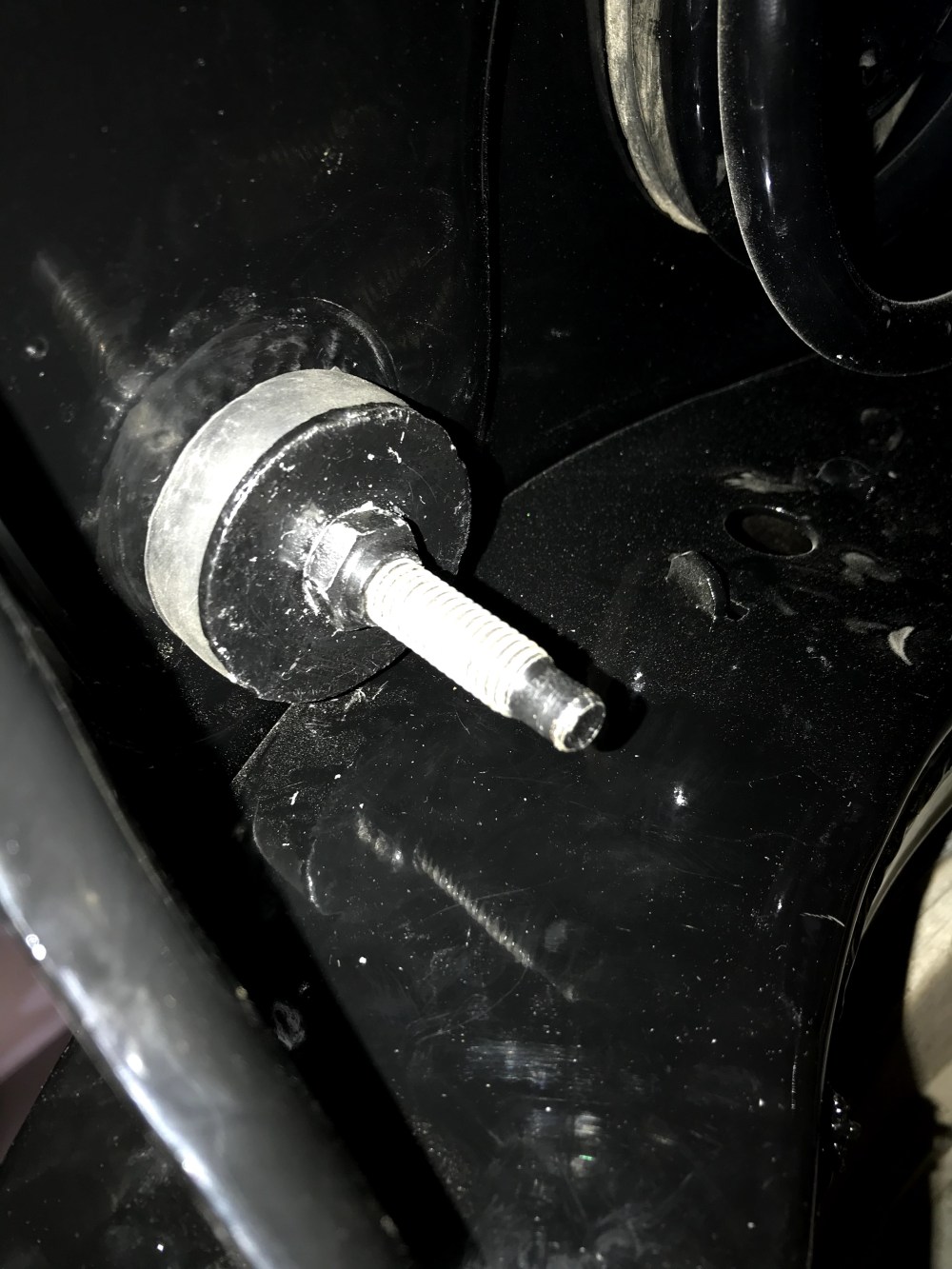

IMG_2027.jpgunderside mount, washer & nut installed


IMG_2001.jpgnext mount is behind the axle – it is the other one that does not bolt directly to the body

IMG_1983.jpgmushroom looking rubber mount with hole in the middle & metal insert – both are cleaned up originals

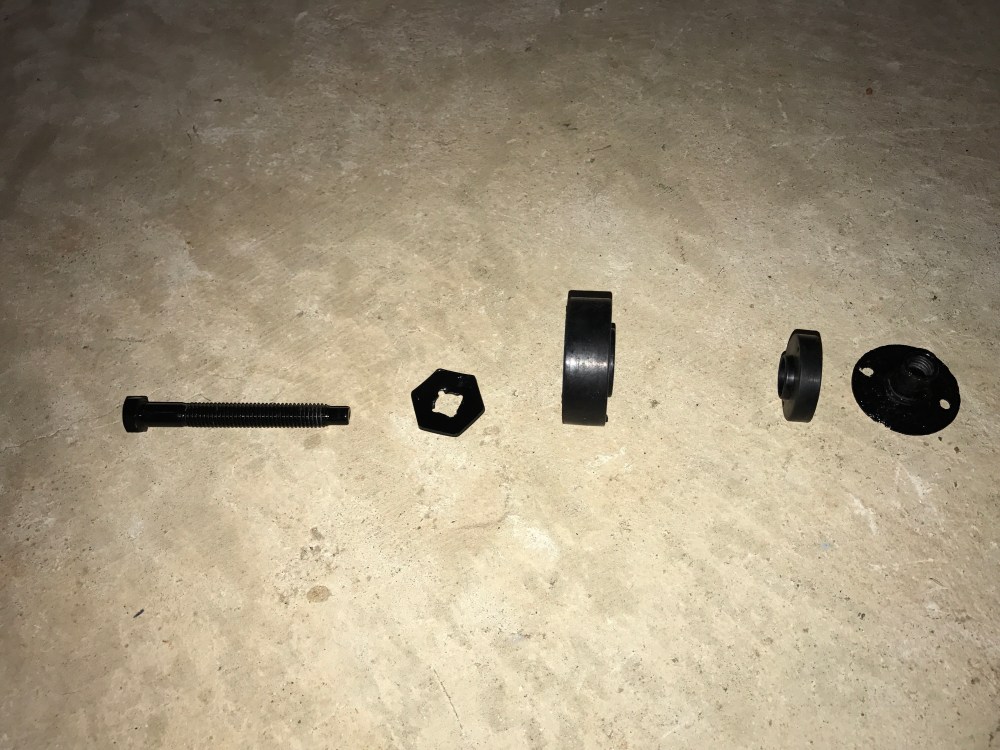

IMG_7242.jpglast mount is at the very rear – rubber mounts are new & metal pieces are reused
