Rear End / Gear

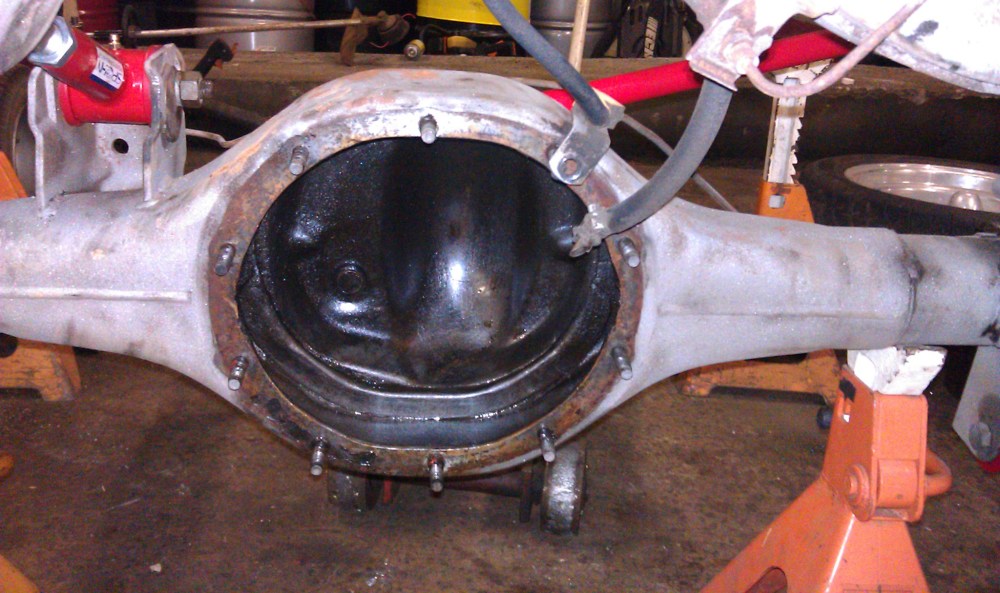

IMAG0369
Gear housing removed. Its has the small bearing housing with 28 spline axles.
IMAG0370
about to disassemble
IMAG0371
about to disassemble

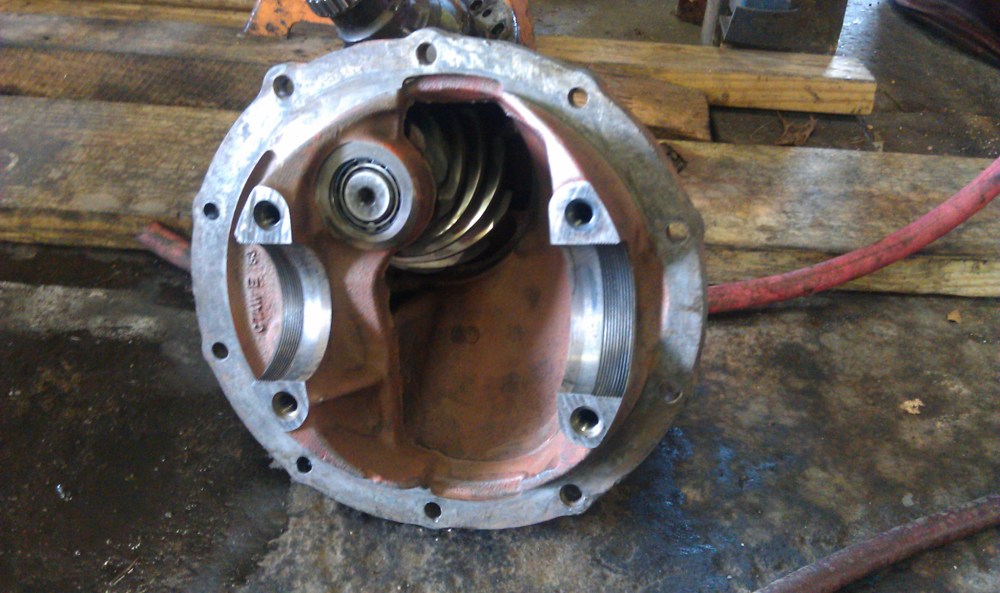

IMAG0377
all cleaned up
IMAG0373
the 3:70 ratio Richmond gear is still in good shape. Installed back in 98
IMAG0378
the old limited slip
IMAG0374
New Detroit locker http://www.summitracing.com/parts/DTL-187SL13A/
IMAG0376
mounting the locker to the ring gear

img_8187

Freshly powder coated rear end housing

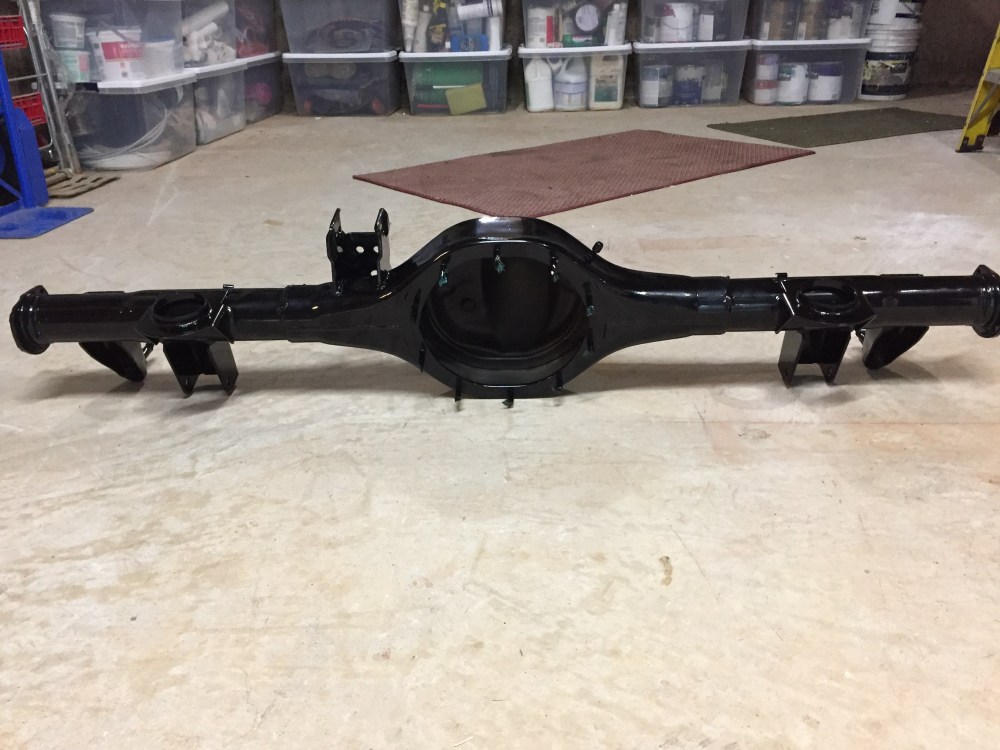

img_8189Freshly powder coated rear end housing

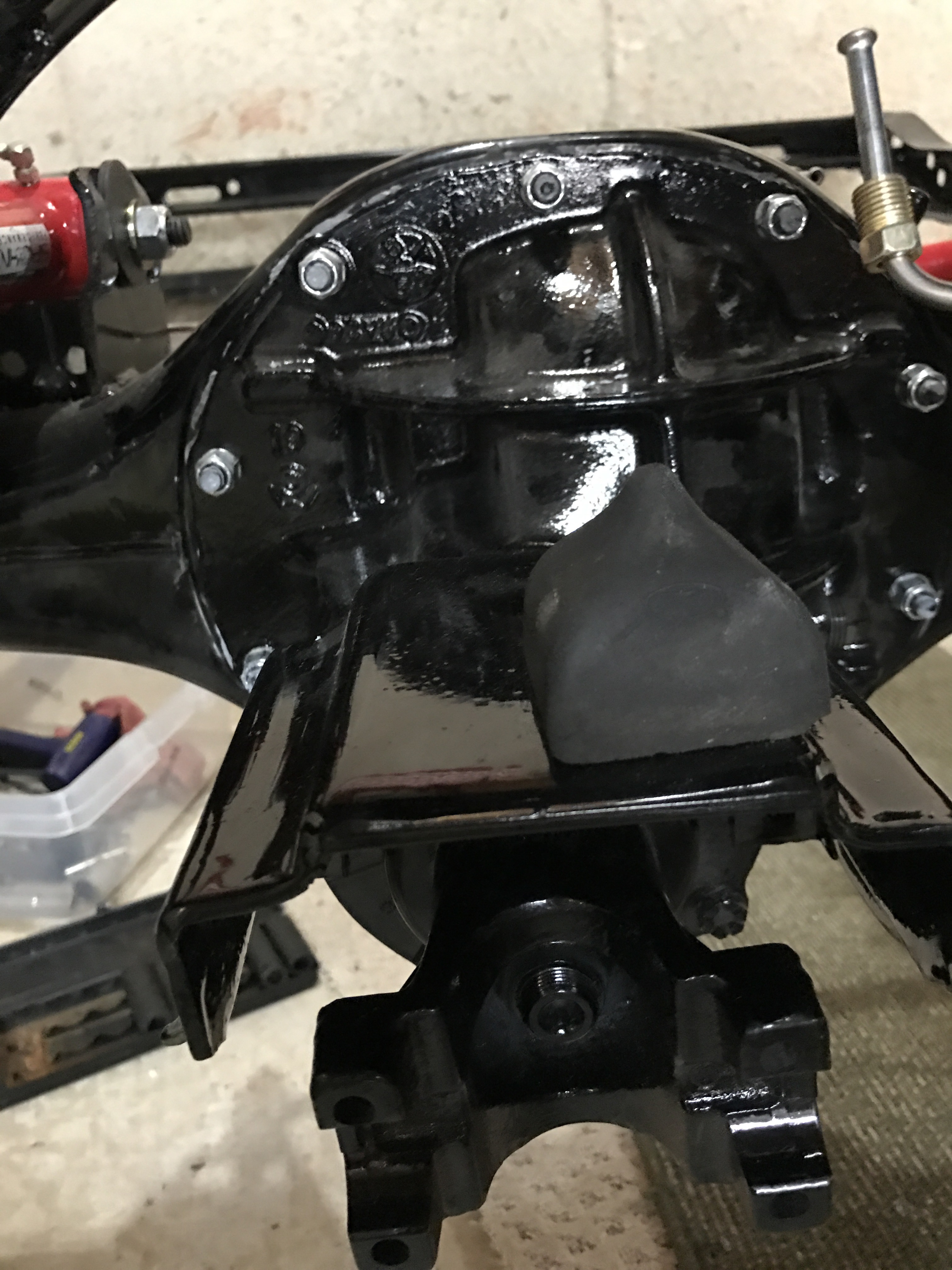

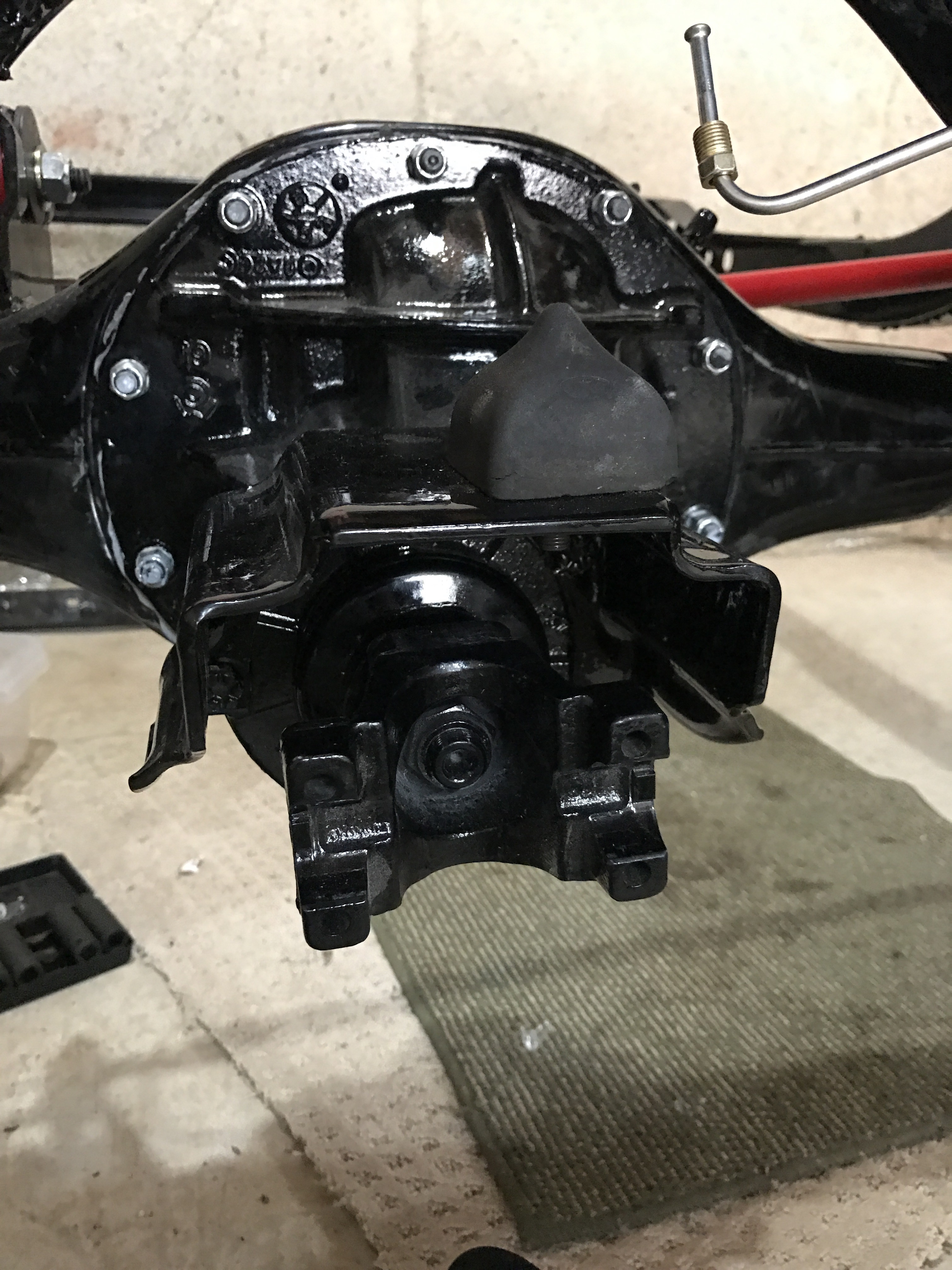

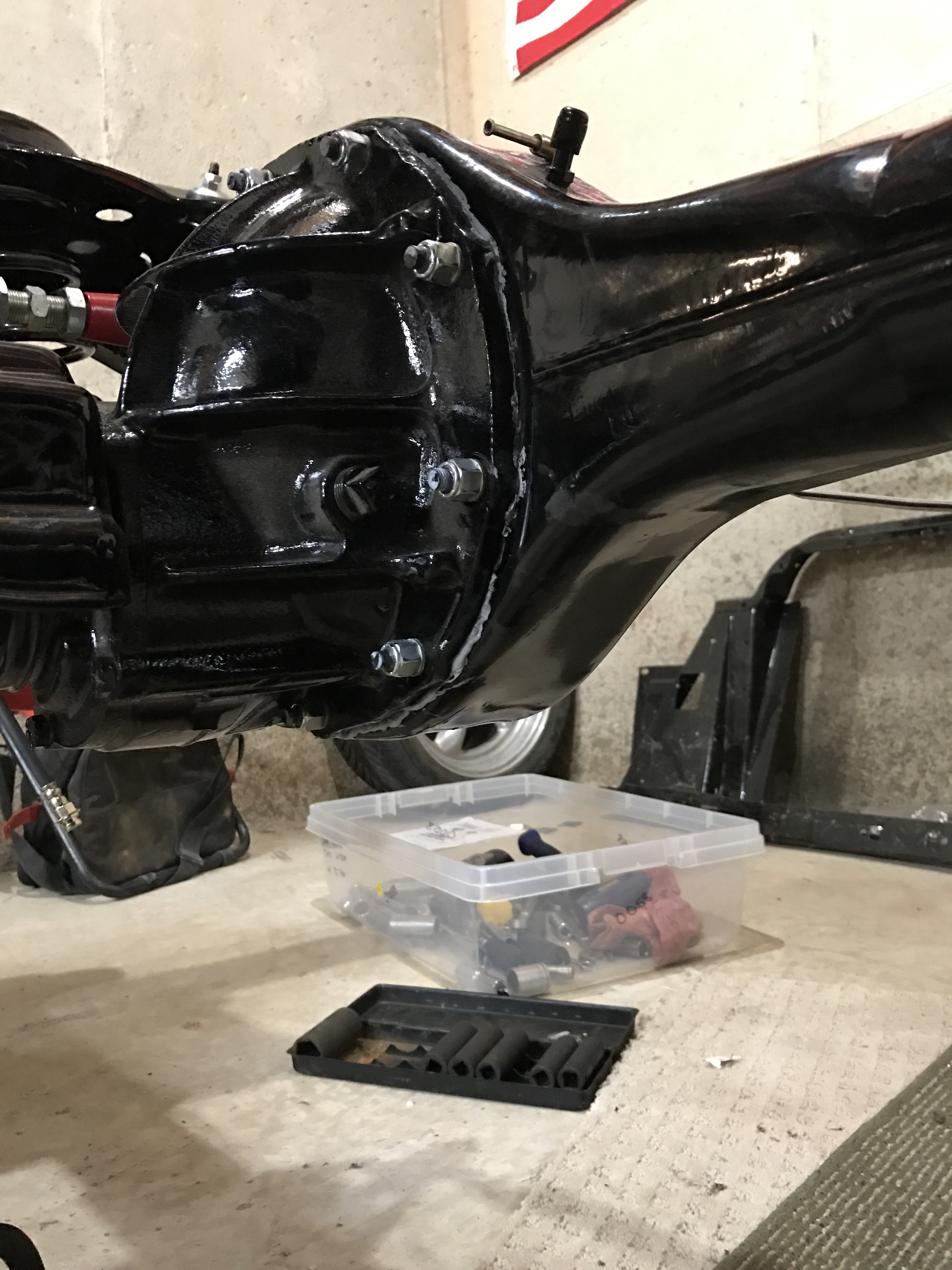

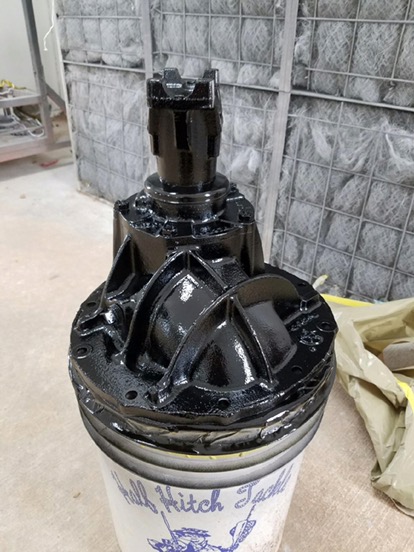

Rear chunk assembled & freshly painted

Installed using diesel grey silicone

img_4654

6 Comments Add yours

  1. Eric says:

    Thanks, Do you have a close up picture of it attaching to the rear end housing? I think mine might be broken and it’s hard to see because there a lot of thick grease everywhere.

    Like

    1. 66ltd says:

      I’ll look and see if I got one. What is your email address?

      Like

      1. Eric says:

        My email is 7LitreEric@gmail.com. I really appreciate any pics you can send of the rear end with the vent connection. FYI, I finally got my 7 litre to turn over and run for a few minutes this weekend. It sounds awesome, can’t wait to drive it the with the top down.

        Like

      2. 66ltd says:

        I’ll email pics

        Like

  2. Eric says:

    I have a 66 galaxie convertible 7 litre that I inherited from my dad. I noticed that there is a small rubber tube with a metal connector hanging down near the rear axle. The other end is attached up to the body going no where. So it seems like it is a vent for something. Do you know where the end with the metal connector should be connected? I’ve looked through all your pics and I think I can almost see it in a couple but not 100%.

    Like

    1. 66ltd says:

      That’s is a vent for the rear end…the metal end screws in top of rear end housing and the other end doesn’t connect to anything…just ends inside the rear frame crossmember

      Like
