Brakes – Rear

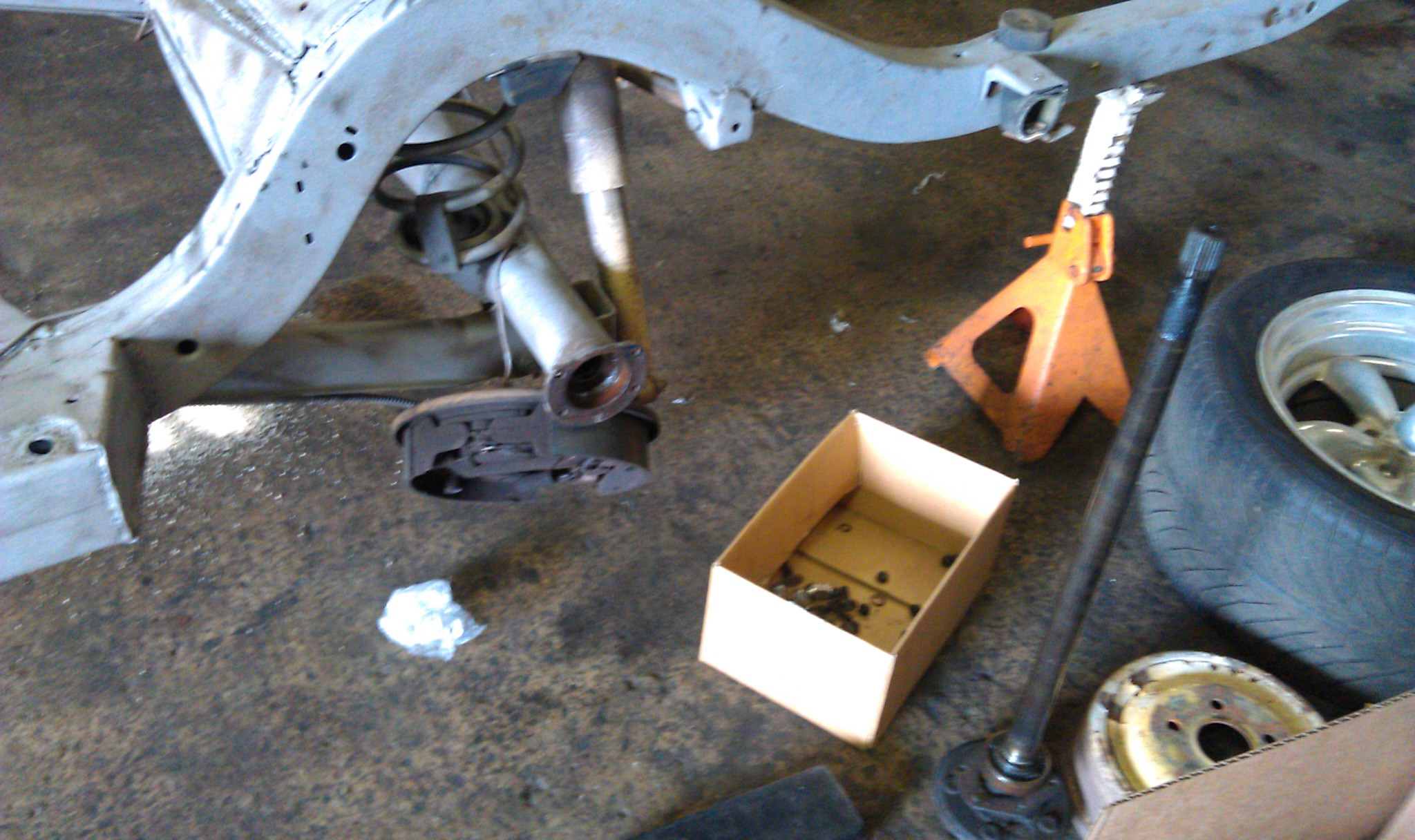

Rear drum brakes removed

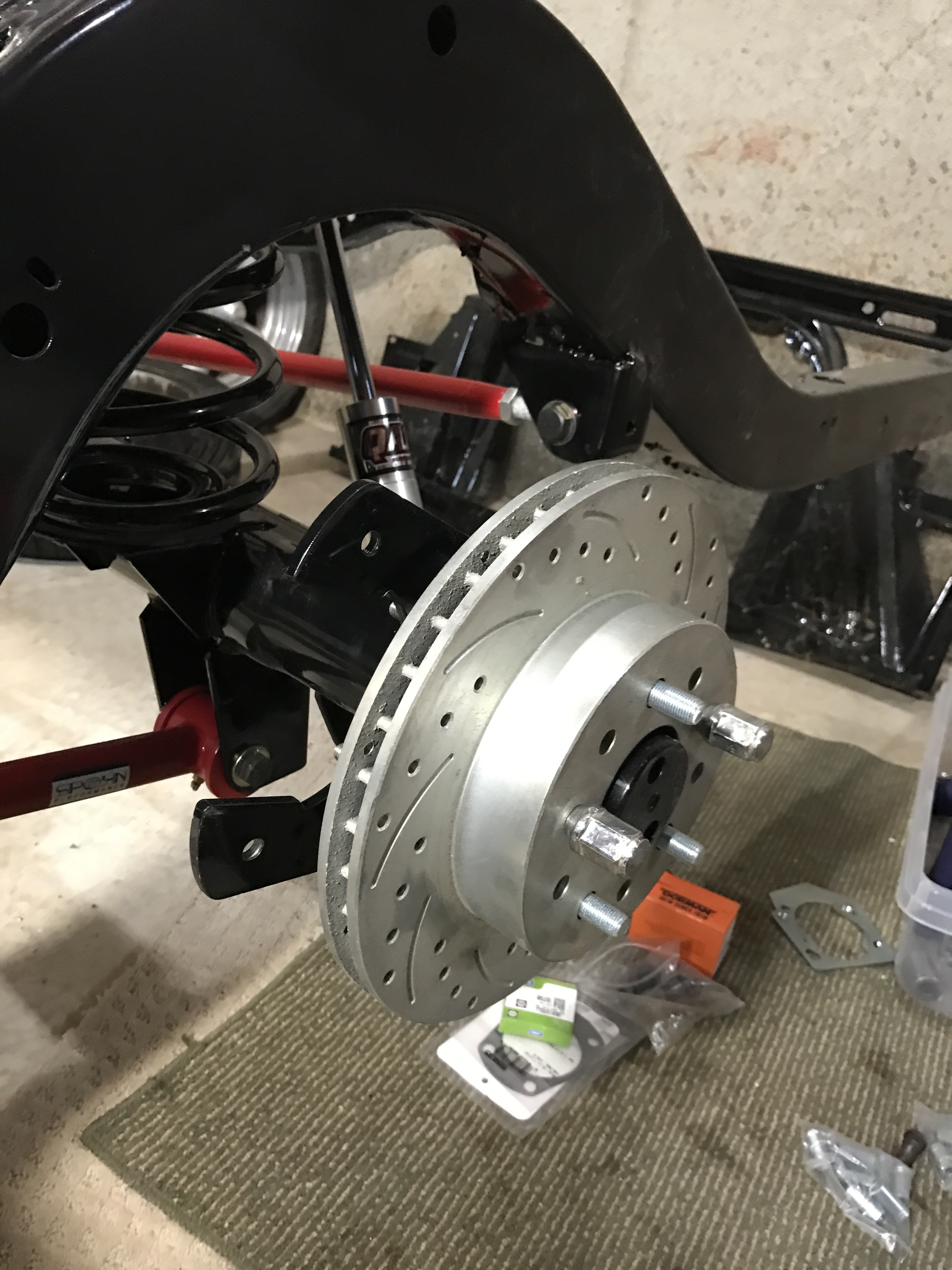

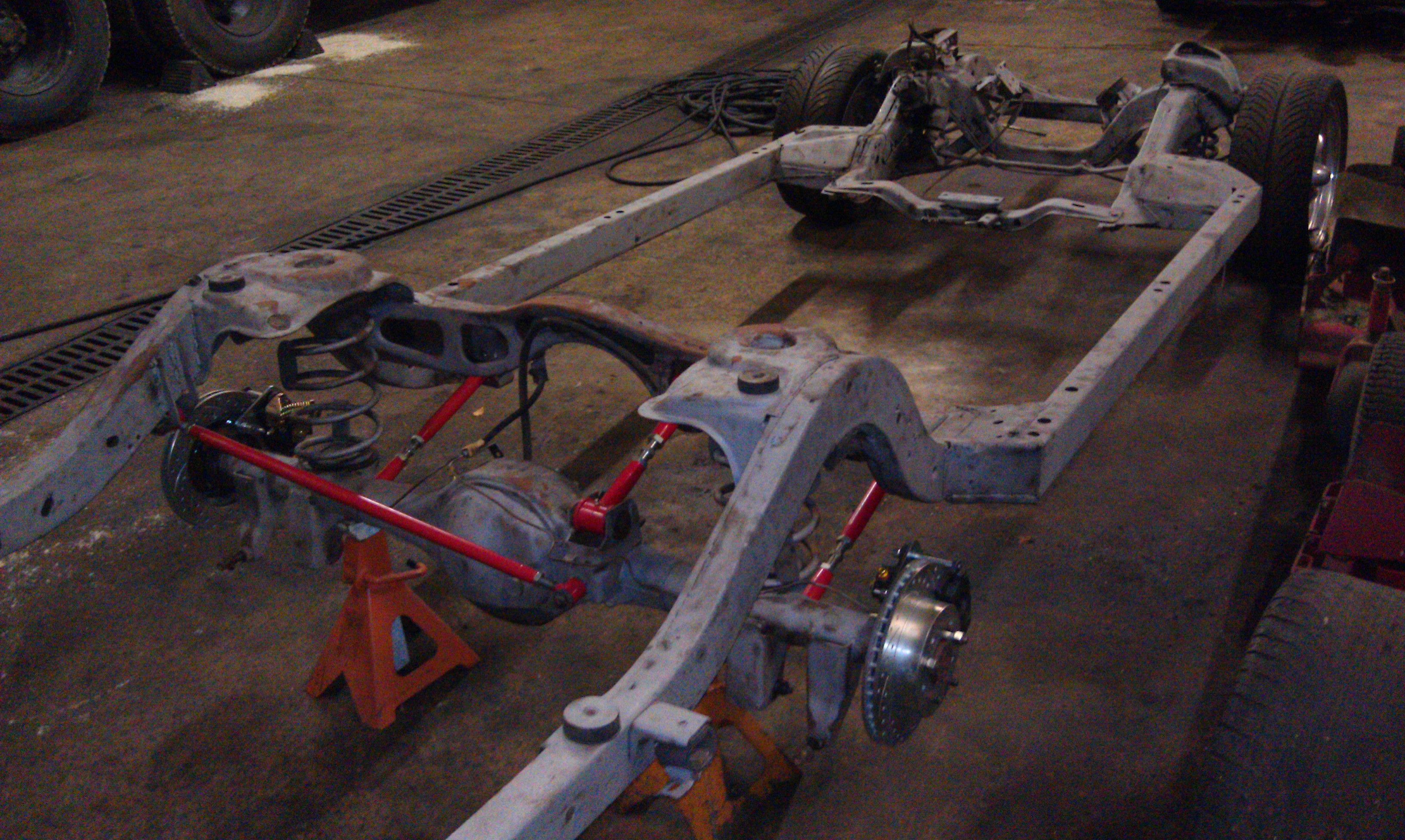

Test fitting the rear disc conversation by Right Stuff

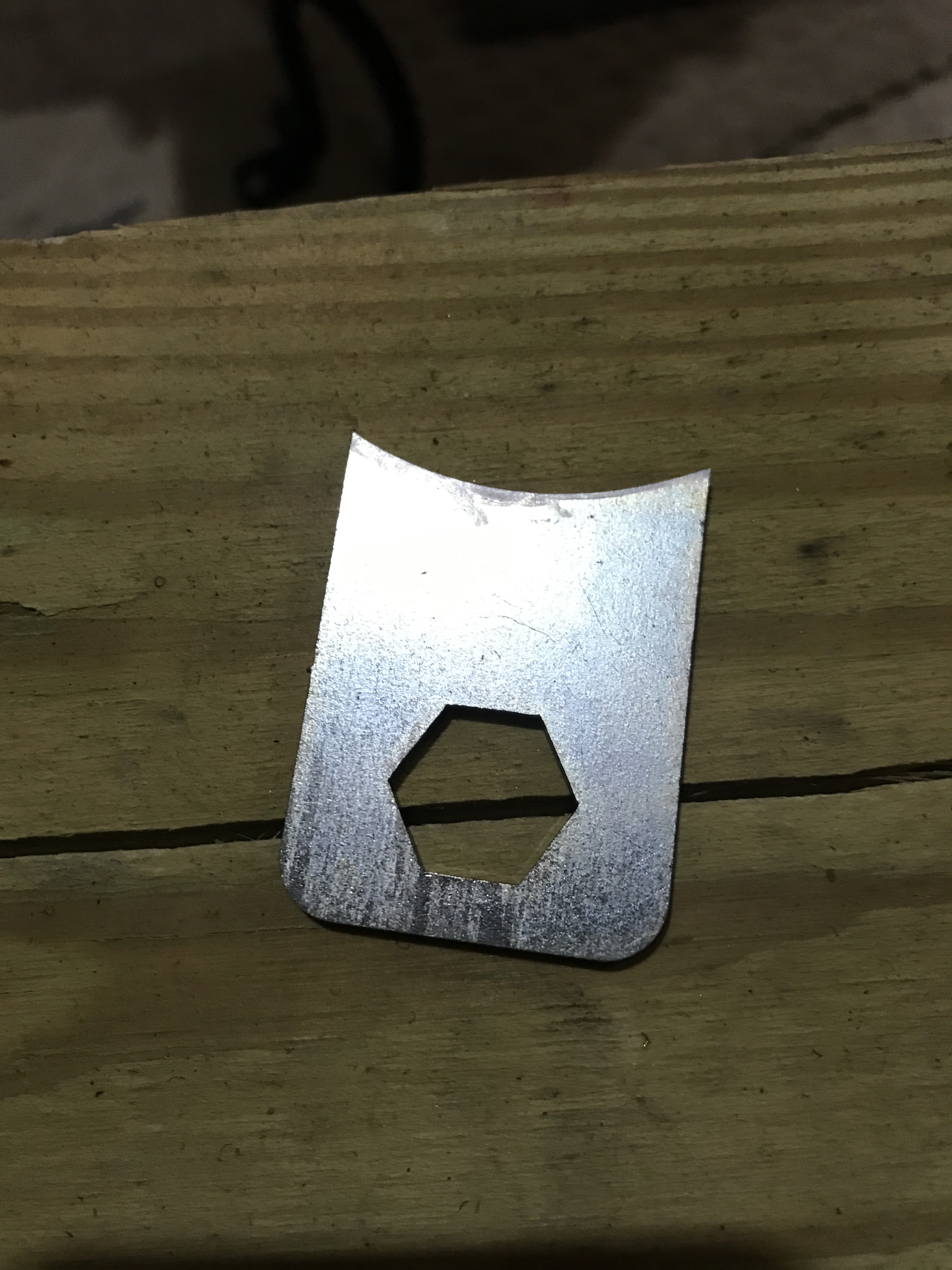

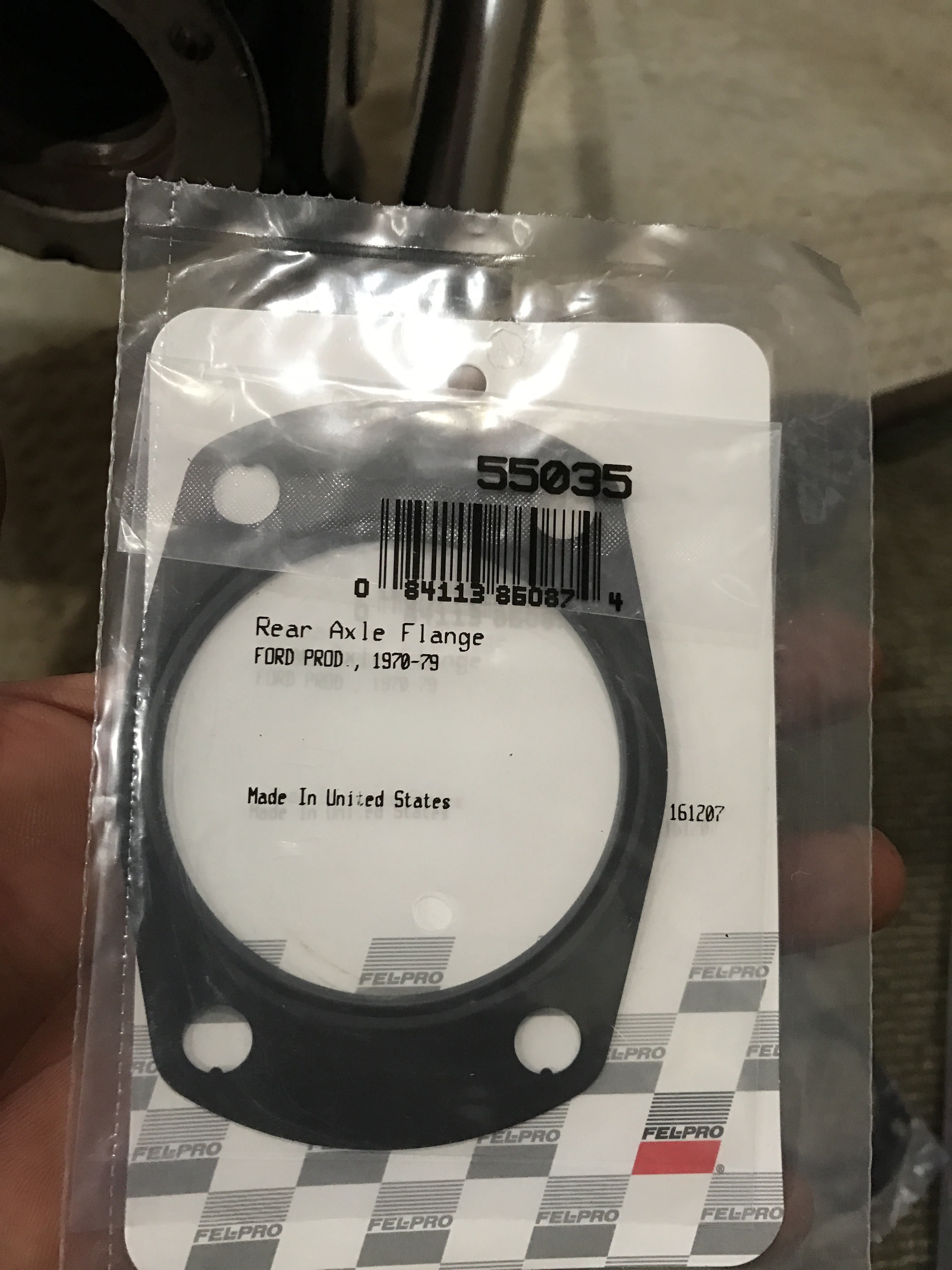

Axle flange metal gasket

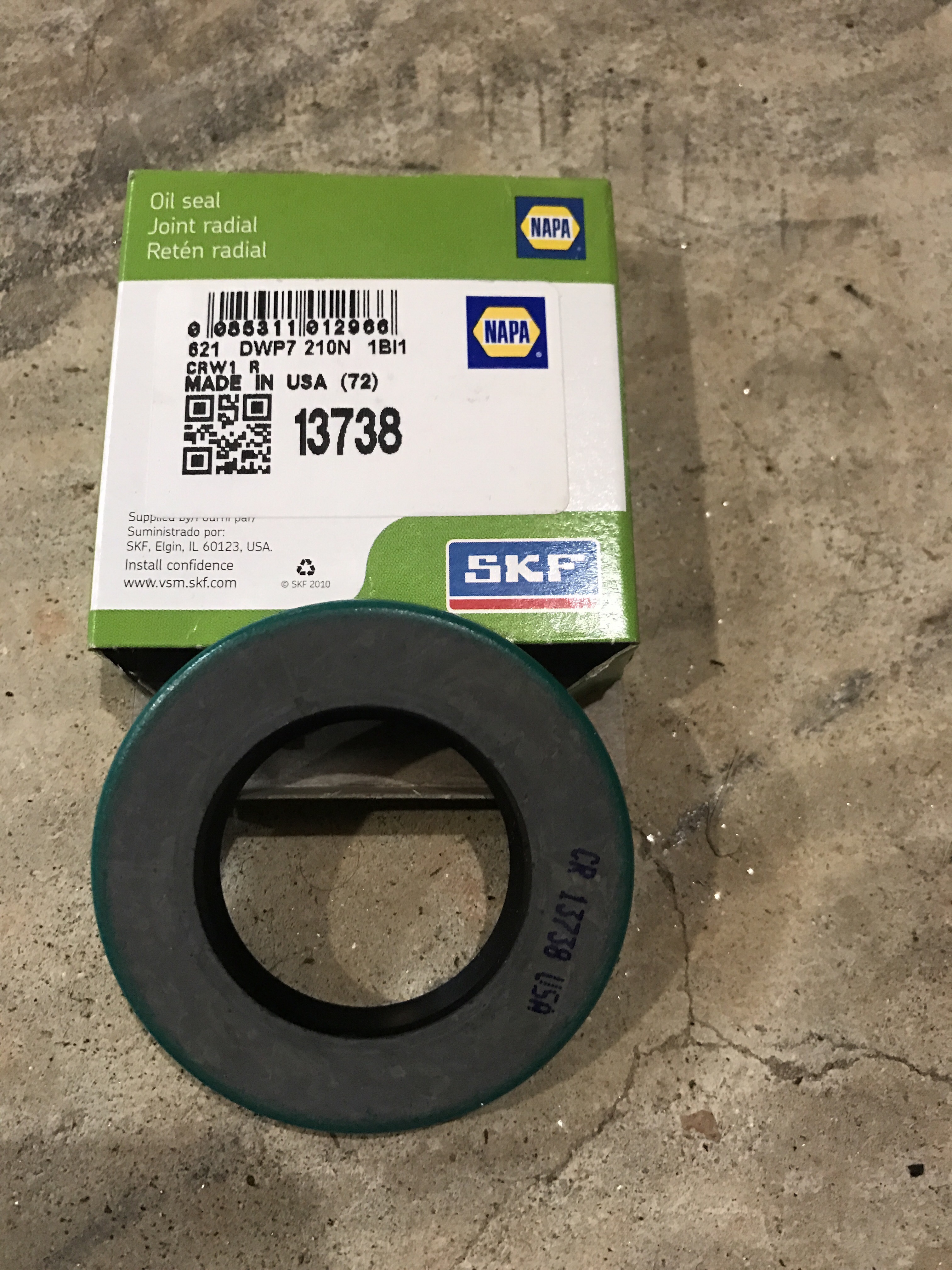

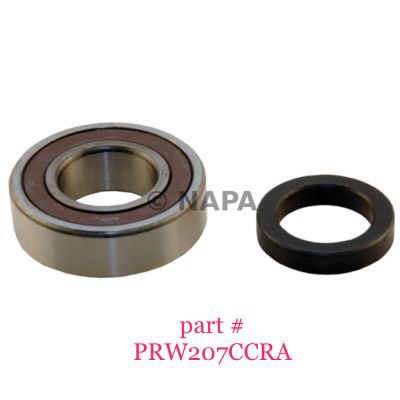

Wheel seal

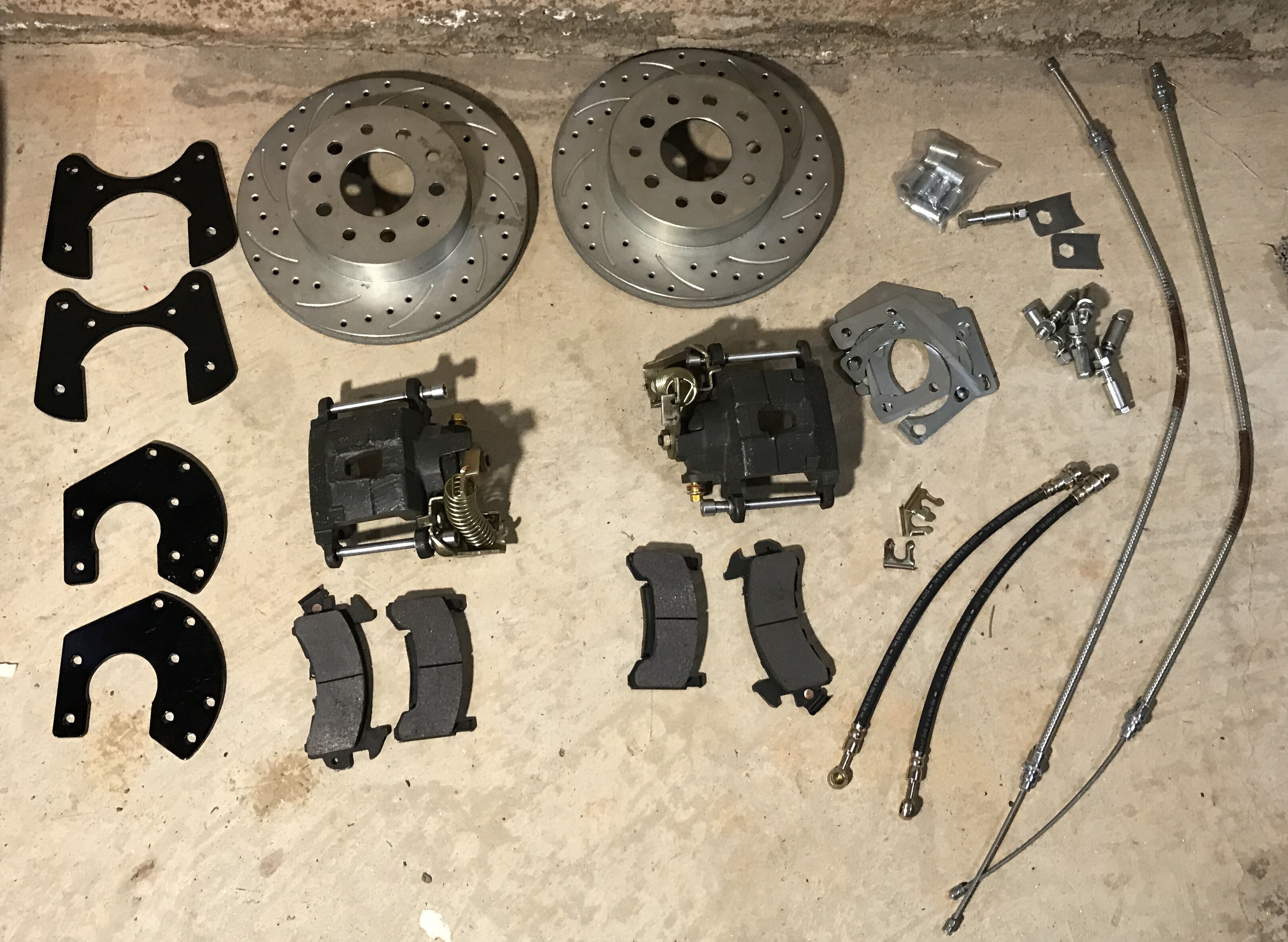

Right Stuff – kit # ZDCDS05

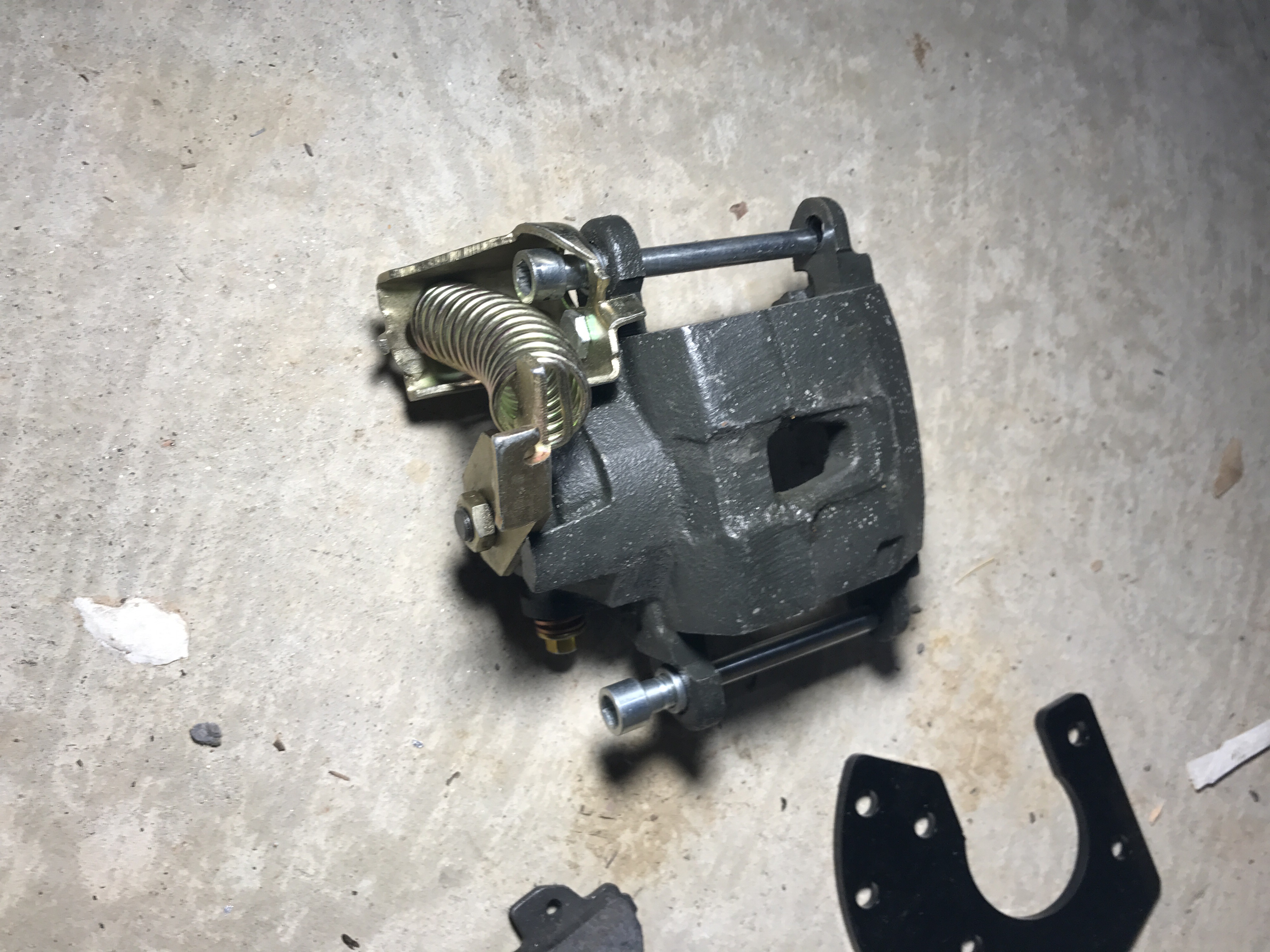

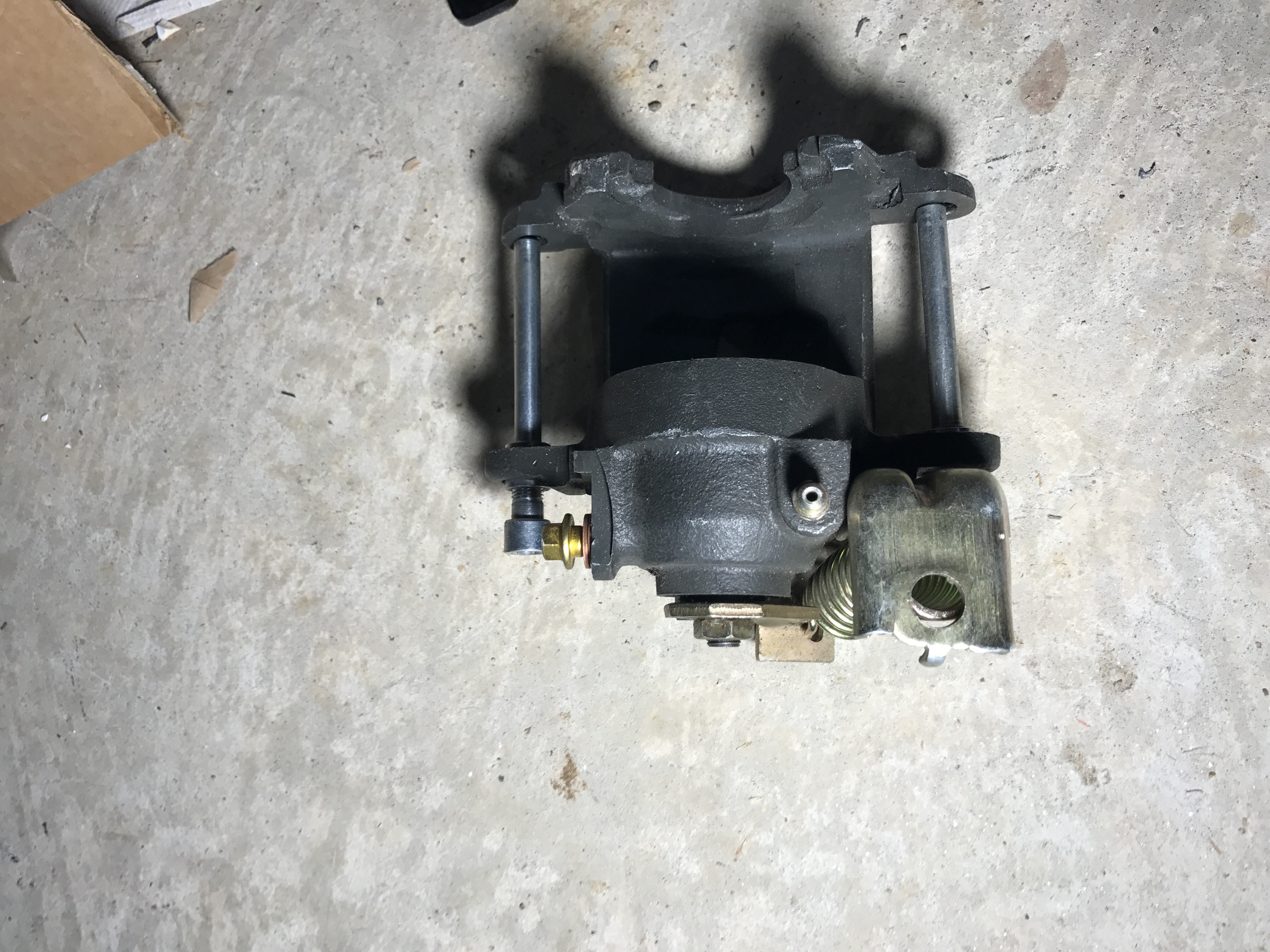

the caliper w/ parking brake feature

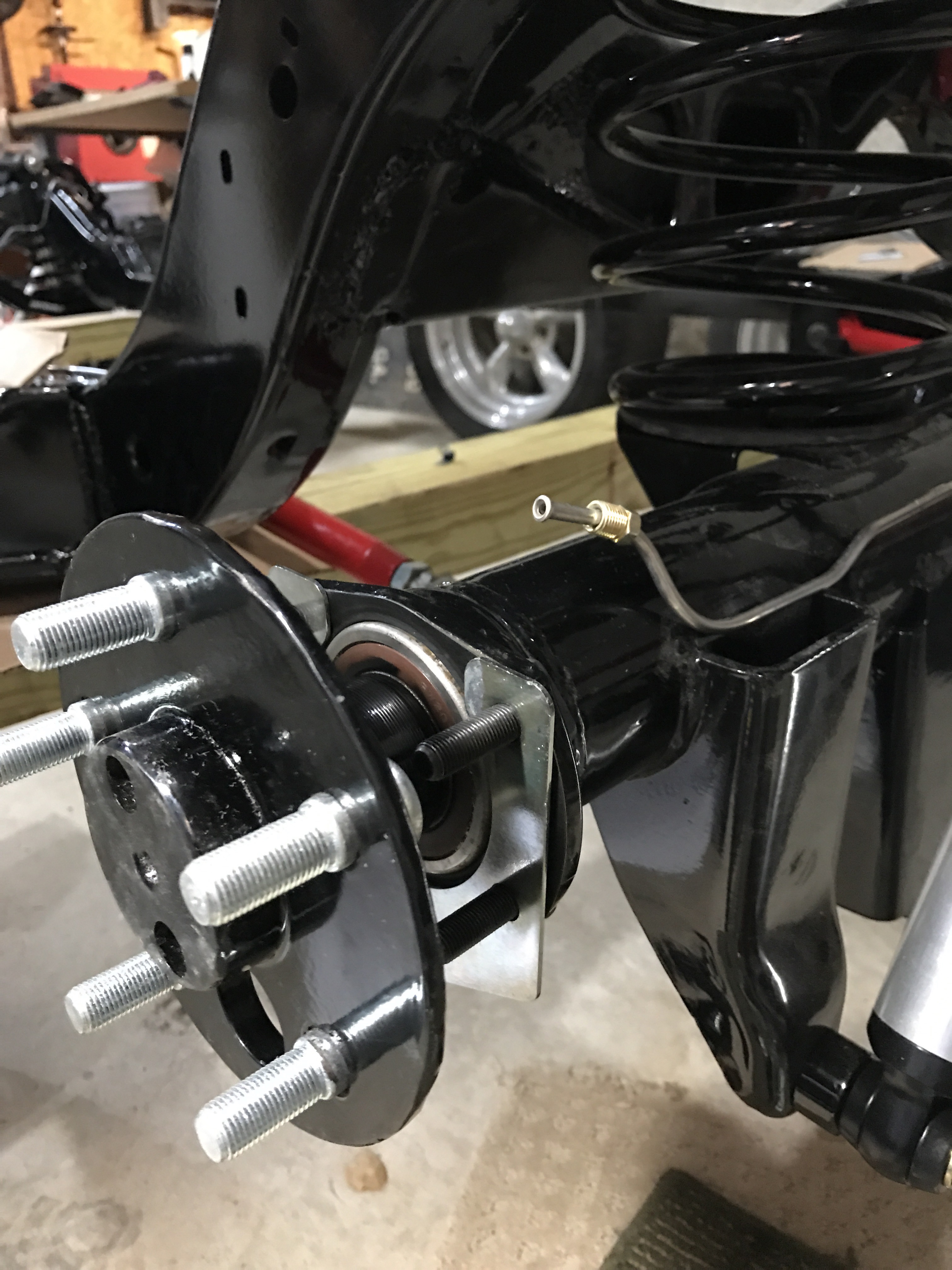

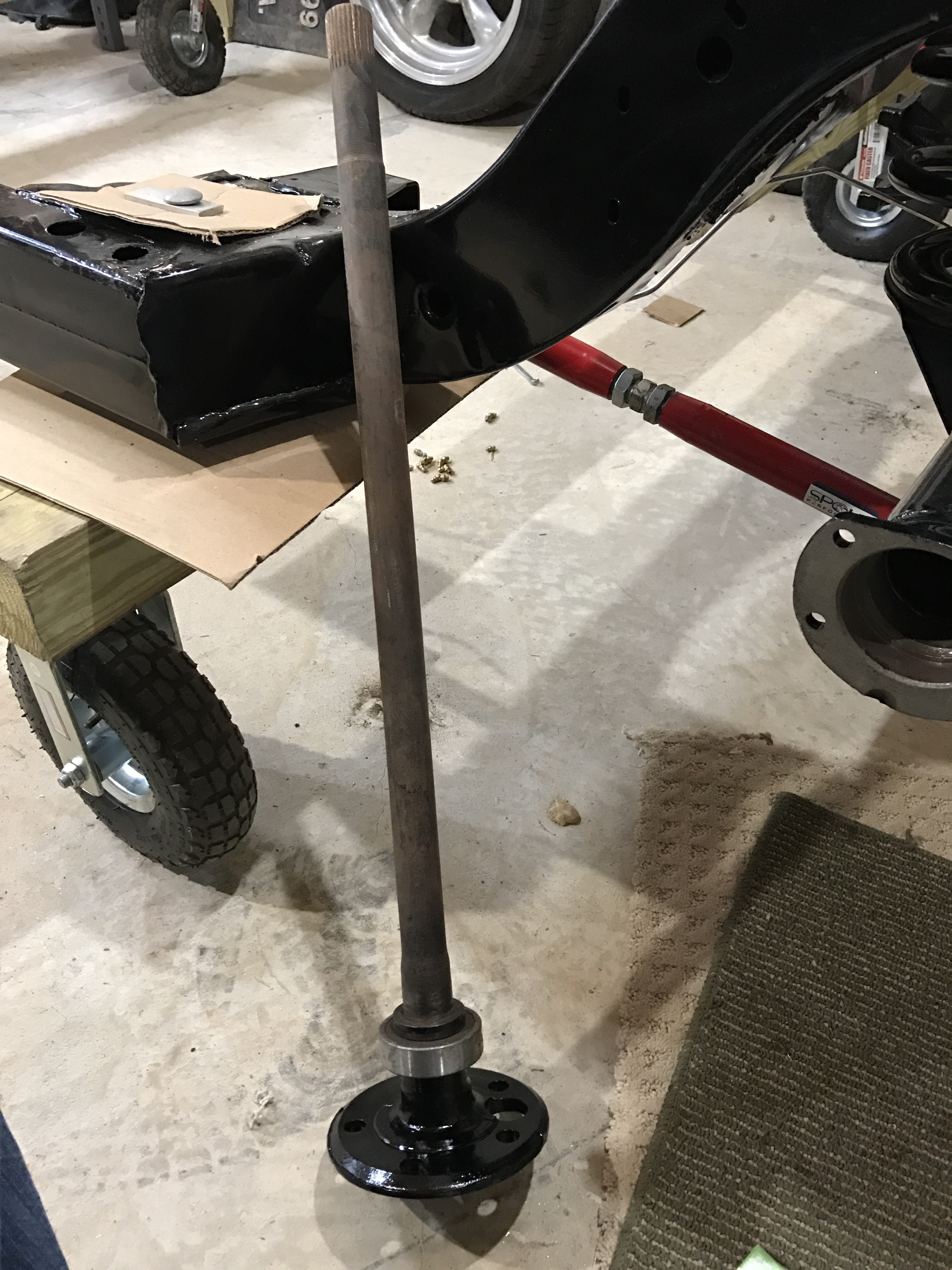

Axle, seal & gasket installed (installed new studs on axle too)

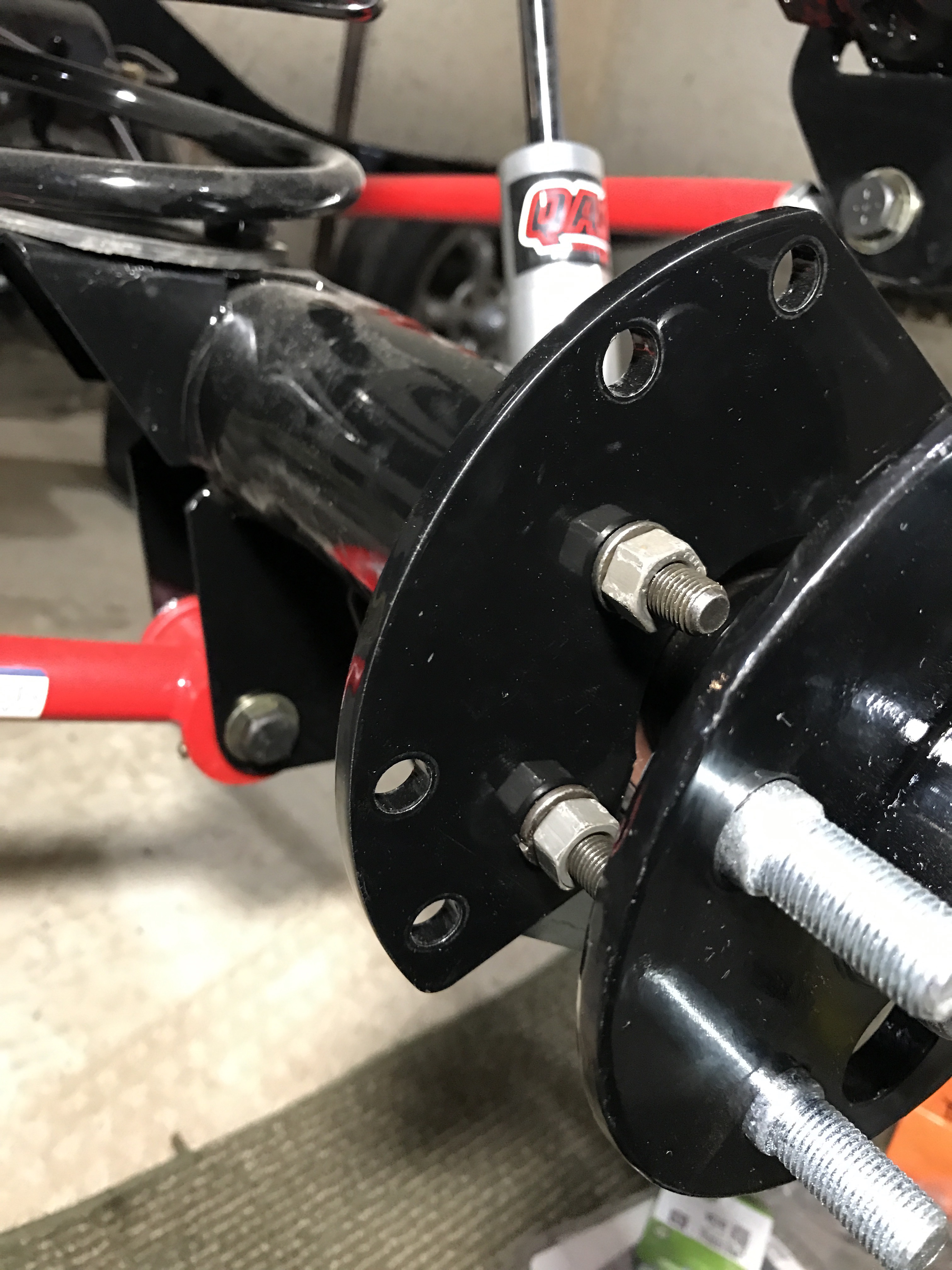

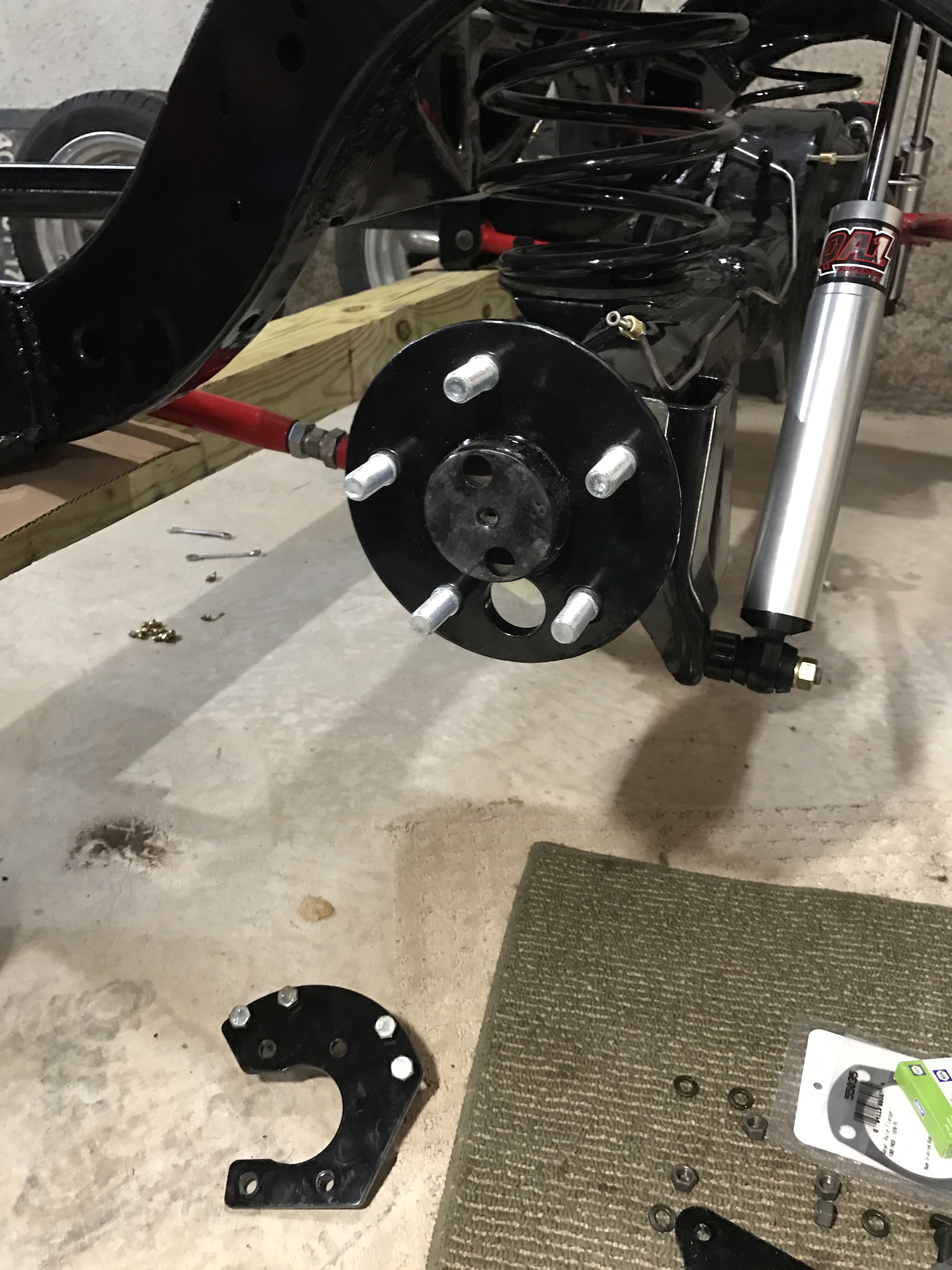

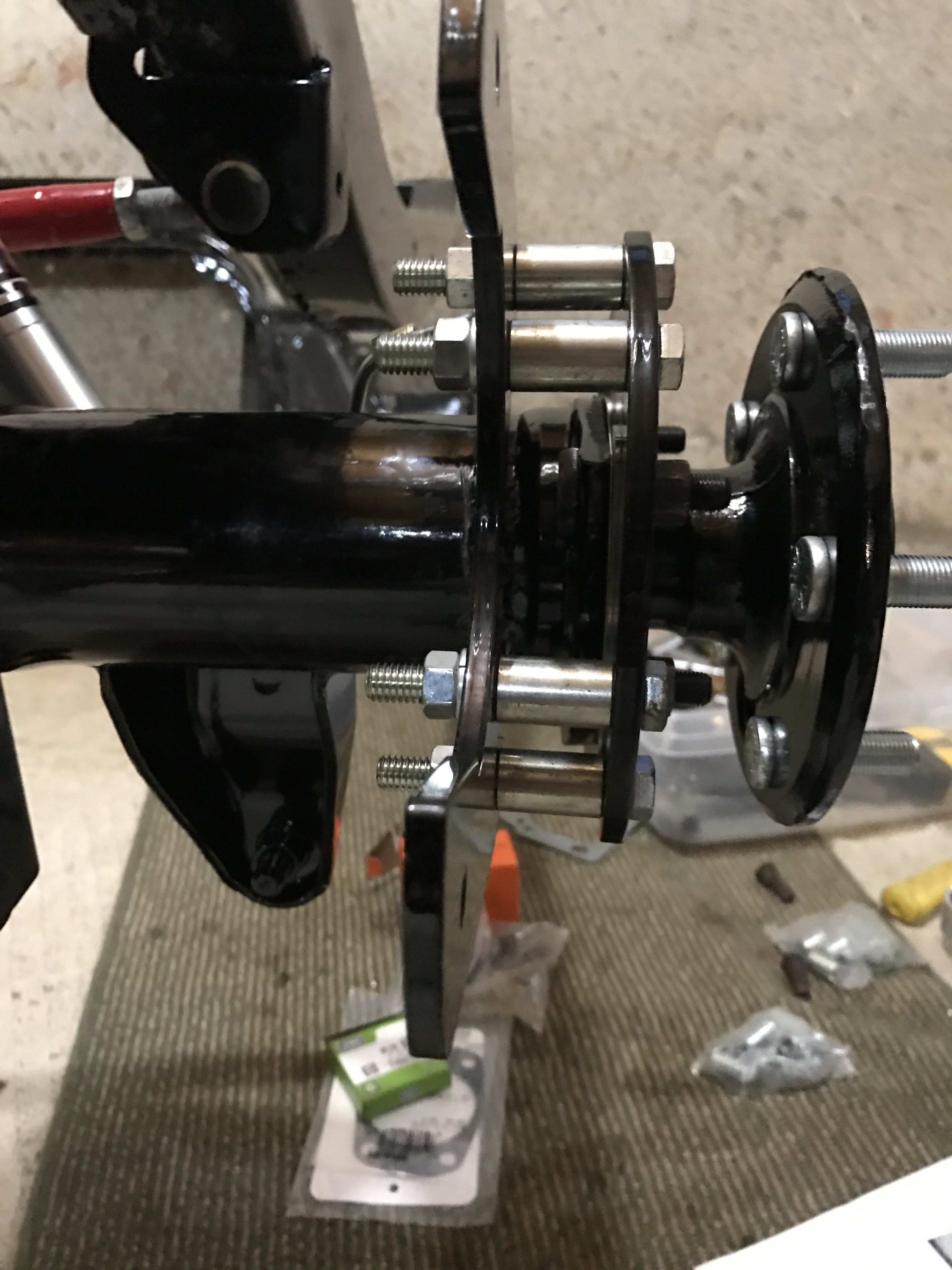

Spacer for bearing retainer plate/bracket installed

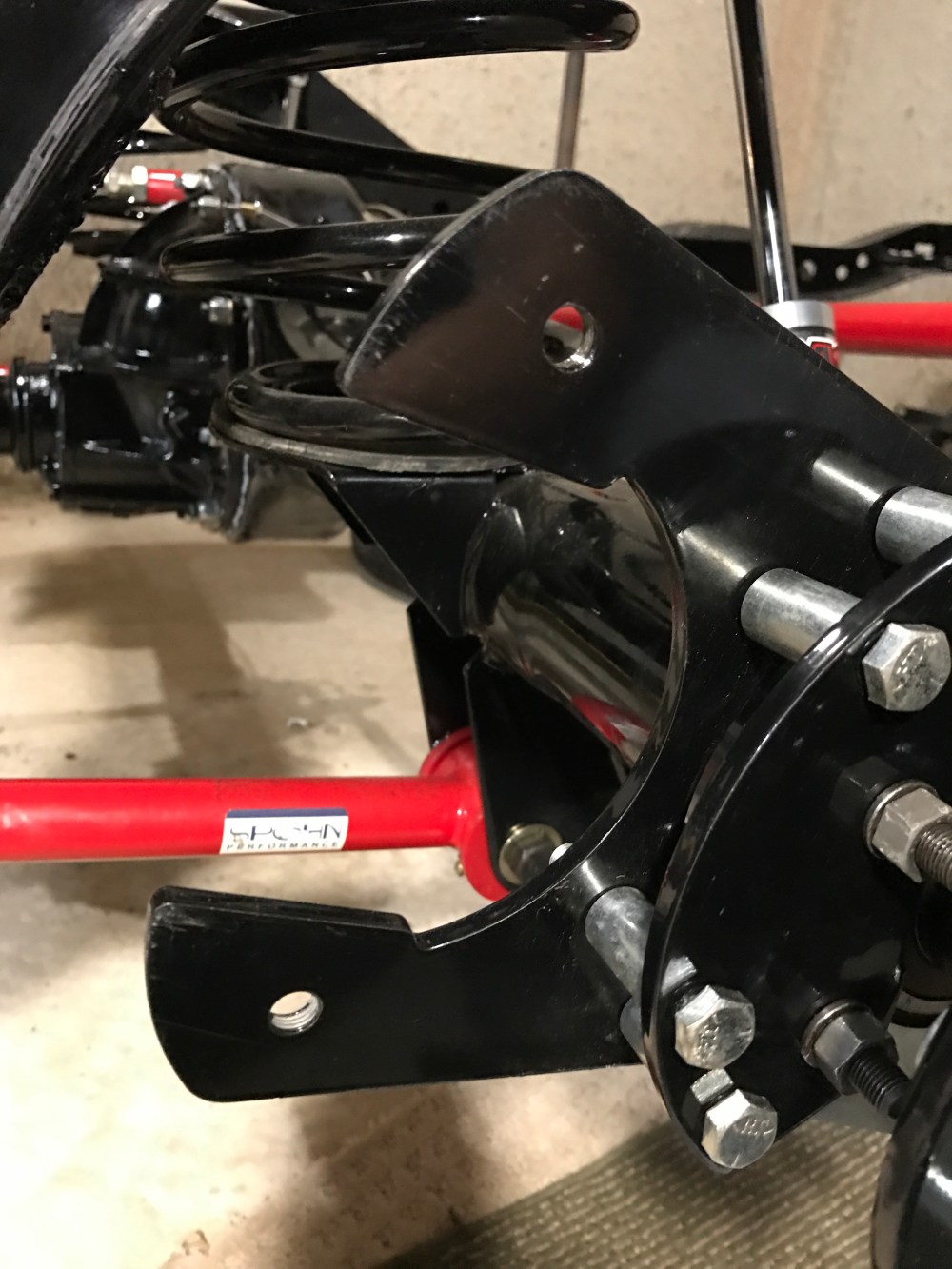

Bearing retainer plate / bracket installed (I had it powder coated)
Bracket #2 / caliper mount installed (I had it powder coateded too)

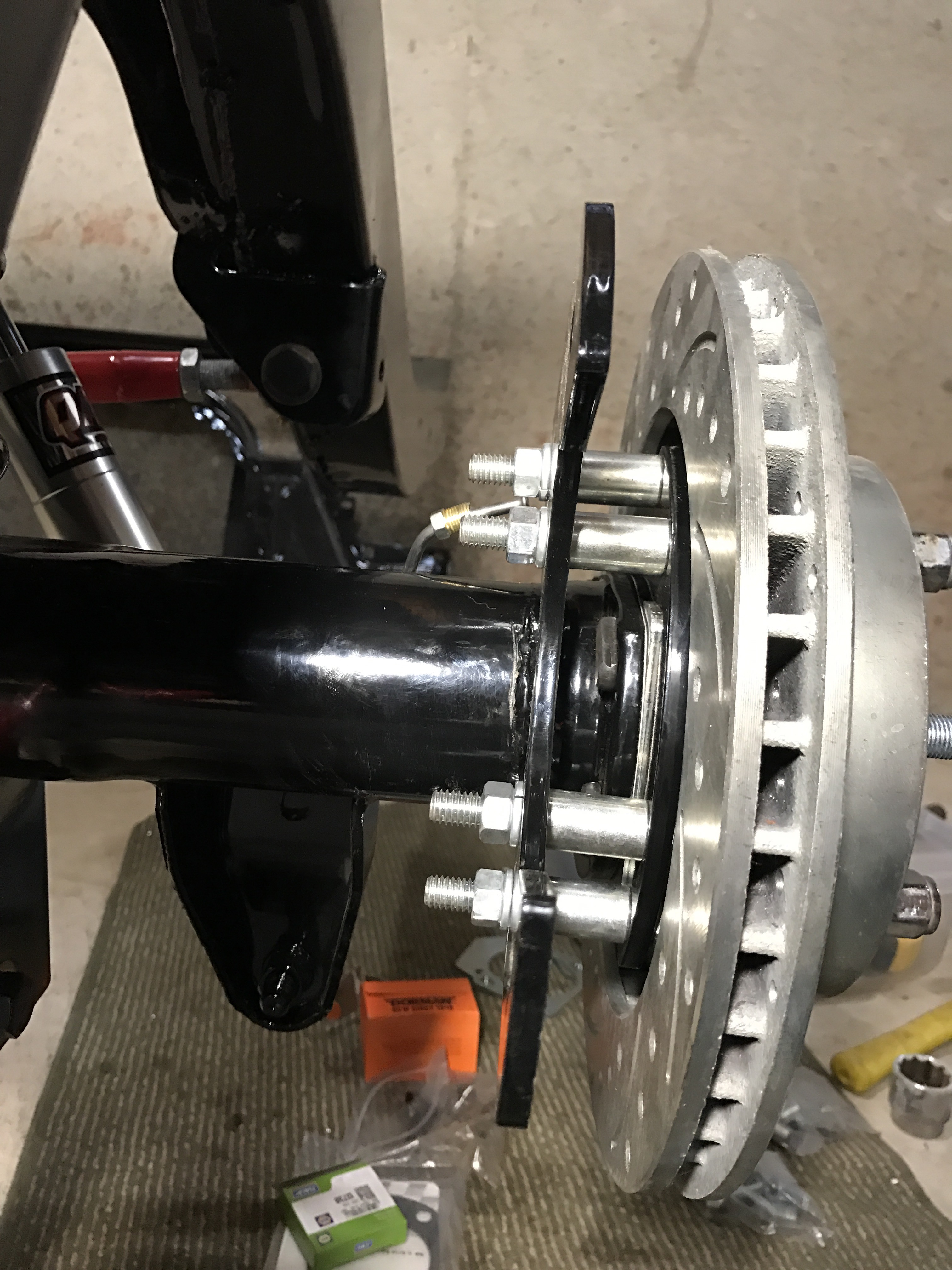

Rotor installed

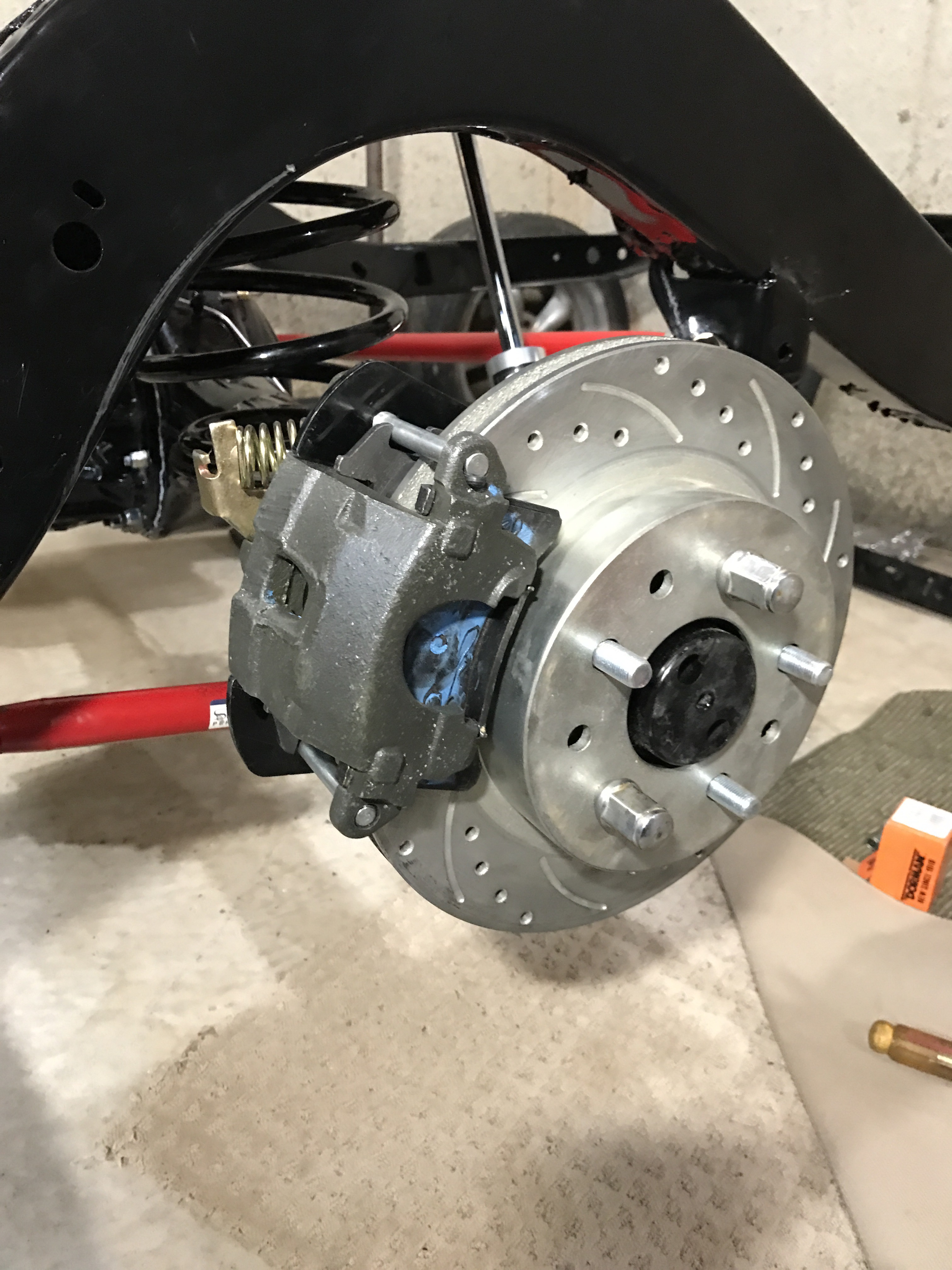

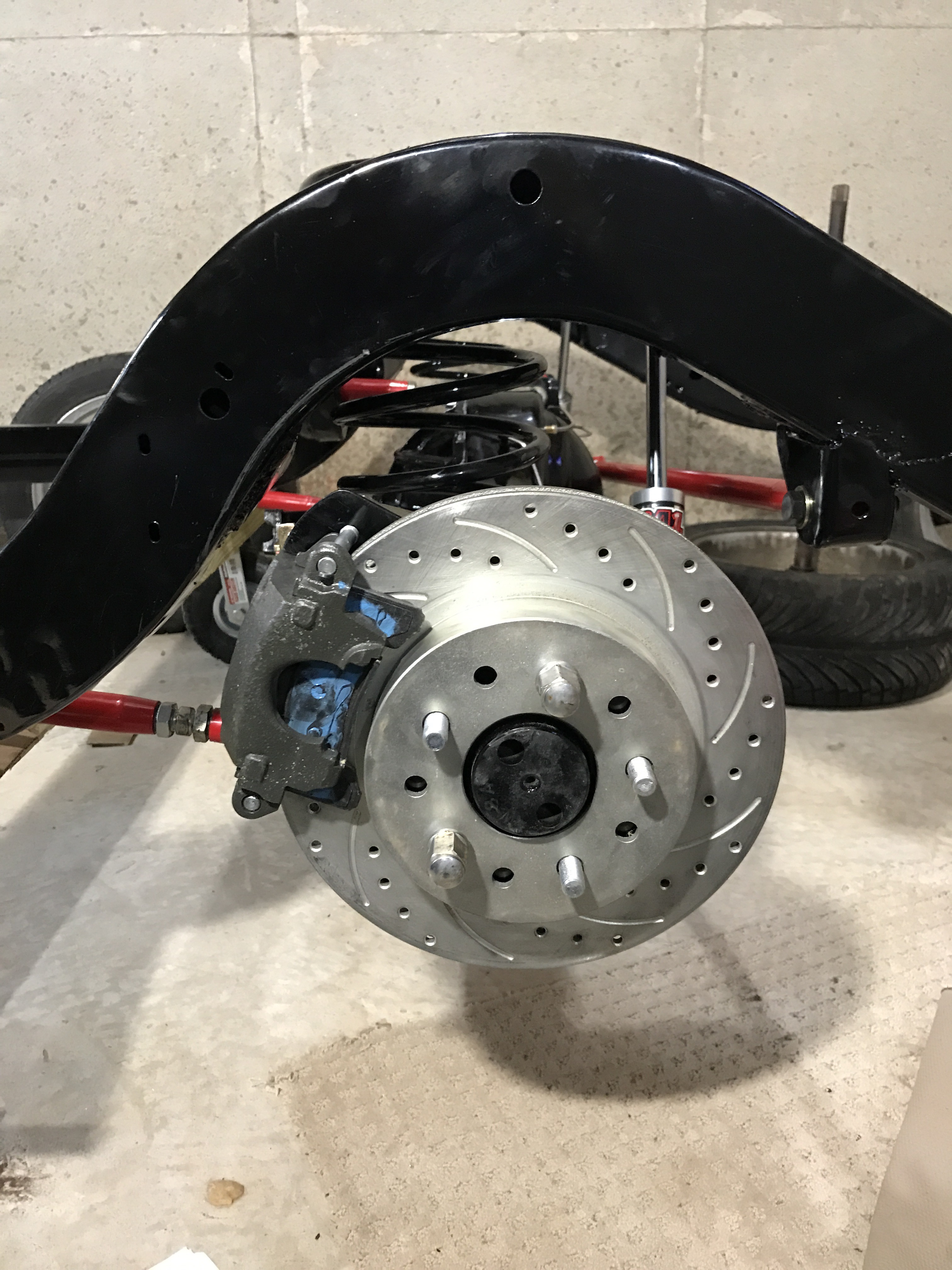

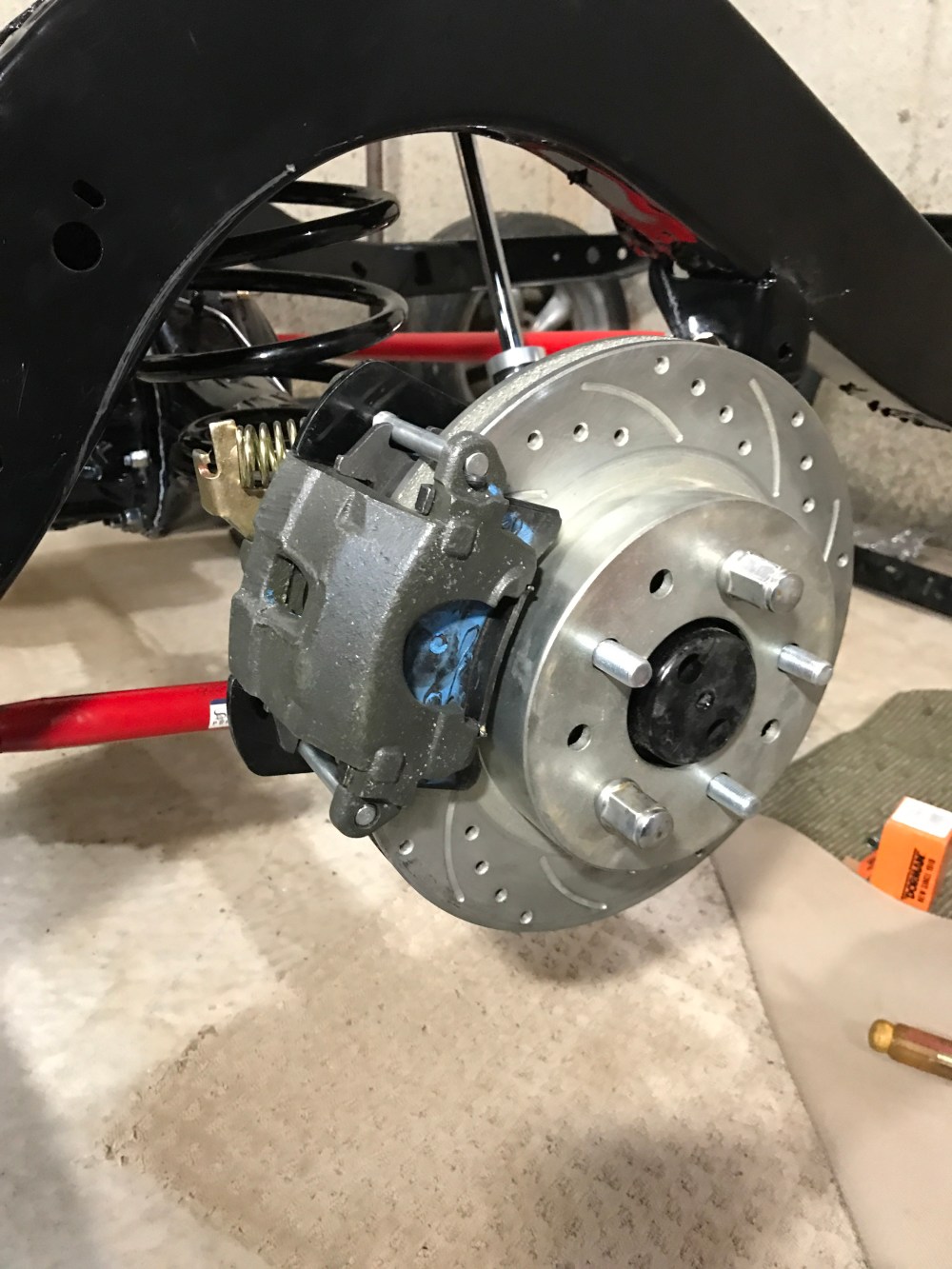

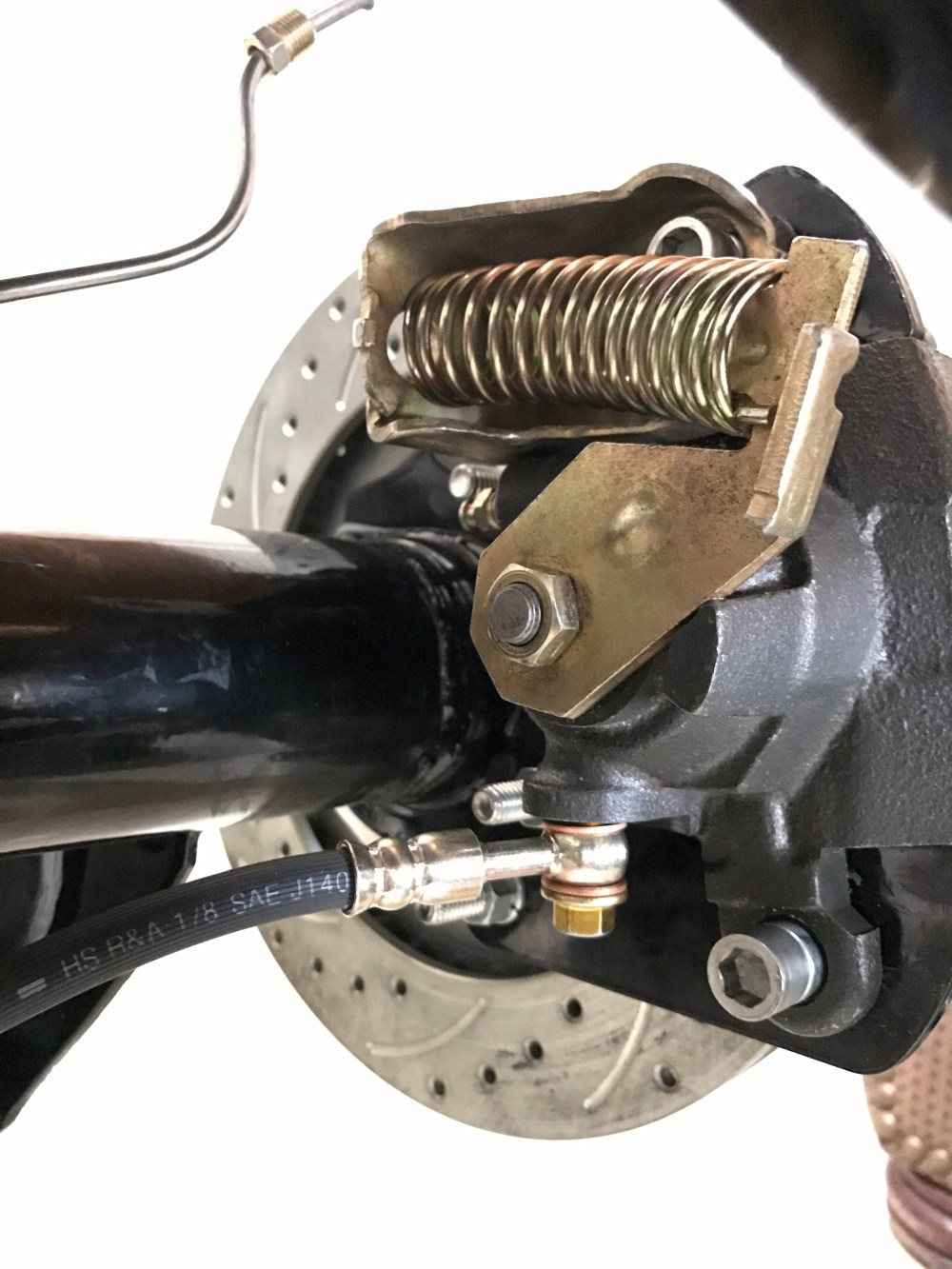

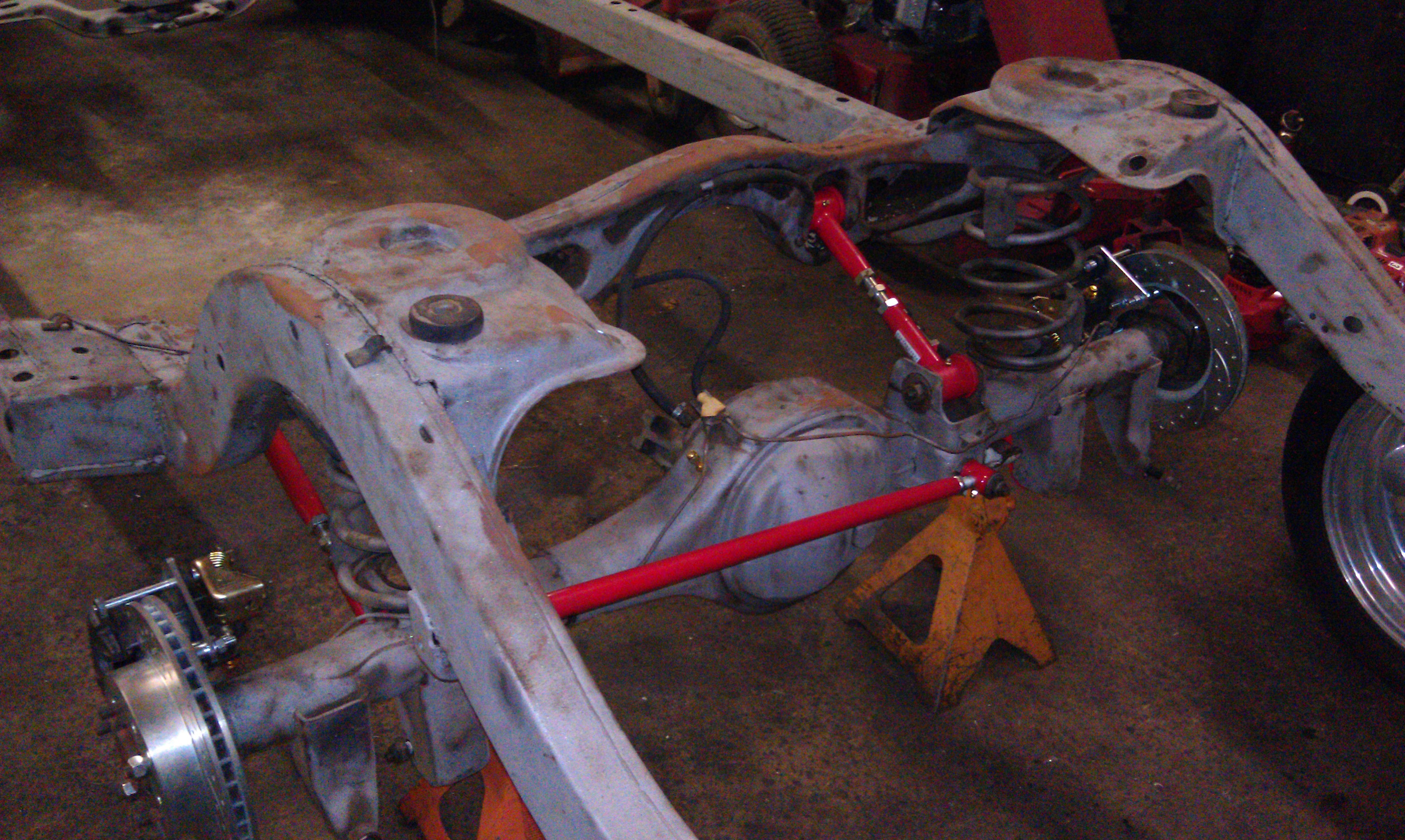

Caliper installed

(the blue stuff is brake pad anti-squeak grease)

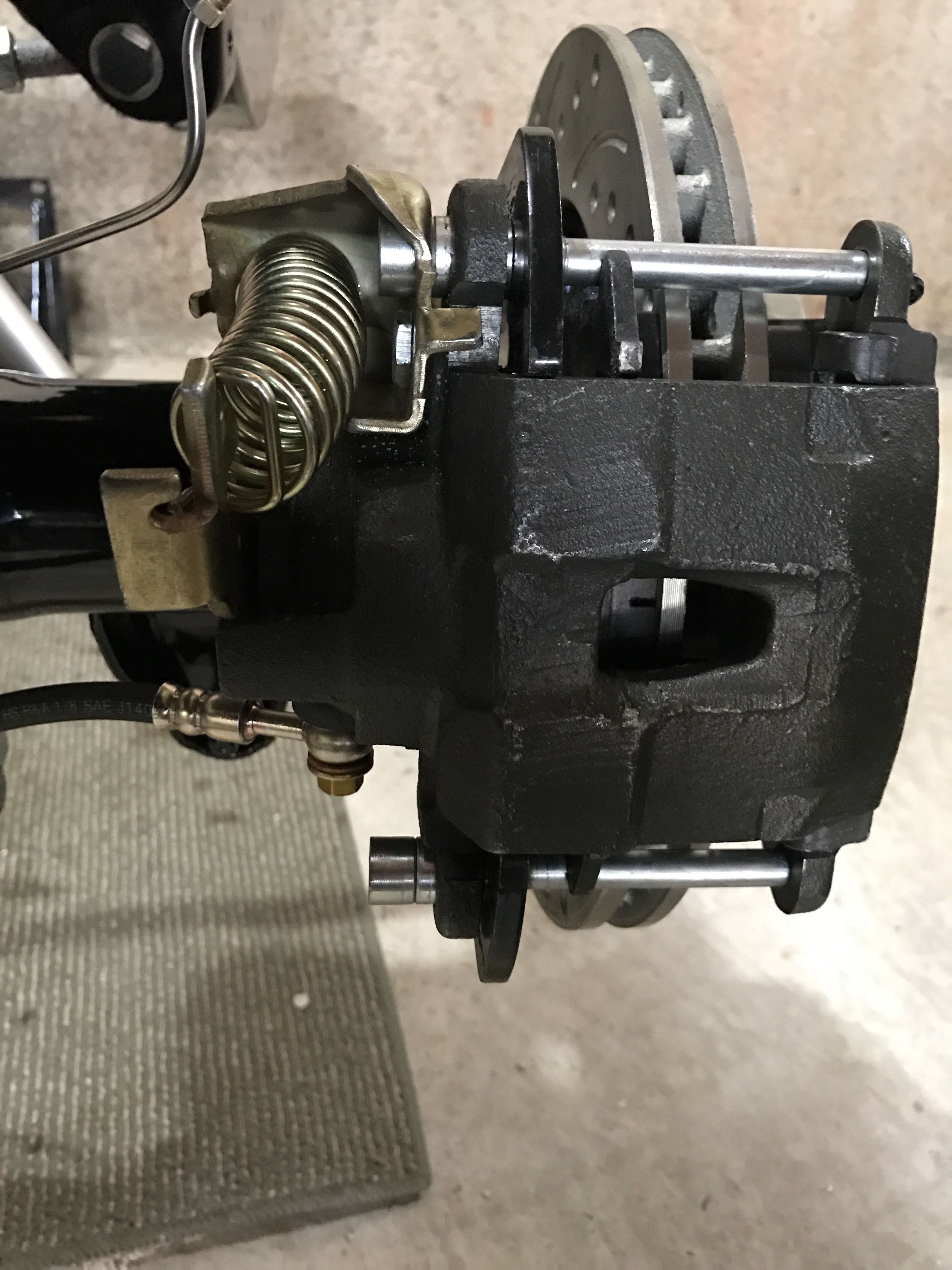

The spring is part of the built in parking brake

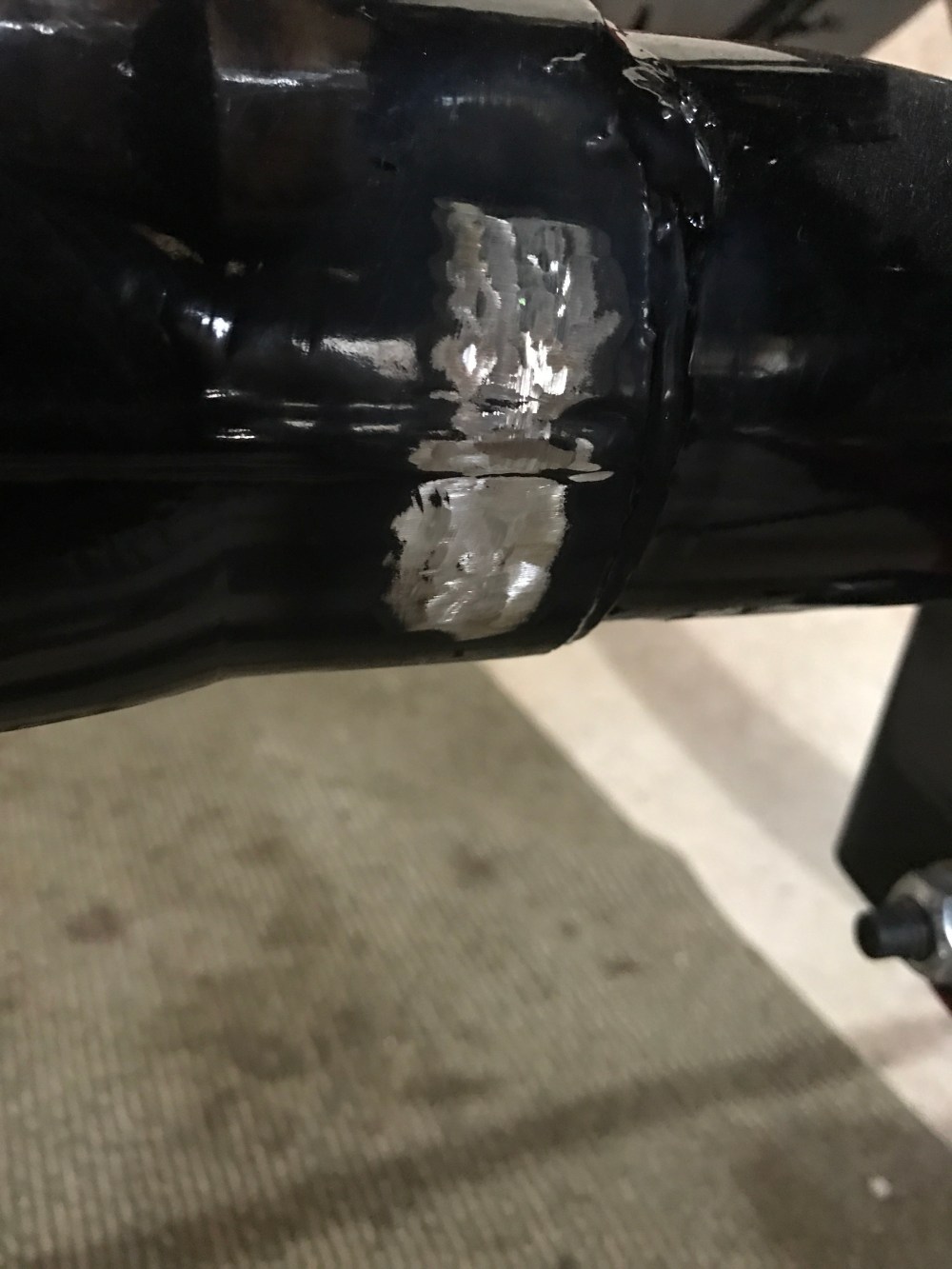

Grinding a spot to weld on the bracket line bracket

Brake line bracket

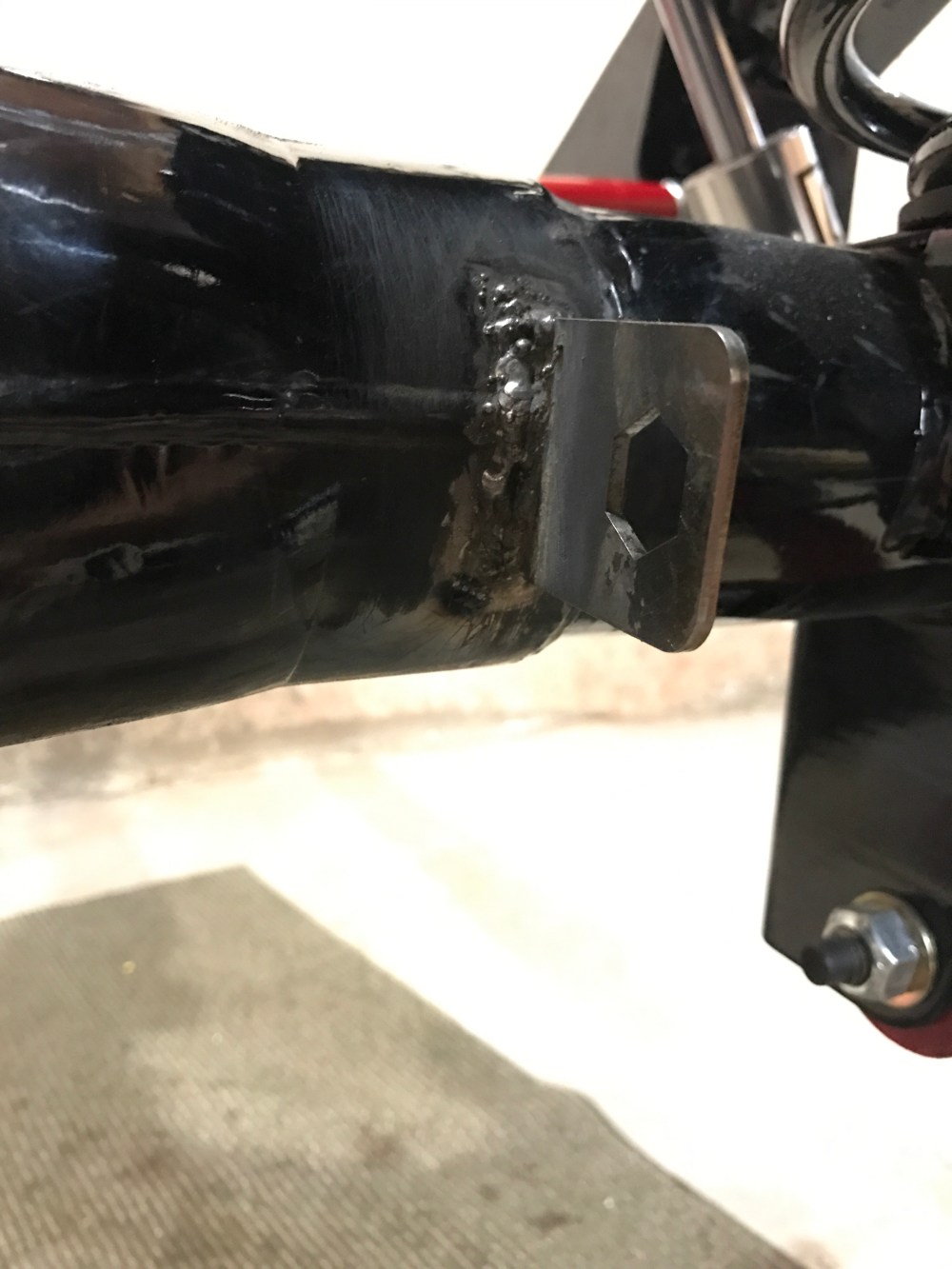

Welded on (best I could do with the cheap homeowners edition welder I have)

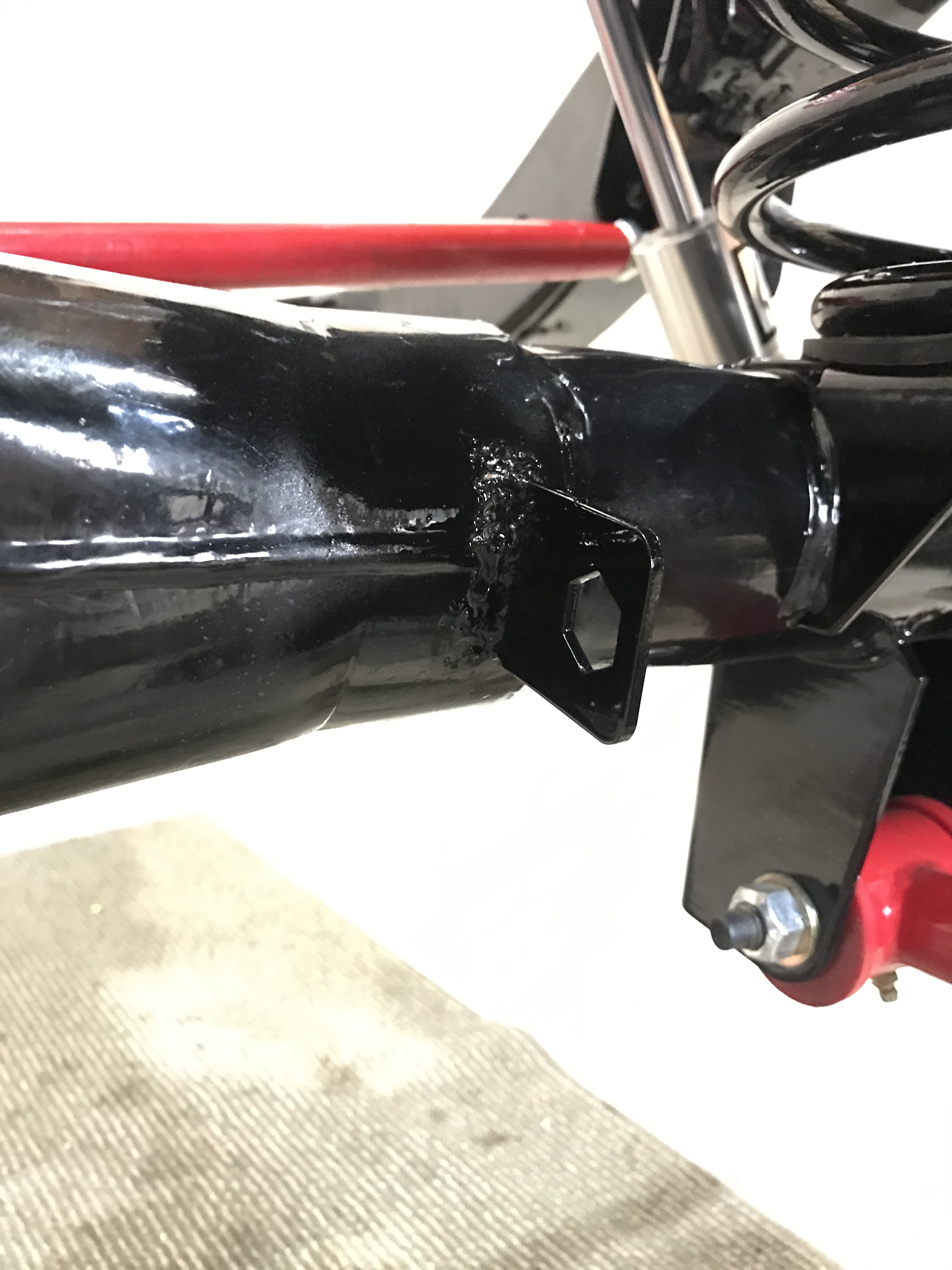

Painted

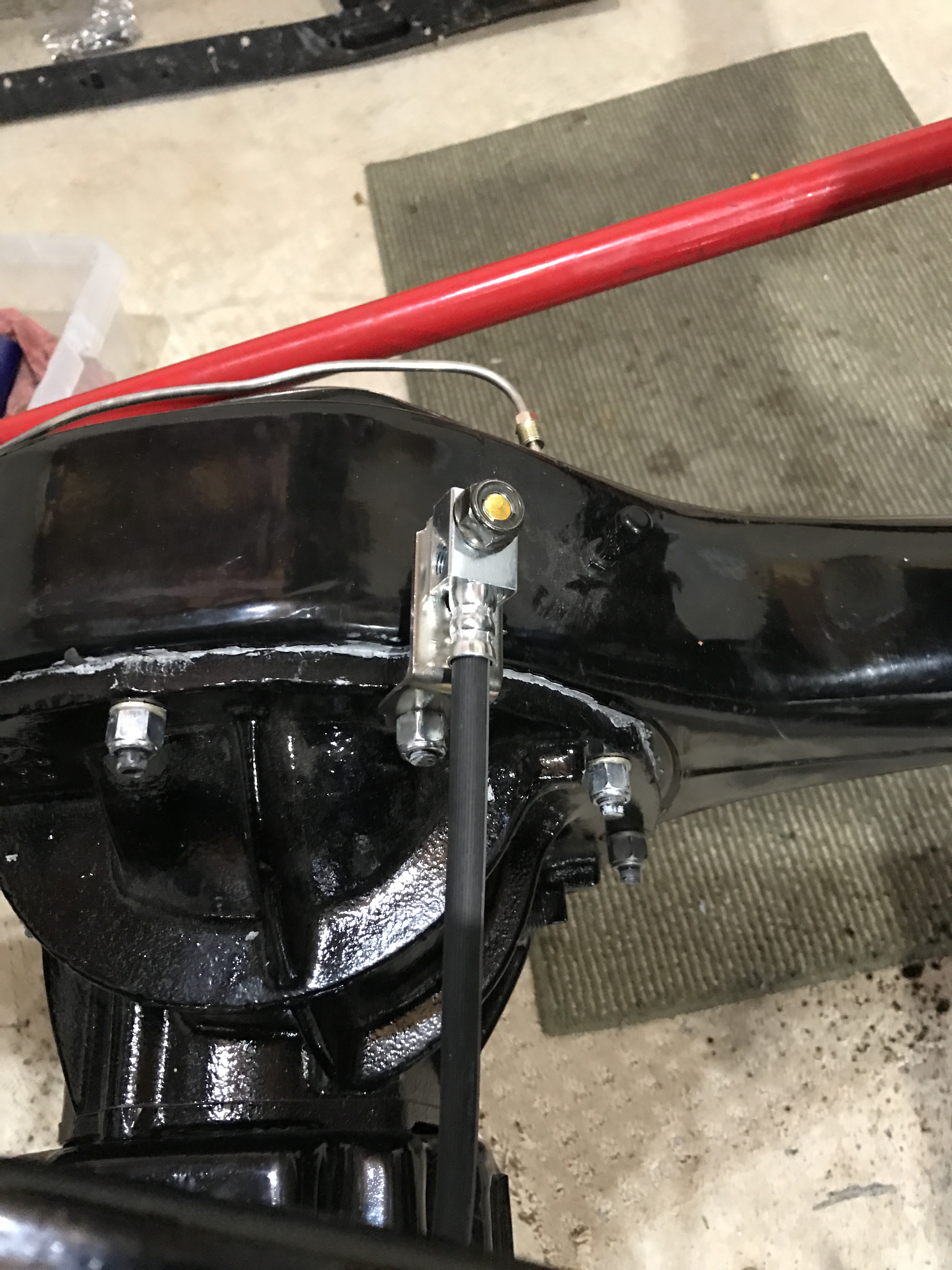

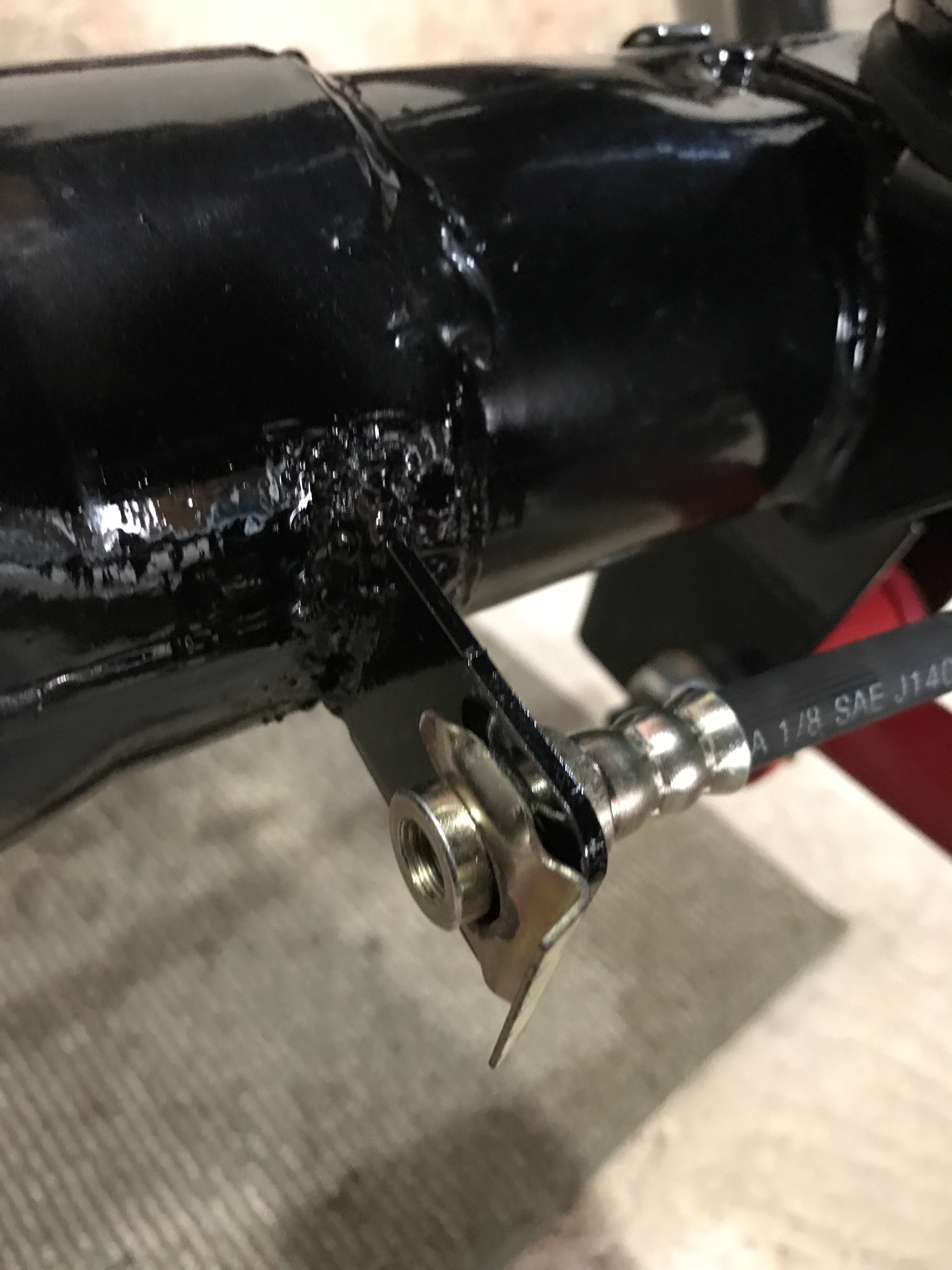

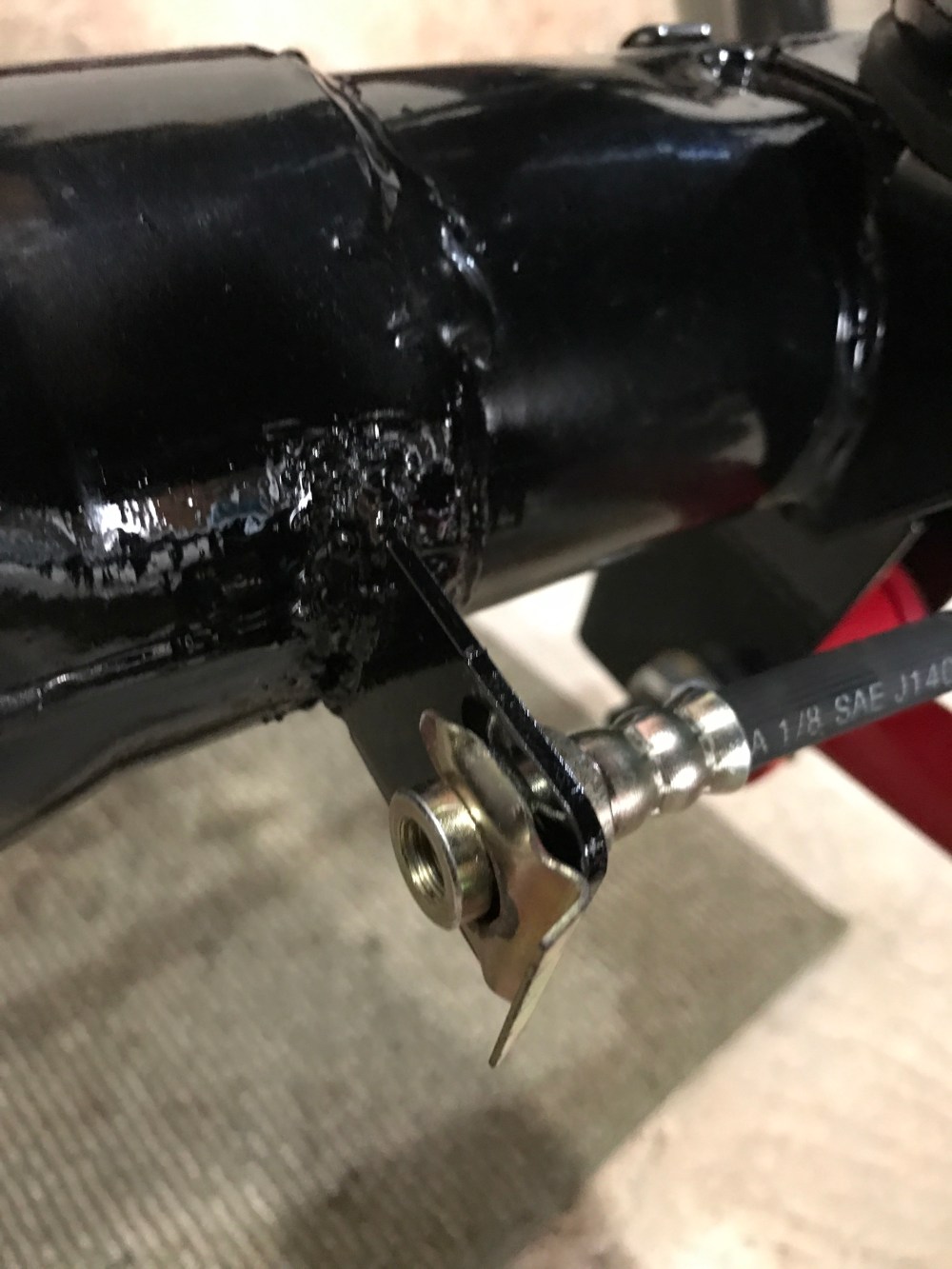

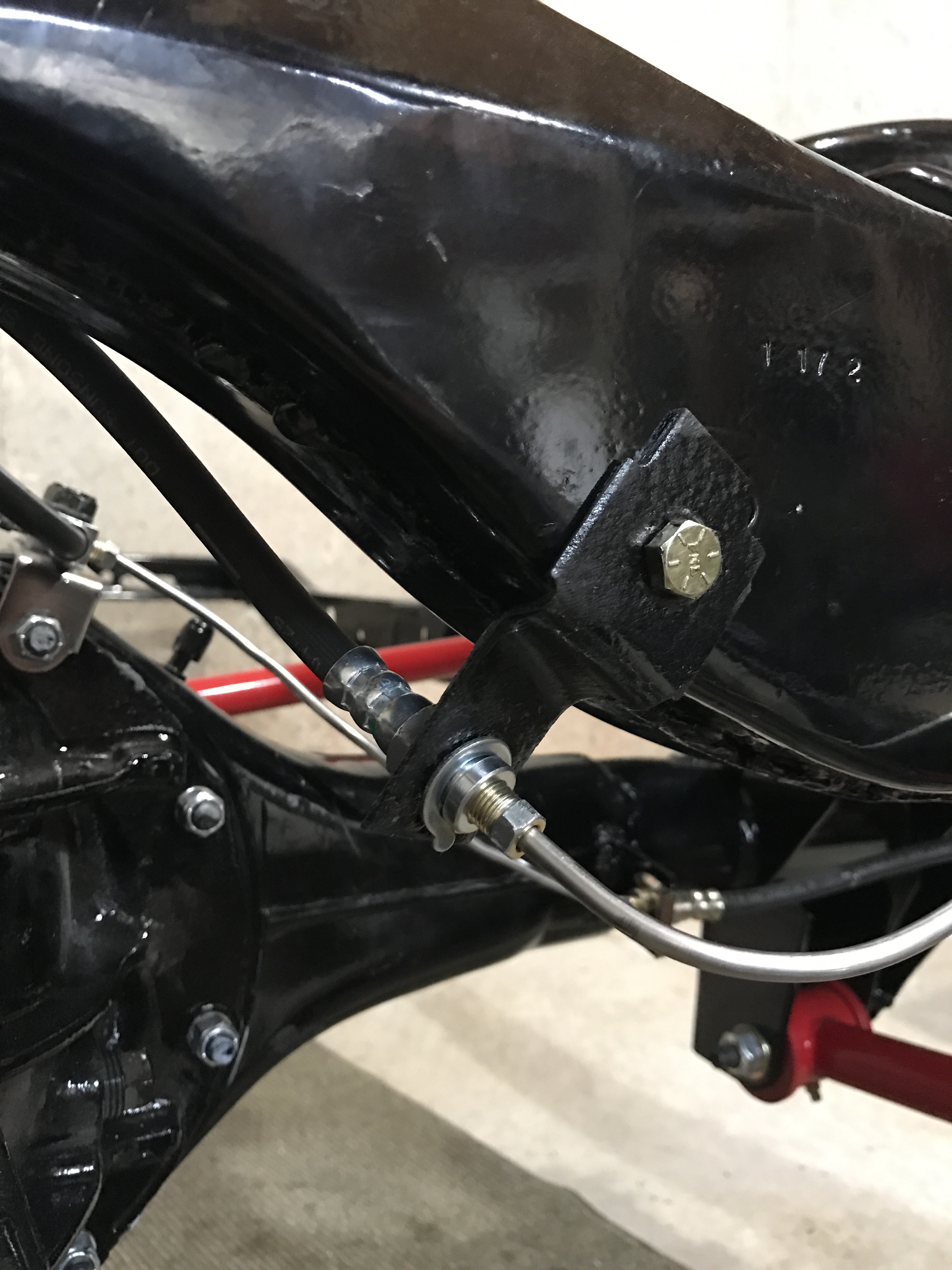

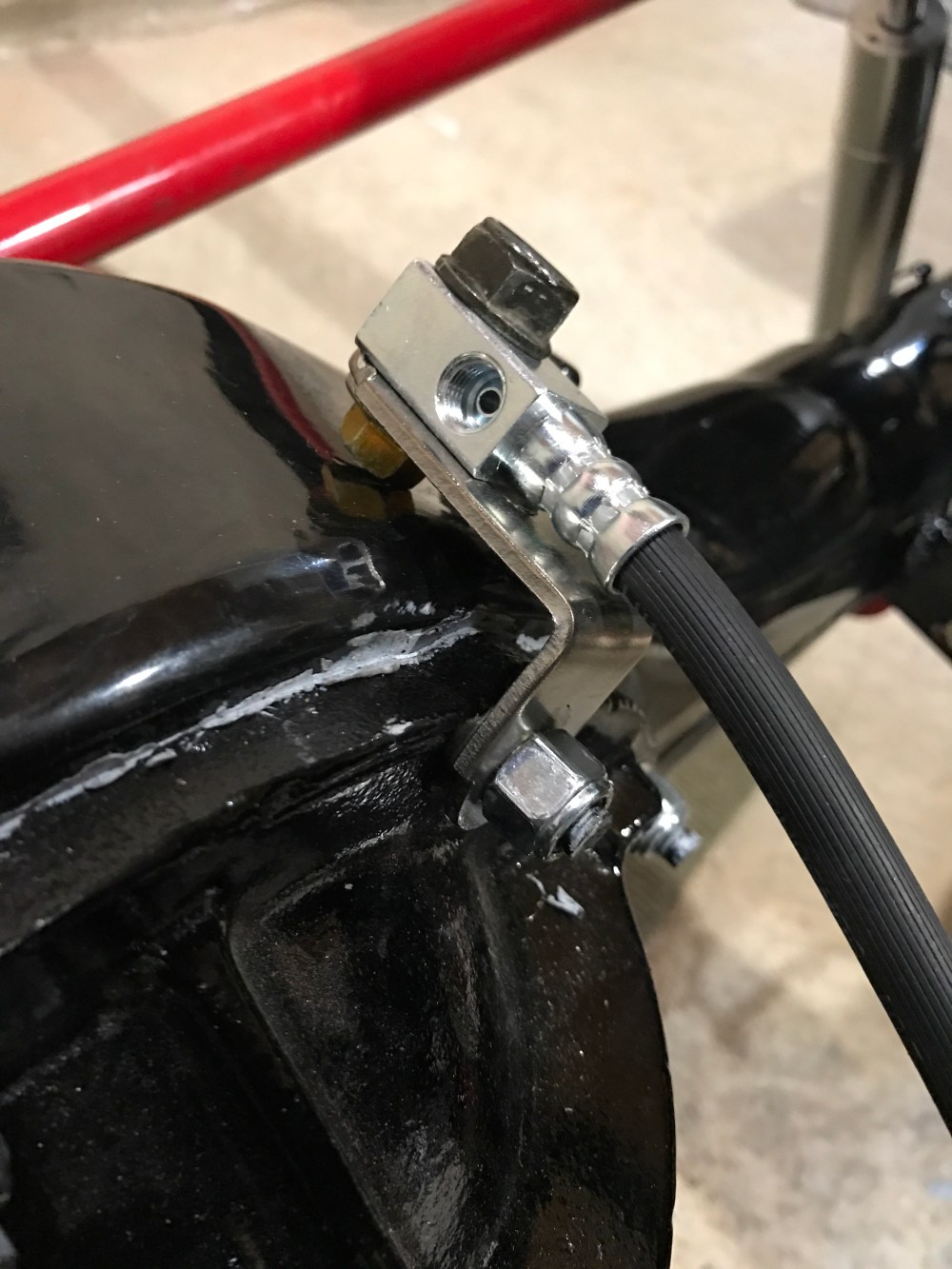

Brake line connected to the bracket

Rear brake hose “T” used @ rear ended split

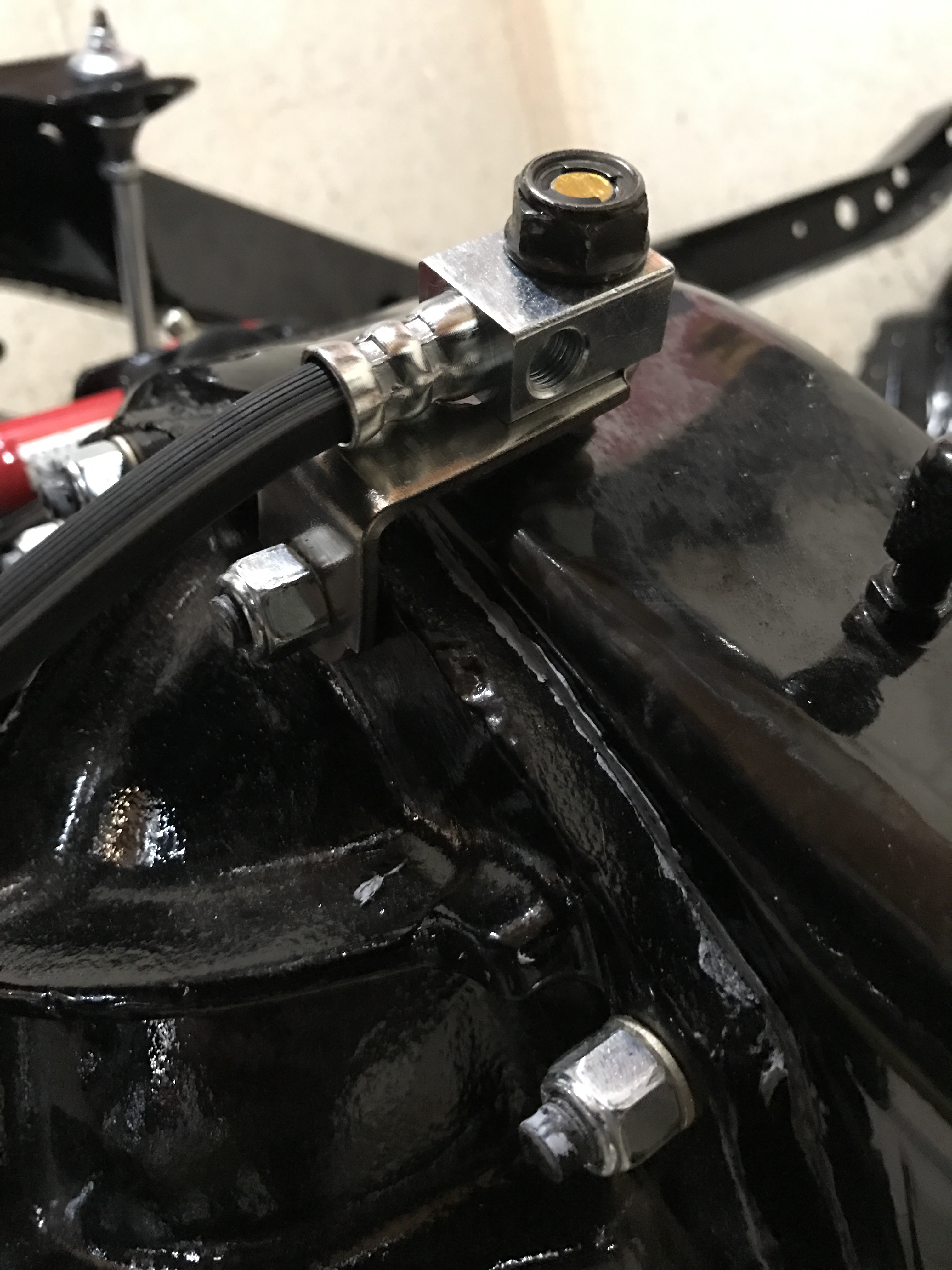

Mirror bracket I used to mount the “T” split

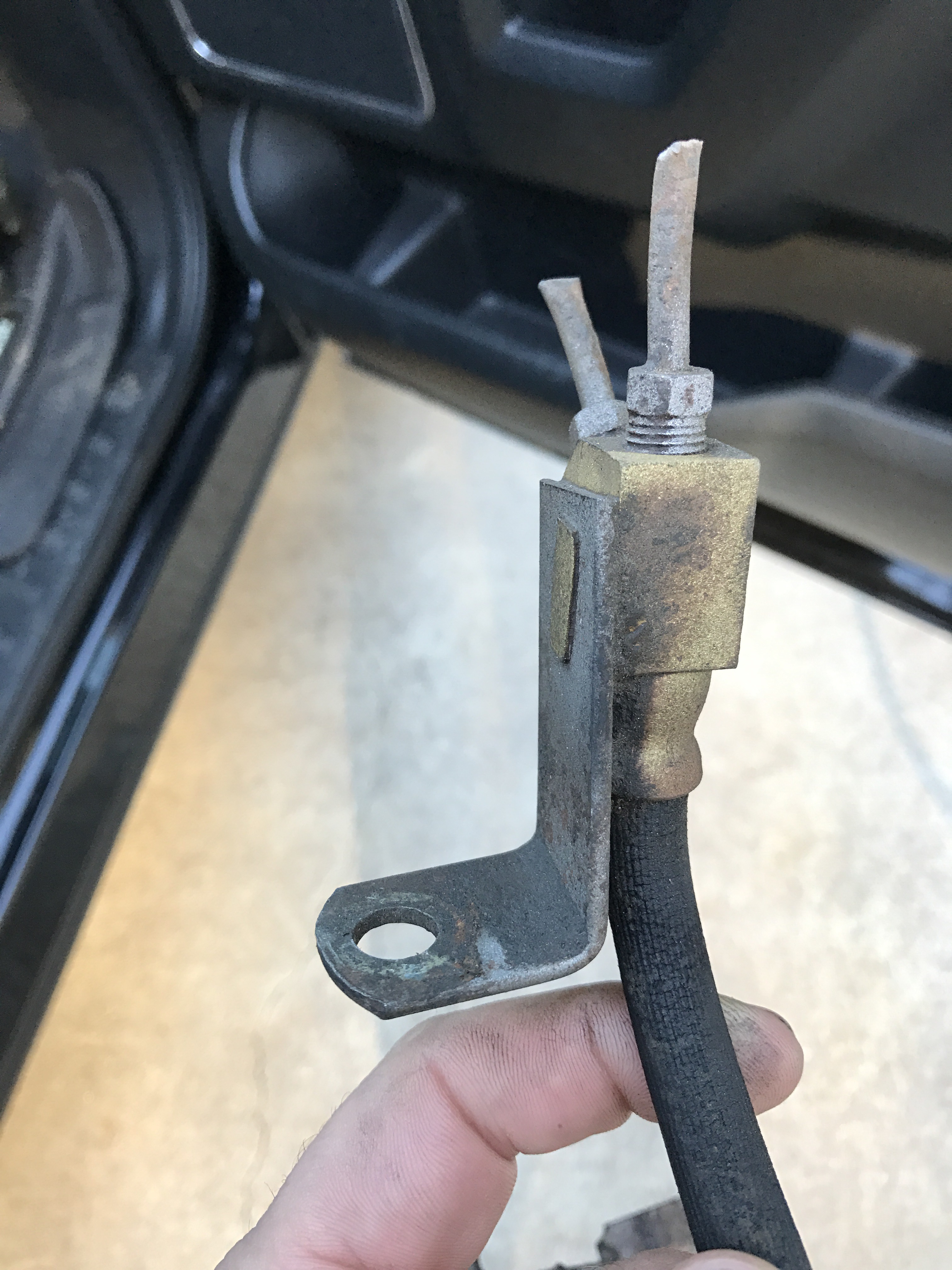

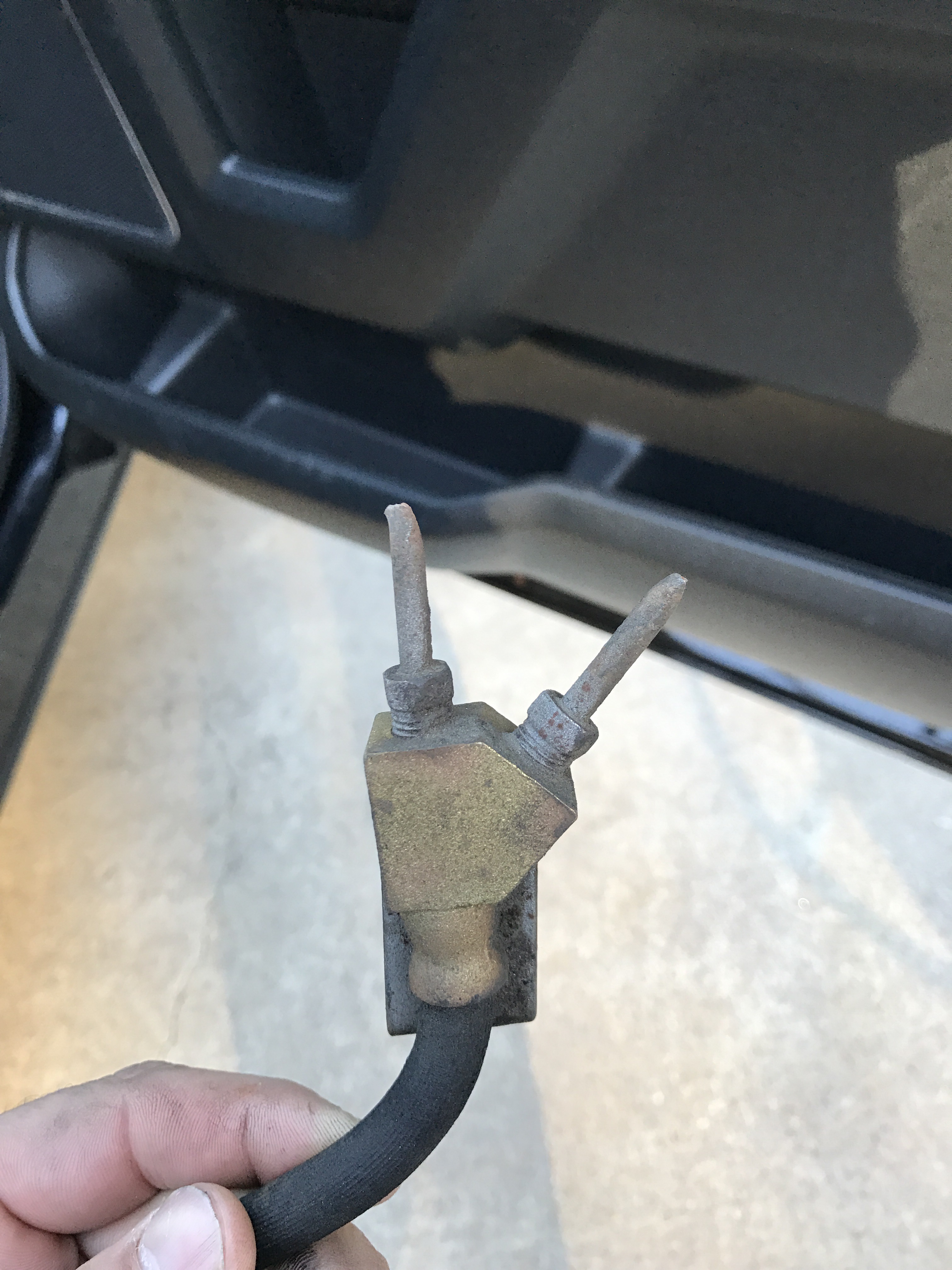

The old factory split

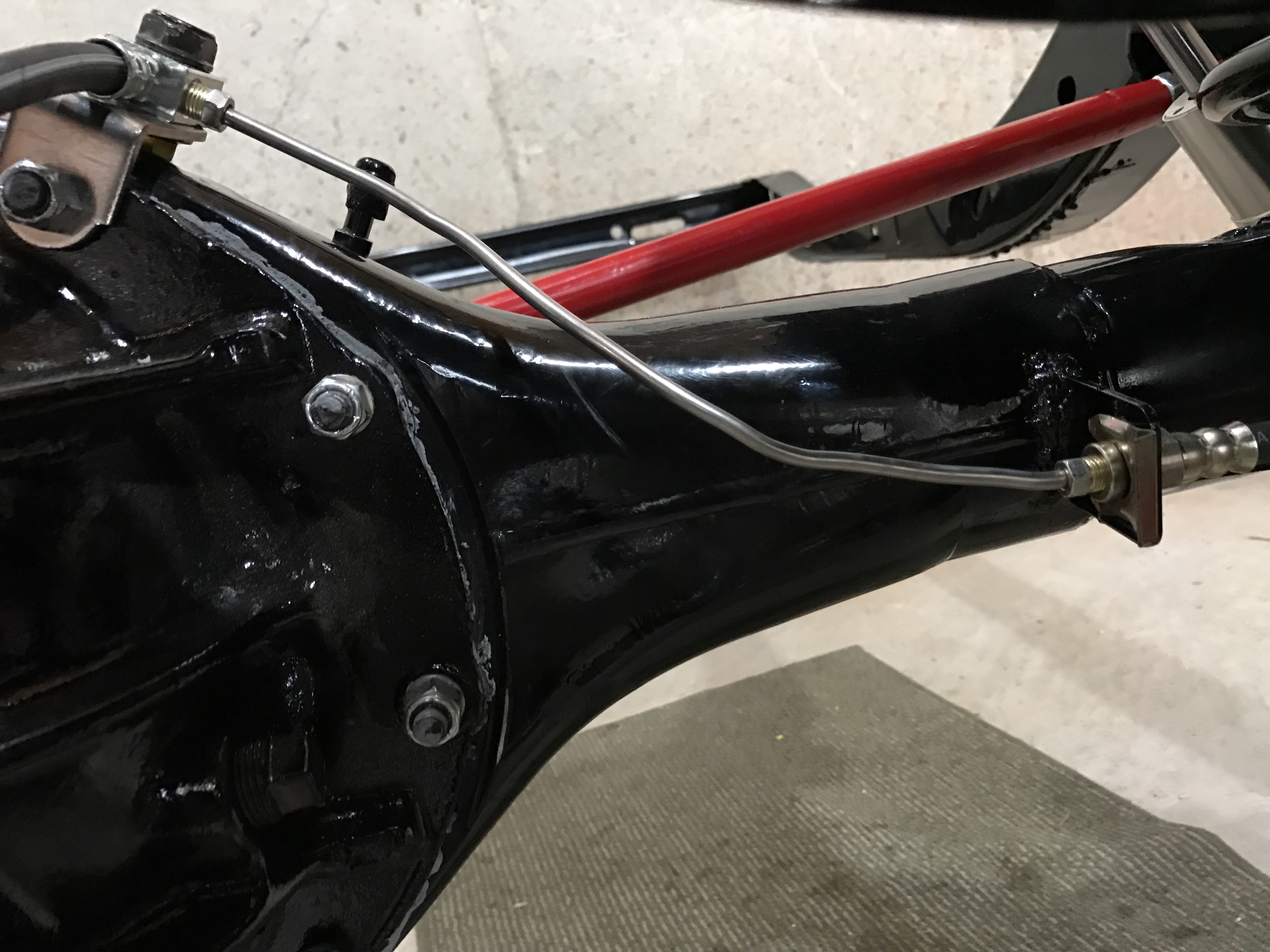

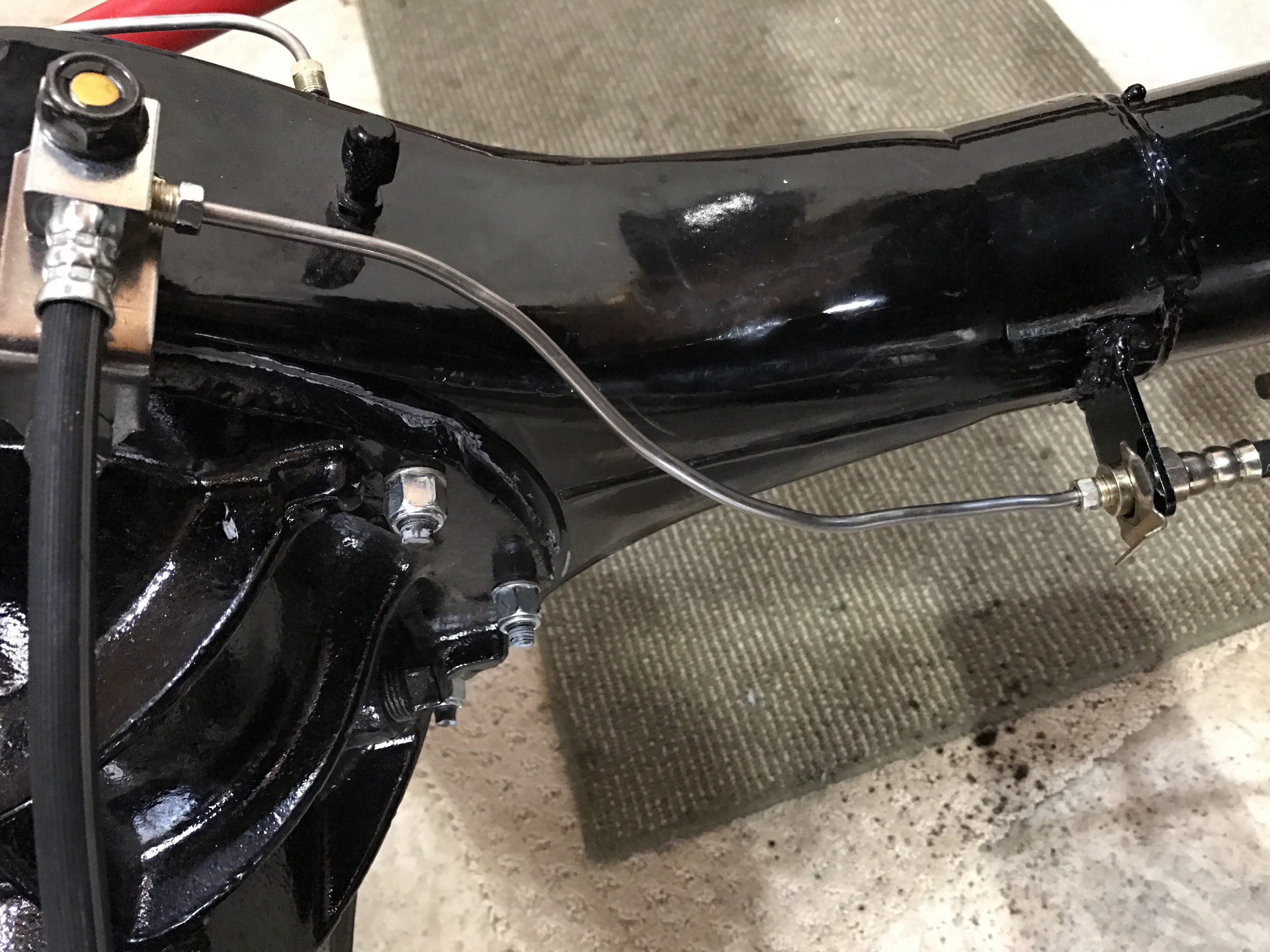

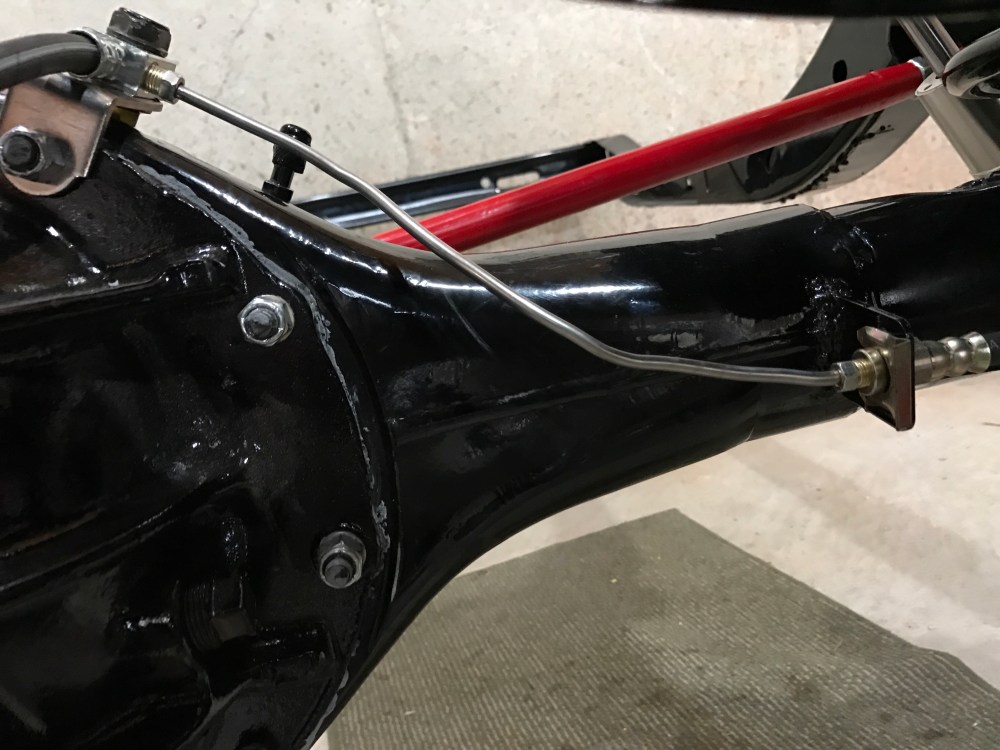

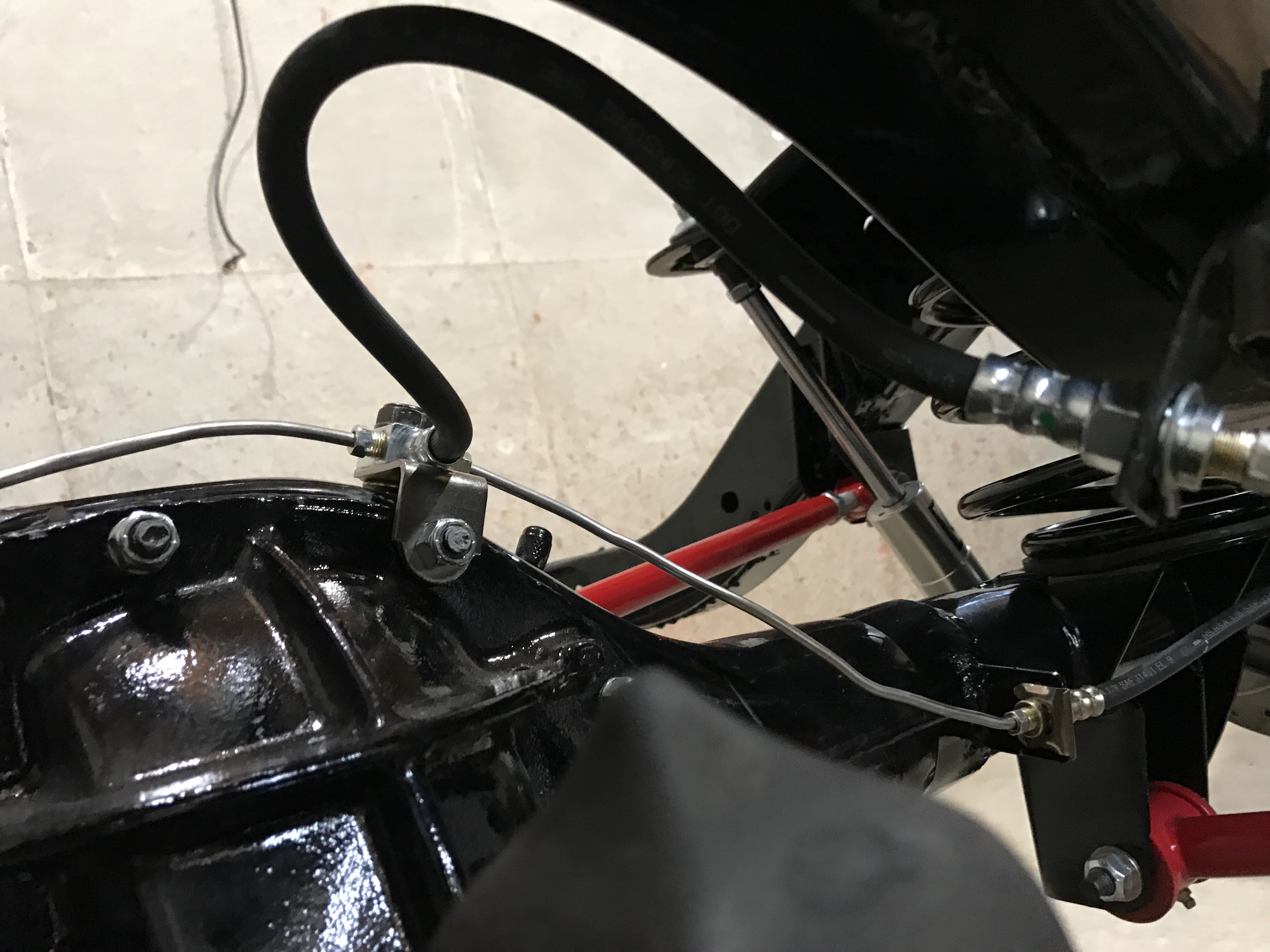

Connected rear brake lines to “T” junction

Factory brake line bracket

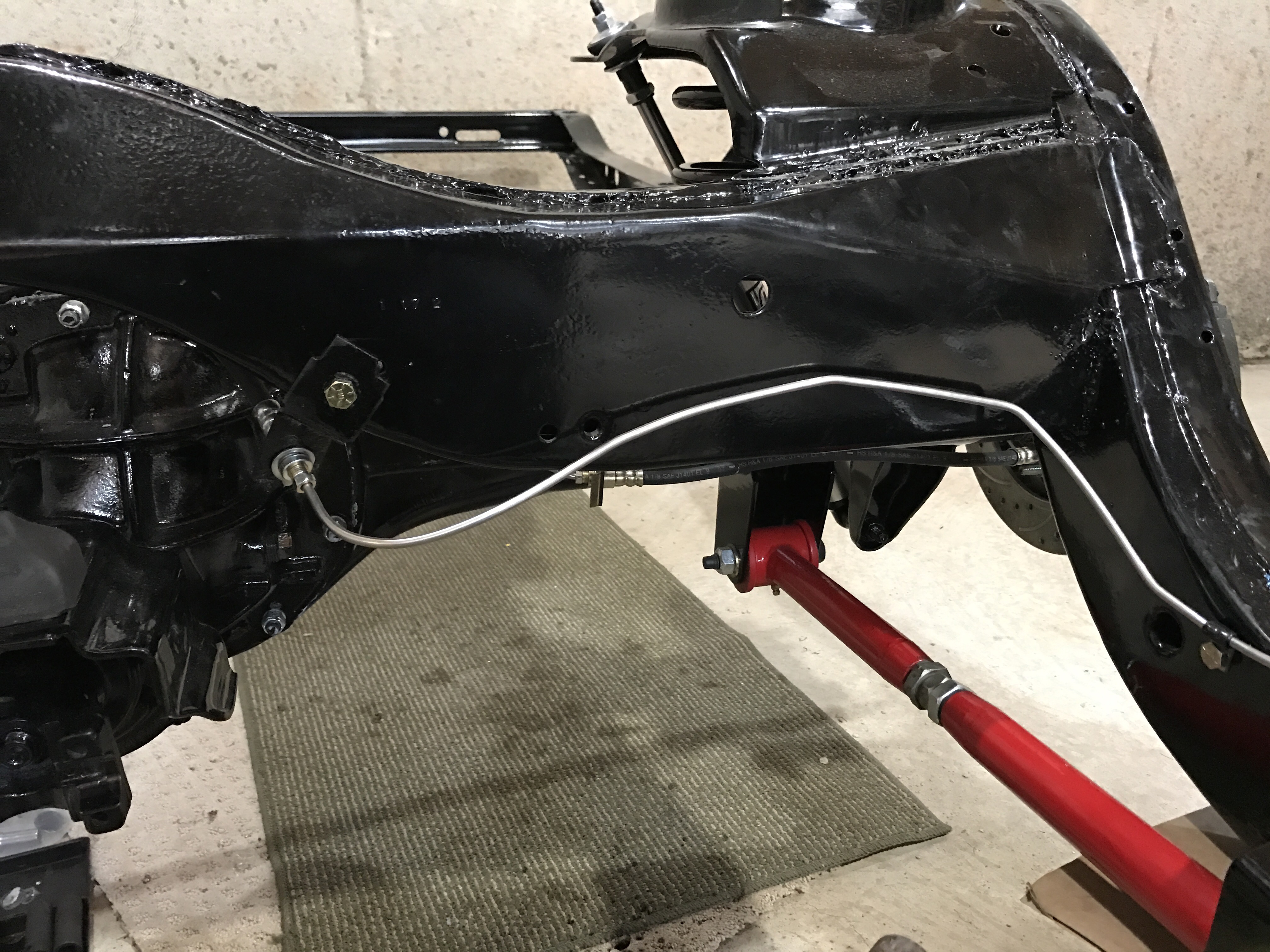

Rubber brake line connecting frame to rear end

Line coming from front to rear
